Vacuum filter system MK Series

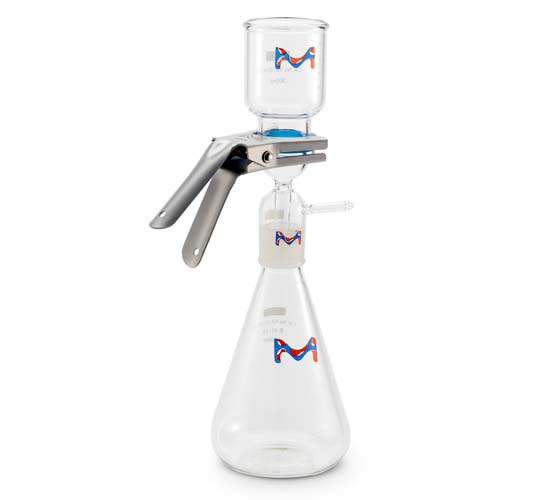

All-Glass Filter Holders - Kit Ø 47 mm, Glass frit membrane support, 300 mL Funnel
This All-Glass Filter Holder was designed for the filtration or aqueous and organic or corrosive liquids for particulate contamination analysis.
The holder can also be used for HPLC solvent preparation.
The vacuum connection is integrated into the filter holder base and flask cap, above the filtrate exit level.
With this design, you can avoid unintentionally drawing filtrate into vacuum tubing. This design also allows simple transfer of filtrate (i.e., HPLC solvents) by pouring from the receiver flask.
Features & Benefits
- All-Glass construction has broad chemical compatibility
- Borosilicate glass parts contact liquid, with ground-glass sealing surfaces
- Vacuum connection to flask cap simplifies transfer of filtrate
Applications
Particle Contamination Analysis, HPLC Solvent Filtration, General Filtration and Clarification
Technical specifications
| Code |
Description |
Qty |
| MK/XX/1504700 |

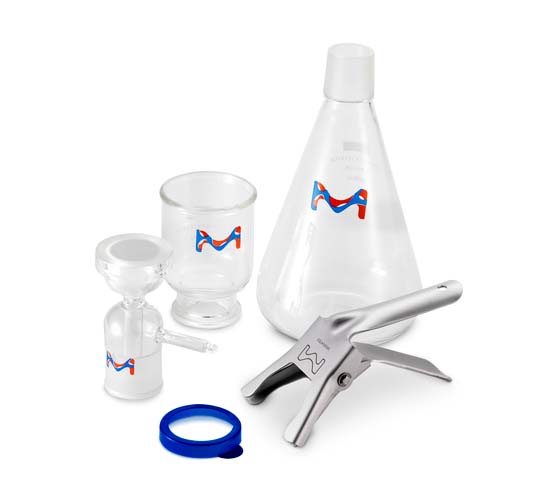

Vacuum filtration system complete configuration:
- Funnel 300 ml
- Base with cone and vacuum fitting
- Sintered glass filter support screen
- Anodized aluminium clamp
- Vacuum Erlenmeyer flask 1.000 ml |
1 |
| Diametro del filtro |
Ø 47 mm |
| Superficie di filtrazione |
9,6 cm2 |
| Capacità |
Imbuto 300 ml / Beuta 1.000 ml |
| Raccordo di uscita |
Connessione con il vuoto mediante codolo orizzontale per tubi Øest 6 mm |
