Water bath 22 l "Pump"

Recirculation pump integrated for a perfect temperature uniformity

Water bath, capacity 22 l, ensures a faster and more uniform temperature distribution due to the recirculation pump which is equipped.

Features

  • Working range from 5 °C above room temperature to 85 °C
  • Usable capacity 22 liters

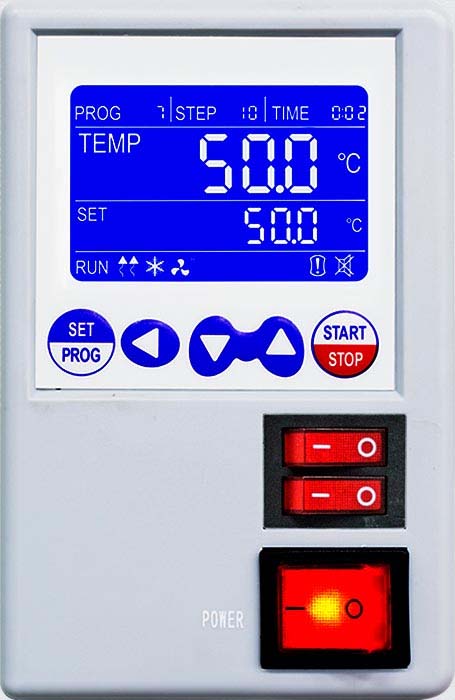

  • Electronic temperature control with integrated PID control
  • Safety Class 2
  • Recirculation pump integrated for a perfect temperature uniformity even at full load of test tubes
  • Kit emptying of the tankfor the periodic change of the liquid

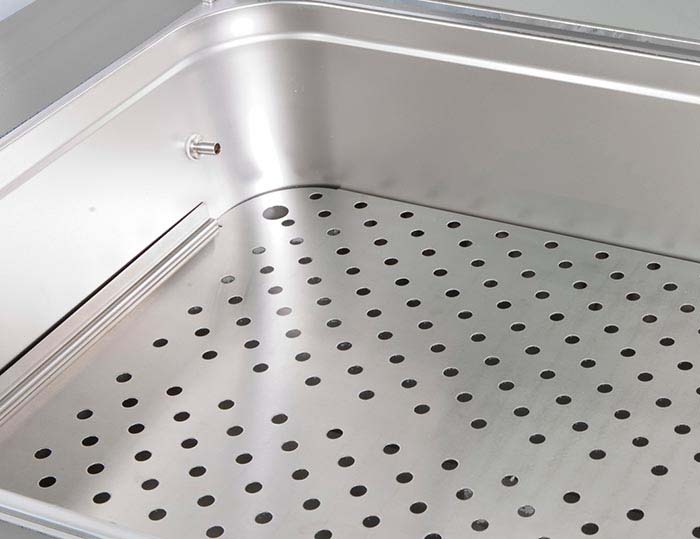

  • Internal chamber and removable perforated bottom plate in high quality stainless steel
  • Lid hinged to the tank with 5mm hole for the passage of an external sensor to control or to certificate the temperature
  • Wide range of rack tube available

Technical specifications

Code  RG/4110/1612
Usable volume 22 l
Max temperature / Resolution +85°C / 0,1°C
Temperature homogeneity at 37 °C ± 0,2 °C
Temperature variation at 37 °C ± 0,1 °C
Recirculation pump YES
Timer 99:59 hh:min e ∞
Overheating protection YES
Safety class 2
Bottom plate dimensions (W x D) 490 x 290 mm
Minimum usable height with lid closed 150 mm
Power supply / Nominal wattage 230 V / 1100 W
External dimensions (W x H x D) 680 x 395 x 365 mm
Weight 19 kg
