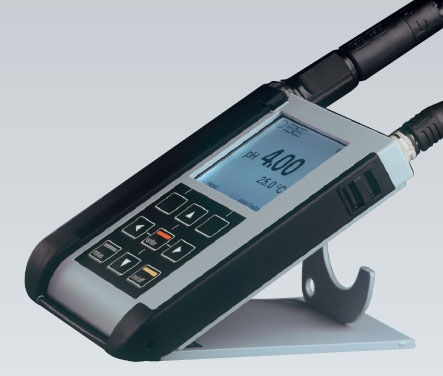

pH-meter ATEX Mod. 904 eX

With ATEX approval for measurements up to zone 0/1

Mod. 904 eX pH, the world's only portable device for pH measurement with ATEX approval for measurements up to zone 0/1. Ideal for applications in the process industry.

Safe. The world's only portable device with Memosens technology for liquid analysis with ATEX approval for measurements up to zone 0/1. Ideal for applications in the process industry.

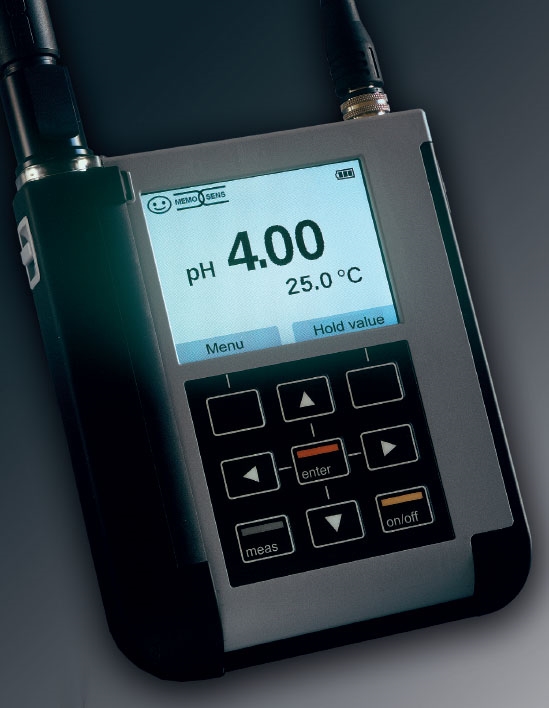

Robust. The robust and chemical-resistant housing even survives the standardized drop test from 1 meter onto concrete. High-contrast LCD with scratch-proof mineral glass screen can still be read perfectly after many years.

Long-lasting. More than 1,000 hours of measurement are possible with one set of batteries (4xAA).

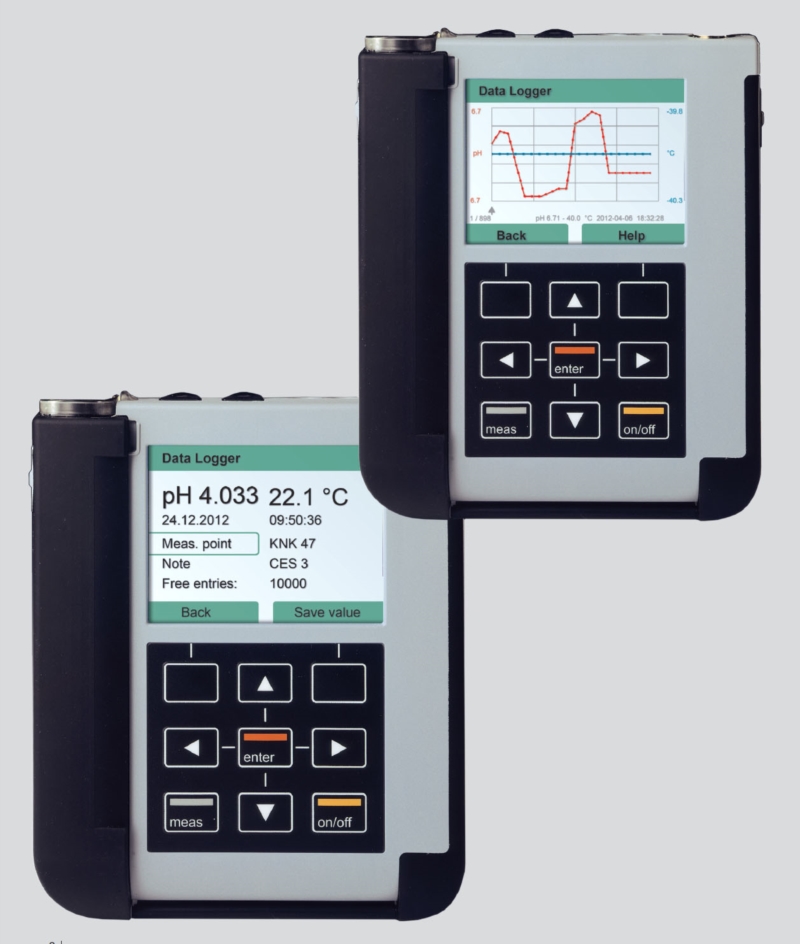

Communicative. Data logger entries can be shown on the display using an extensive recorder function. The standard micro USB interface enables:

  • connection to a PC
  • software updates

The data logger records up to 10,000 values.
The included Paraly SW 112 software enables easy management of recorded values.

For the first time, this model enables direct onsite testing of process measuring points. It is compatible with almost all analog and Memosens process sensors.

The new MemoLog function allows the user to log calibration data from various Memosens measuring points, which can then be easily transferred to a computer via the standard USB connection.

The Paraly SW 112 software enables user-friendly management of all recorded data.

Features

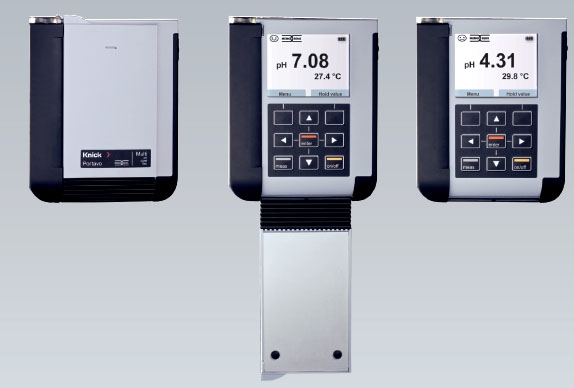

  • A sensor quiver protects the sensor from damage and drying out

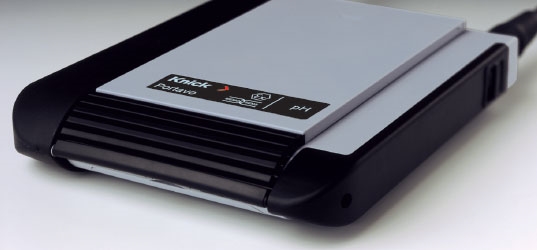

  • The high-performance polymer housing ensures low water consumption and high impact resistance
  • Over 1,000 hours of measurement with a single set of batteries (4x AA)
  • Data logger with 5,000 values
  • Micro USB port and Paraly SW 112 software
  • Memosens sensors and analog pH sensors can be used on one device (e.g flat-membrane sensors)
  • The mineral glass display is perfectly readable even after years
  • Application in hazardous locations for measurements up to Zone 0/1 (cCSAus planned)

Specifications

pH/mV input (analog) pH socket, DIN 19 262 (13/4 mm)
pH range -2 … 16
Decimal places*) 2 or 3
Input resistance 1 x 1012 Ω (0 … 35 °C)
Input current 1 x 10-12 A (at RT, doubles every 10 K)
Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.01 pH, TC < 0.001 pH/K
mV range -1300 … +1300
mV Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.1 % meas. val. + 0.3 mV, TC < 0.03 mV/K
Temperature input 2 x 4 mm dia. for integrated or separate temperature detector
Measuring ranges
NTC 30 kΩ -20 … +120 °C
Pt 1000 -40 … +250 °C
Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.2 K (Tamb = 23 °C); TC < 25 ppm/K
Memosens pH input (also ISFET) M8 socket, 4 pins, for Memosens lab cable
Display ranges4)
pH -2.000 … +16.000
mV -2000 … +2000 mV
Temperature -50 … +250 °C
Memosens ORP input M8 socket, 4 pins, for Memosens lab cable
Display ranges4)
mV -2000 … +2000 mV
Temperature -50 … +250 °C
Sensor standardization*) ORP calibration (zero adjustment)
Permissible calibration range ΔmV (offset) -700 … +700 mV
Sensor standardization*) pH calibration
Operating modes*) Calimatic Calibration with automatic buffer recognition
Manual Manual calibration with entry of individual buffer values
Data entry Data entry of zero and slope
Permissible calibration range Zero point 6 ... 8 pH With
ISFET: -750 … +750 mV Operating point (asymmetry)
Slope Approx. 74 … 104 %
Calibration timer* Interval 1 … 99 days, can be switched off
Sensoface Provides information on the sensor condition Evaluation of zero/slope, response, calibration interval
Connections 2x socket, 4 mm dia., for separate temp. detector
1x M8 socket, 4 pins, for Memosens lab cable
1x micro USB-B for data transmission to PC
1x pH socket, to DIN 19262
Display LCD STN 7-segment display with 3 lines and icons
Status indicators for battery power level, logger
Notices Hourglass
Data logger 5,000 memory locations
Recording Manual, interval- or event-controlled
MemoLog calibration data logger  (Memosens only) Up to 100 Memosens calibration records can be saved – directly retrievable via MemoSuite (USB)
Manufacturer, sensor type, serial no., zero, slope, calibration date
Communication USB 2.0
Profile HID, driverless installation
Usage Data exchange and configuration via Paraly SW 112 software
Diagnostics functions Sensor data (only Memosens)
Manufacturer, sensor type, serial number, operating time
Calibration data Calibration date; zero and slope
Device self-test Automatic memory test (FLASH, EEPROM, RAM)
Device data Device type, software version, hardware version
Data retention Parameters, calibration data > 10 years
EMC EN 61326-1 (General Requirements)
Emitted interference Class B (residential area)
Immunity to interference Industry
EN 61326-2-3 (Particular Requirements for Transmitters)
Explosion protection Global IECEx Ex ia IIC T4/T3 Ga
Europe ATEX II 1 G Ex ia IIC T4/T3 Ga
USA, Canada IS Class I, Division 1, Groups A,B,C,D, T4/T3, Ta = 40 °C / 50 °C; Entity; Type 4X IS Class I, Zone 0, AEx ia IIC T4 / T3, Ta = 40 °C / 50 °C; Entity; Type 4X
RoHS conformity According to directive 2011/65/EU
Power supply 4x AA batteries
Operating time Approx. 1000 h (alkaline)
Nominal operating conditions Ambient temperature -10 … +55 °C
Transport/Storage temp. -25 … +70 °C
Relative humidity 0 … 95 %, short-term condensing allowed
Housing Material PA12 GF30 + TPE
Ingress protection IP66/67 with pressure compensation
Dimensions Approx. (132 x 156 x 30) mm
Weight Approx. 500 g

*) user-defined
1) According to EN 60746-1, at nominal operating conditions
2) ± 1 count
3) Plus sensor error
4) Ranges depending on Memosens sensor
