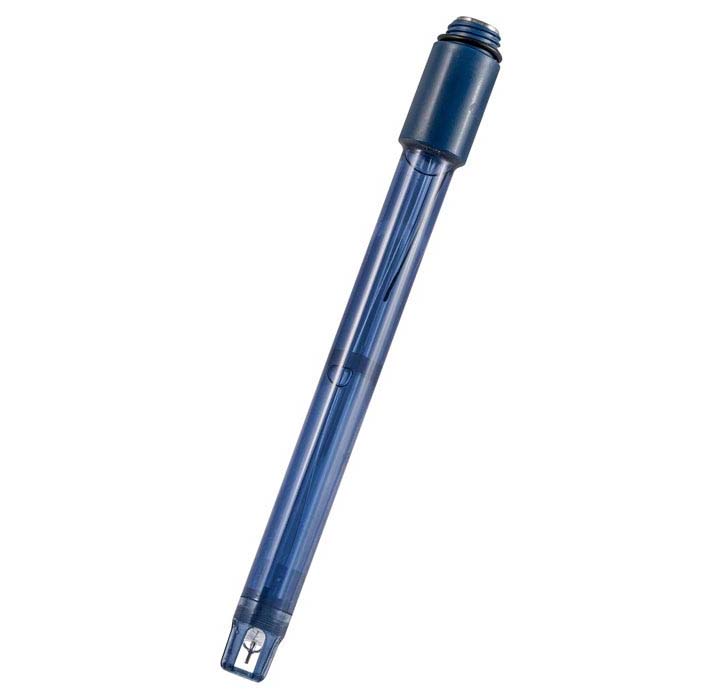

"PLAST ORP" Redox electrode
With platinum pin for ORP/REDOX.
"PLAST ORP" Sensor Poly Plast ORP S7 with platinum pin for ORP/REDOX.
- S7 screw head
- Body in epoxy
- Gel Filled without maintenance
- Ceramic diaphragm
- Temperature 0 ... 60 °C
Specifications
| Range mV |
± 1000 mV |
| Range temperature |
0…+60 °C |
| Body material |
Epoxy |
| Head |
S7 connector |
| Temperature probe |
NO |
| Diaphragm |
Ceramic |
| Reference system |
Ag/AgCl double junction |
| Electrolyte |
Gel maintenance free |
| Length |
120 mm |
| Diameter |
Ø 12 mm |
