CUVETTES (UV) RT Series
For photometric measurements even in the UV range 220 nm
Disposable cuvets have long replaced cuvets once normally made of glass.
New plastics coupled with modern methods of production allow photometric measurement well into the UV range.
Ultra-precision molds with several cavities – one per cuvet – are used for
producing RT UV CUVETTES under controlled room conditions.
Thus, in any one injection molding run several cuvets are produced
simultaneously. In order to prevent deviations in extinction coefficient values from occurring in any one run due to increased stray light, the cuvets are automatically sorted according to their numbered cavities of origin.
Each package shows the corresponding local production number of the cuvetts position in the net. So all cuvetts inside one styrofoam box are technical wise indentical.
Any measurement done with those identical cuvetts insures a high accurancy.
RT Series - UV CUVETTES
For photometric measurements even in the UV range 220 nm.
Due to the special plastic material and the excellent manufacturing
process the cuvets can also be used in photometric ranges reserved
for UV glass cuvets in the past.
Features
- Applicable wavelength range 220 to 900 nm
- Very low variation of extinction values
- Excellent optical transmission range
- Cavity-sorted production
- Path length 10 mm
- Outer dimensions 12.5 x 12.5 x 45 mm

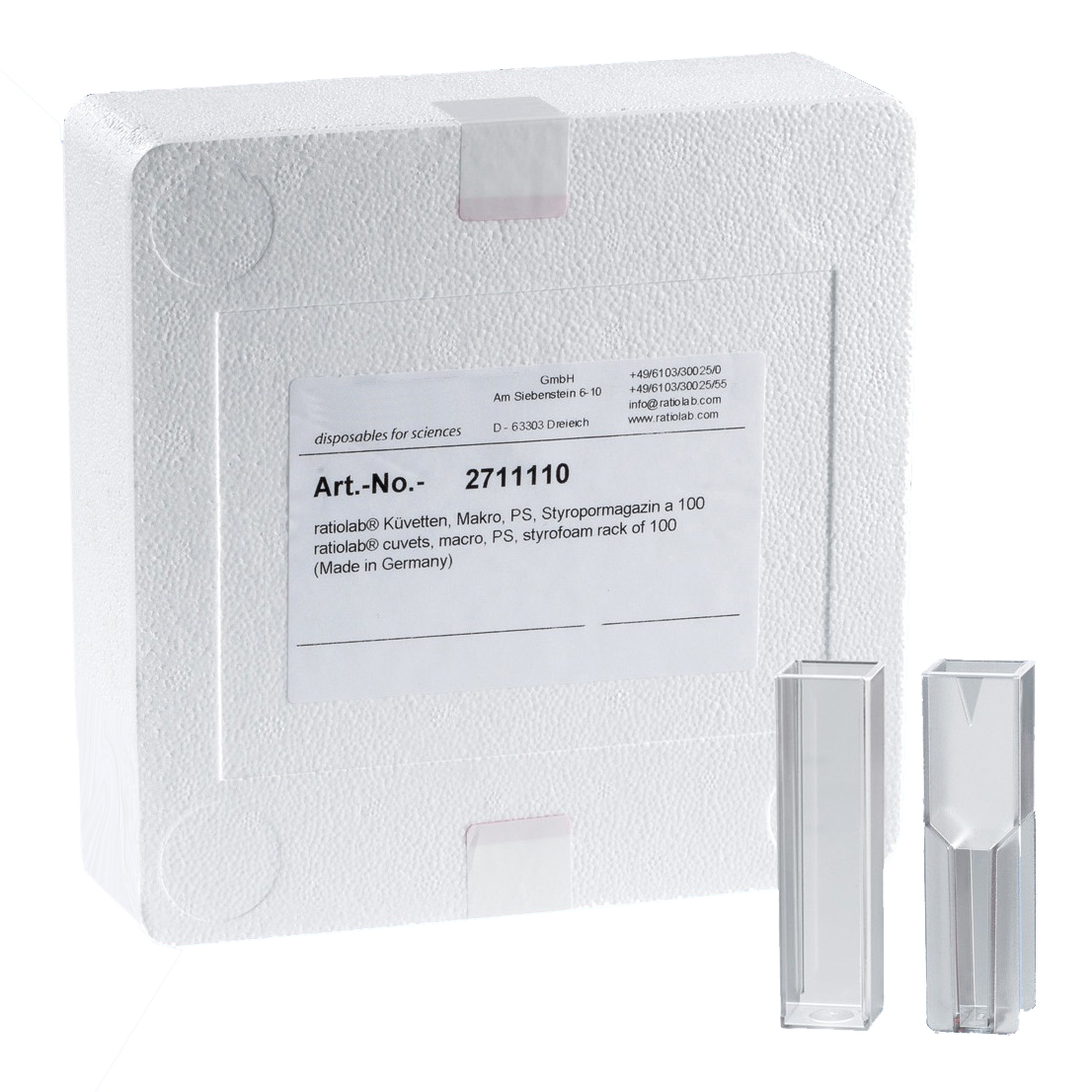

- Supplied in practical styrofoam racks: 100 netidentical cuvets in a
styrofoam box with a resealable cover
| Code |
Description |
Volume |
Qty |
| RT/2722120 |
UV CUVETTES semi-micro |
1,6 ml |
100 |
| RT/2722110 |
UV CUVETTES macro |
4,0 ml |
100 |
