Multiple Vortex/Mixer
Maximum process 50 samples at the same time!
Multi-Tube Vortex Mixer can process 50 samples at once.
A large variety of accessories can be selected for your choice to meet the mixing needs of different specifications of test tube.
Humanized program design, built-in two operation modes : short mix and fixed timing ,which make the experiment more convenient and efficient.
Features
- Maximum process 50 samples at the same time to make the experiment more convenient and efficient
- Microprocessor control, simplistic designed appearance, LED display the speed and time
- Humanized program design, built-in short mix and timing operation modes
- Operation stable and silent
- Large orbital vortex, performance effective
- Various types of foam tube frames and pads for option
Technical specifications
| Code |
MB/010/003 |
| Speed range |
500÷2.500 rpm |
| Speed accuracy |
+/- 10 rpm |
| Shaking orbit |
4 mm |
| Timer |
1 s ÷ 9999 min
short mix
impulse pattern
continuous |
| Interval timing between impulse |
1÷10 s |
| Timing set for imputs working |
1 s ÷ 99 min 59 s |
| Max load |
5 kg |
| Cover plate size |
184×311 mm |
| Voltage |
AC 100 ~230V, 50/60Hz |
| Power |
60 W |
| Dimensions |
250×426×480 mm |
| Weight |
15 kg |

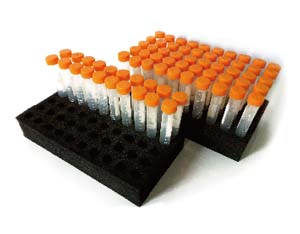

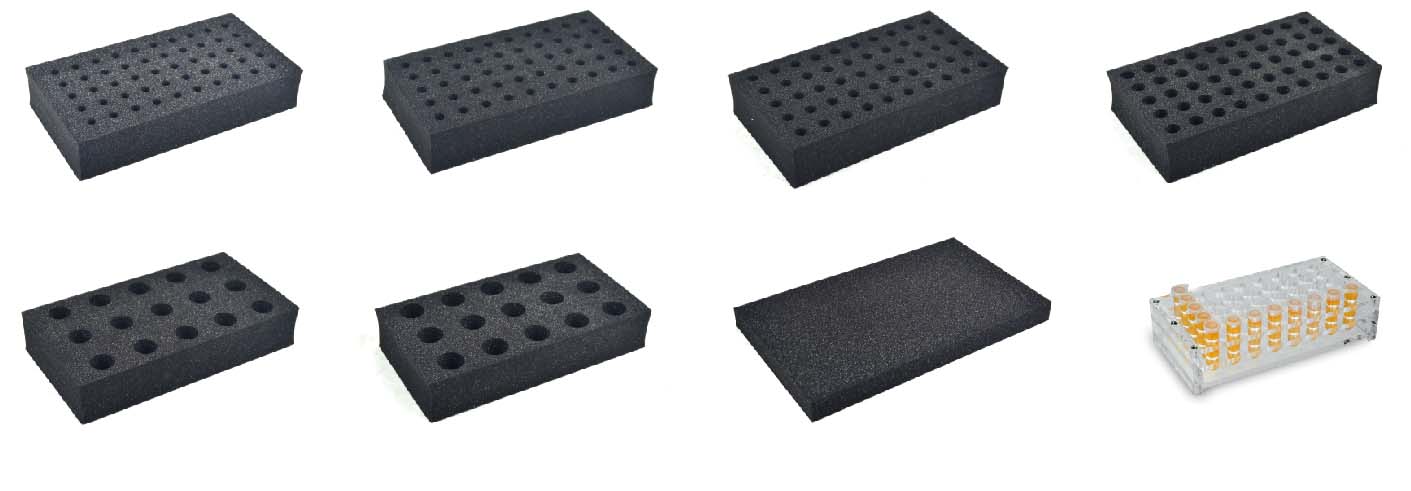

Foam frames (optional accessories)
| Code |
Description |

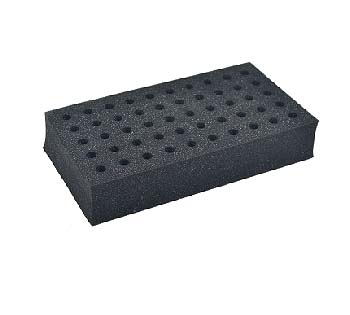

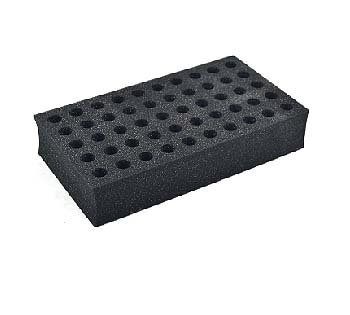

| MB/010/004 |
Foam tube frame Ø 10 mm - 50 holes |

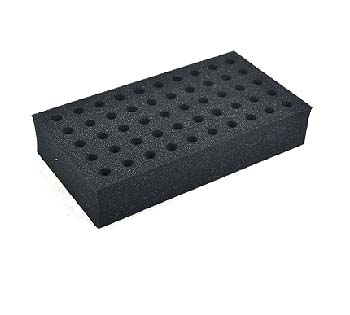

| MB/010/005 |
Foam tube frame Ø 12 mm - 50 holes |
| MB/010/006 |
Foam tube frame Ø 13 mm - 50 holes |
| MB/010/007 |
Foam tube frame Ø 16 mm - 50 holes
(suit for 15 ml tubes) |

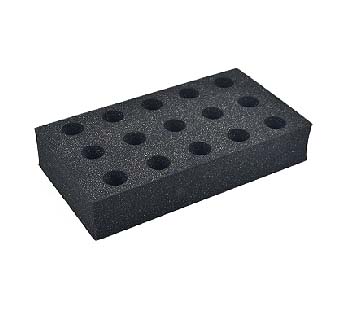

| MB/010/008 |

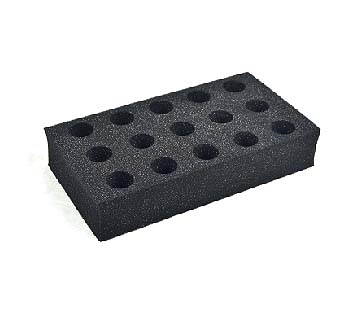

Foam tube frame Ø 25 mm - 15 posti |
| MB/010/009 |
Foam tube frame Ø 29 mm - 15 posti
(Suit for 50 ml tubes) |
| MB/010/010 |

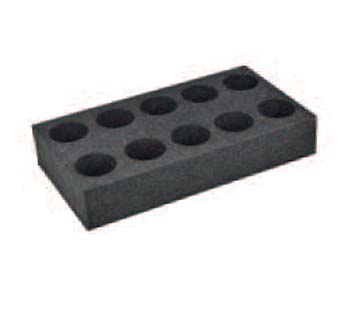

Foam tube frame Ø 38 mm - 10 posti
(Suit for 100 ml tubes) |
| MB/010/011 |

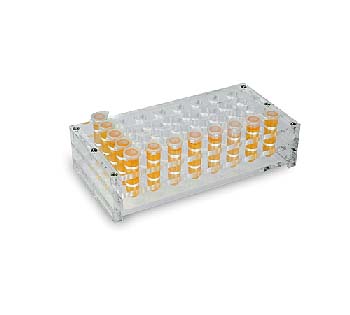

Microtubes acrylic frame - 40 posti |
| MB/010/012 |

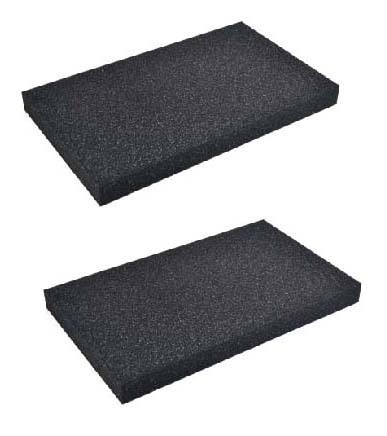

Tray pad set (up pad & base pad) |
