Overhead stirrer 2.200 rpm/20 l
Display for instant reading of speed and torque, accurate control of the stirring speed
Overhead stirrer RG Series, range speed 50… 2.200 rpm, max capacity (H2O) 20 l.
Features
- Display for instant reading of speed and torque
- Accurate control of the stirring speed
- Adjustable safety circuit that automatically stops the motor in case of overheating to ensure extreme safety
Specifications
| Code |
RG/2200/5013 |
| Max stirring capacity (H2O) |
20 l |
| Input motor power |
60 W |
| Output motor power |
50 W |
| Range stirring speed |
50÷2.200 rpm |
| Stirring speed accuracy |
+/- 3 rpm |
| Speed display indicator |
LED Display |
| Display resolution |
1 rpm |
| Max torque |
40 Ncm |
| Overload protection |
Alarm LED, auto-stop |
| Max viscosity [mPas] |
10.000 mPa.s |
| Opening of the drill chuck |
0,5÷10 mm |
| Dimensions (L x A x P) |
83×220×186 mm |
| Weight |
2,4 kg |
| Voltage - Frequency |
220 V - 50/60 Hz |
| Power consumption |
70 W |
| IP protection class |
IP42 (acc. to DIN EN60529) |
| Working temperature |
+5÷+40°C |
| Working humidity max |
80% |
Note - The endowment of the instrument does not include the stand support and stirring rod; they must be purchased separately.
Optional accessories sold separately
For the complete configuration of the instrument you can choose from the following items.

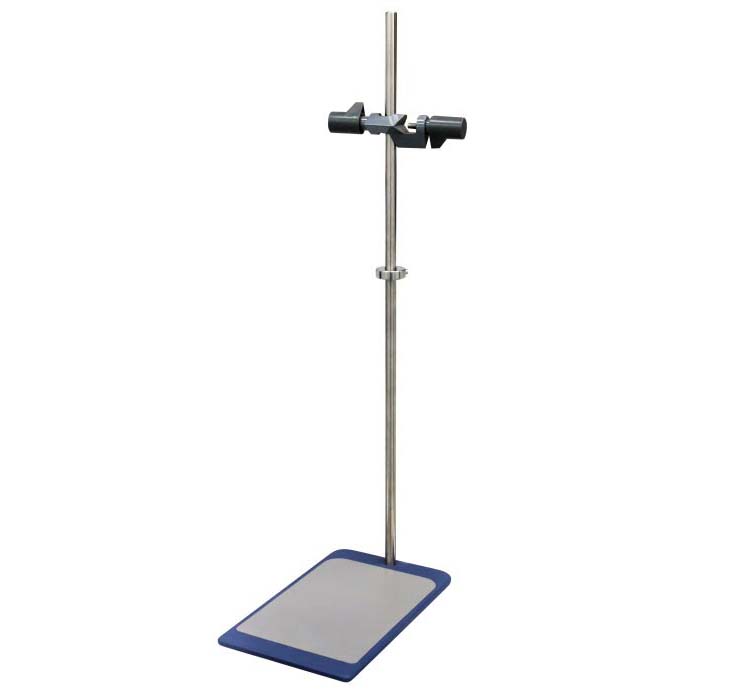

Support for overhead
| |
Code: RG/22005153
Universal holder for stirrers.
- Dimensions 200 x 315 mm
- Spindle length mm 800
- Rod diameter 18 mm
- Complete with clamp
|
Stirring rods

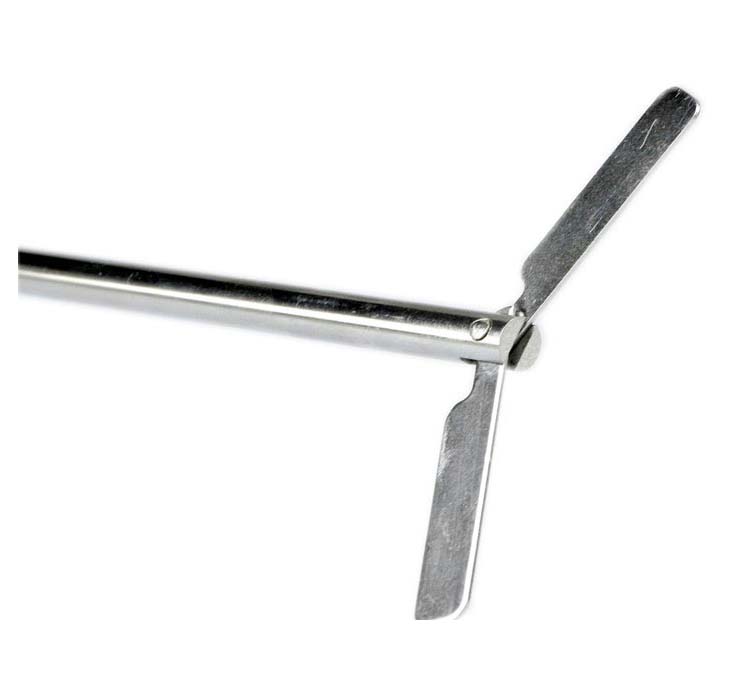

| Code: RG/2200/5193 |
Stirring shaft with floating blades - Type 1
Characteristics: The two blades opening to the increase of the speed, generate an axial flow from top to thebottom of vessel.
Use: This shaft is particularly indicated for the stirring in narrow neck vessels, for example flasks.
Dimensions: Ø 89×400 mm
|
| Code: RG/2200/5173 |
Stirring shaft with fixed blade - Type 2
Characteristics: It generates an axial flow from top to the bottom of vessel..
Use: It used at medium-high speed to swirl light solids, for flocculation, to mix thickening agents, to stir sludge, etc
Dimensions: Ø 60×400 mm
|

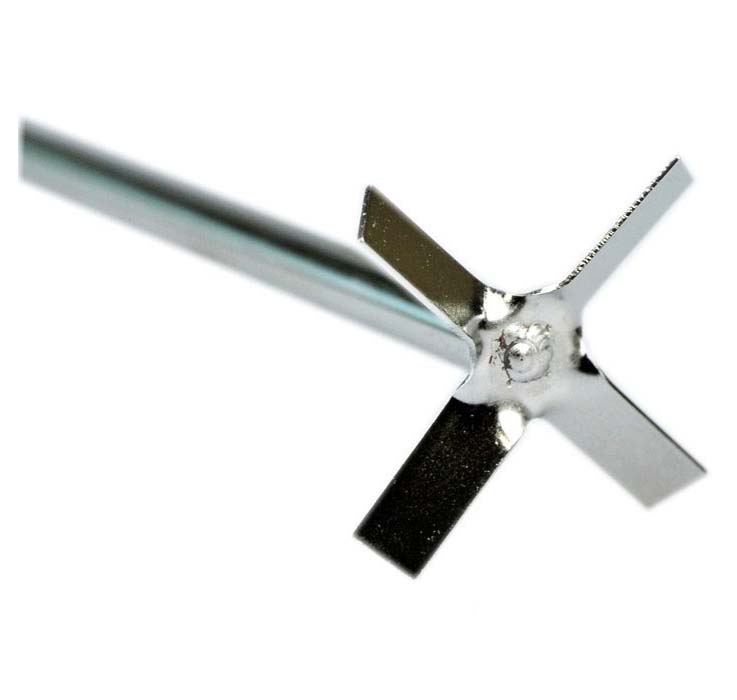

| Code: RG/2200/5163 |
Stirring shaft with propeller - Type 3
Characteristics: This is the standard stirrer shaft. It generates an axial flow in the vessel, with suction of the substance from bottom to the top and localized appearance of shear forces.
Use: It used at medium-high speed to swirl light solids, for flocculation, to mix thickening agents, to stir sludge, etc
Dimensions: Ø 50×400 mm
|

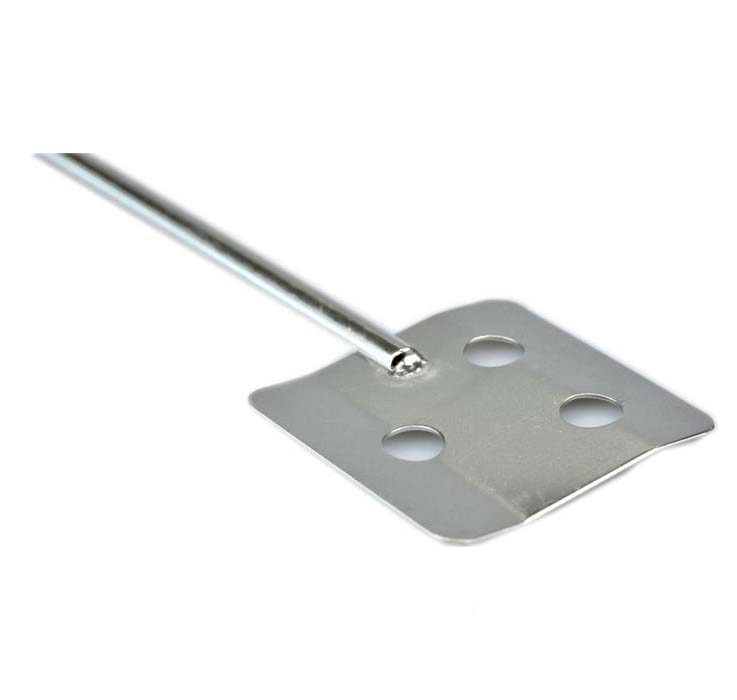

| Code: RG/2200/5183 |
Stirring shaft with 3 holes blade - Type 4
Characteristics: It generates a tangential flow with reduced turbolence and gentle mixing of the sample.
Use: It used at low speed when it is necessary a good exchange of hot of the products that you hvae to mix.
Dimensions: Ø 68×400 mm
|
