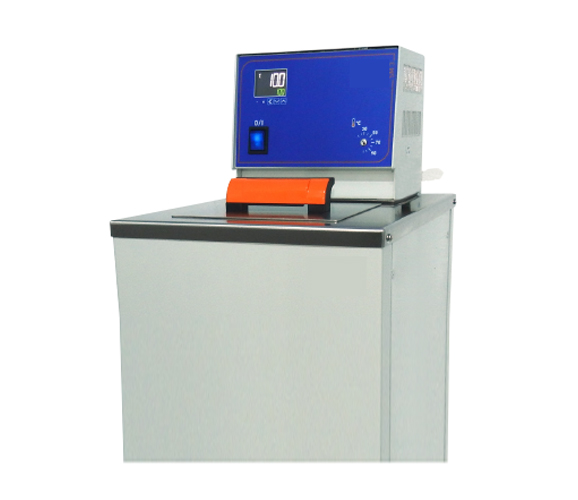

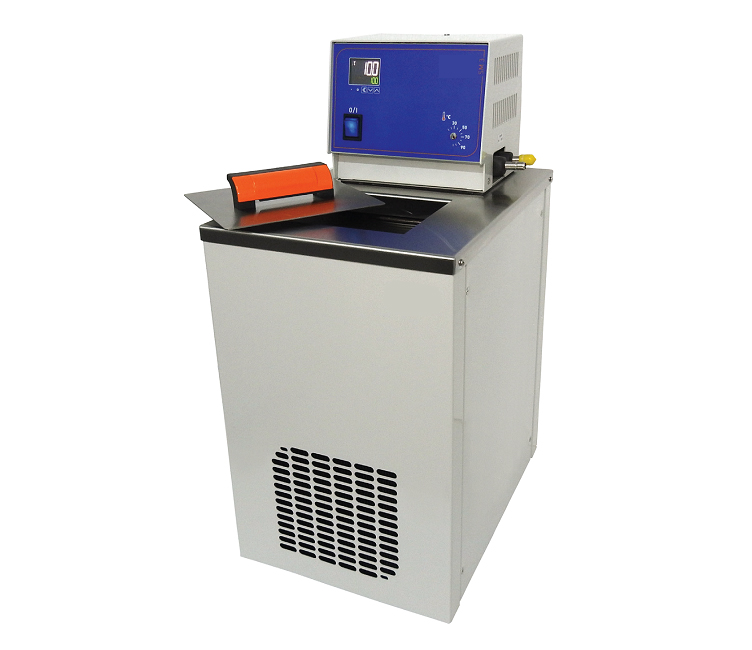

Refrigerated/Heating circulator 7 l / -20°C÷100°C internal/external
Digital PID temperature control system, stainless steel bath
Refrigerated and heating circulator, capacity 7 l, temperatura range -20÷100°C, internal external circulation.
-
These circulators are used for precise temperature studies with cooling and heating features
-
The series models are preferred for R&D and quality control processes because of their practical structure
-
Digital PID temperature control system; it can be easily viewed even from a long distance with its large size Led LCD screen
-
All refrigerated circulators work with environmentally friendly refrigerants (NON CFC) that do not damage the ozone layer
Technical specifications
Code |
LK/C200/H23 |
Temp Range ˚C) |
-20°C ÷ +100°c |
Temp Range ˚C)(l) |
7 |
Bath Opening Depth (mm) |
140×145/155 |
Temperature stability (°C) |
±0,03 |
Heating Capacity (kW) |
2 |
Cooling Capacity (20°C/kW) |
0,25 |
Circulations Type |
Internal/external |
Pump Capacity (l/min) |
16 |
Dimensions |
292×423x620 |
Display type |
Digital |
Display Resolution |
0.1°C |
Temp. Control System |
New Generation PID |
Over Temp. Alert System |
Existing |
Bath Material |
Stainless Steel |
Easy Drain System |
Existing |
Power Requirement |
220-240 V / 50-60 Hz |
Digital Interface (Optional) |
RS 485 |
