Scrubber Columns (FPE/PTFE)
Intensa miscelazione del gas grazie al tubo di risalita alto

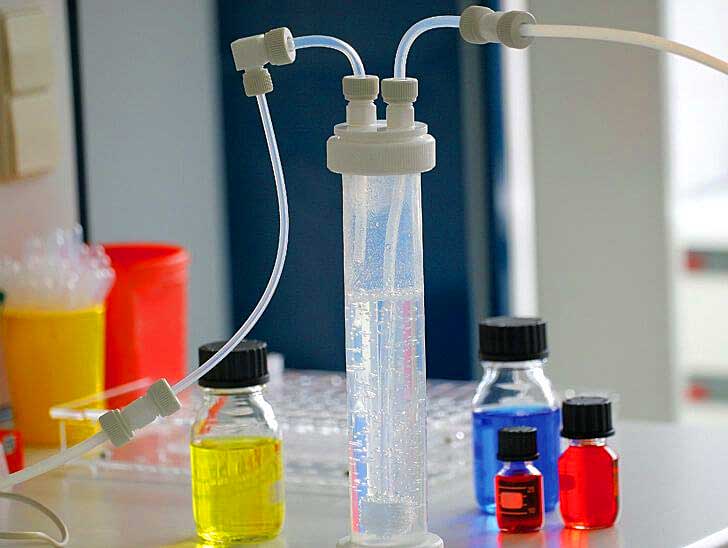

Tall, slim scrubber column made of FEP.
Inlet and outlet tube as well as riser tube are made of FEP (5,6 x 8 mm), bottom and top are made of pure PTFE.
The standard PTFE frit has a pore size of approx. 5µm and is screwed on the riser tube with an M8x1 thread.
It can be exchanged with the PTFE gas distributor with fine bores (Cat. No. N BH/150/116) which needs a lower primary pressure.
- Transparent
- Unbreakable
- Intense gas mixing due to high riser tube
- Easily replaceable septum
- Universal chemical resistance
- FEP/PTFE materials
- Operating temperature range: -200°C ... +205°C
The flow rate values for the two models of 500 ml and 1,000 ml at the indicated system pressures are as follows:
500 ml column
- System pressure 0,1 bar: 15 l/h
- System pressure 0,3 bar: 62,5 l/h
- System pressure 0,6 bar: 130,0 l/h
1-000 ml column
- System pressure 0,1 bar: 5 l/h
- System pressure 0,3 bar: 50 l/h
- System pressure 0,6 bar: 117,5 l/h
Available volumes
| Code | Volume (ml) | Øconnecting for tubes O.D. (mm) | ØxHeight (mm) Column |
| BH/A11/704 | 500 | 2x8 | 54x400 |
| BH/A11/708 | 1.000 | 2x8 | 54x700 |
