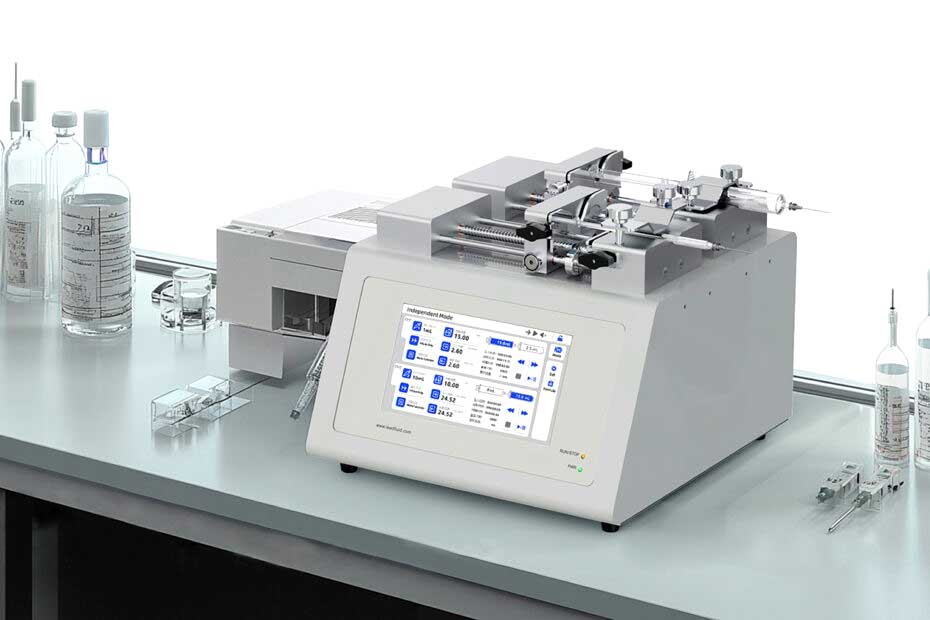

Syringe Pump "Dual Range"
Two-channel model with independent control
“Dual Range” model that integrates two independent units with a combined design of dual-pump functionality and intelligent control center.
All protocols that previously required two devices can now be performed with a single instrument capable of independent, synchronized and programmed runs eliminating redundant costs and dramatically increasing your laboratory's productivity.
Ideal model for high accuracy biopharmaceutical experiments and complex microfluidics system management protocols.
Three operating modes to meet any need:
- Independent mode: asynchronous two-channel run with differentiated settings for flow rate, volume and time interval
- Synchronous mode: simultaneous running of the two syringes that start and stop at the same time as if it were a single two-channel Syringe Pump
- Programming mode: allows multi-segment programming and setting loops allowing for more complex experimental designs
“Log” function for test tracking. Real-time logging of time, parameters and operations supports viewing, saving and exporting data.

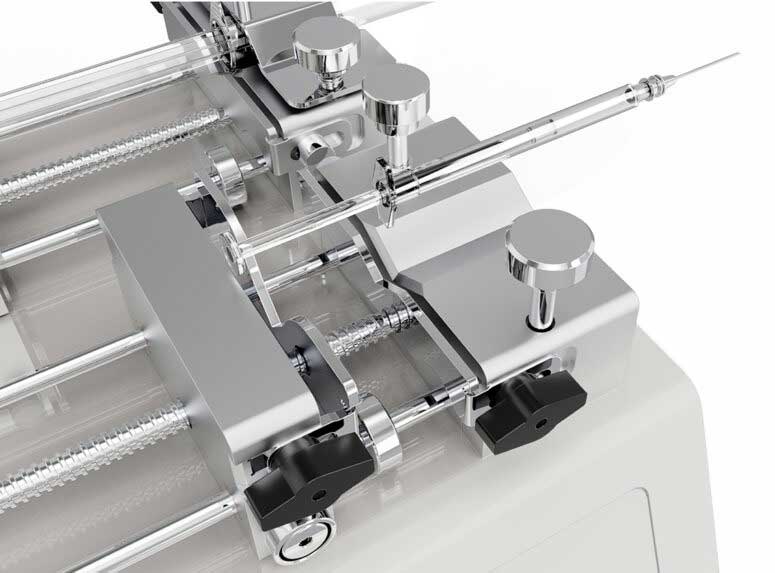

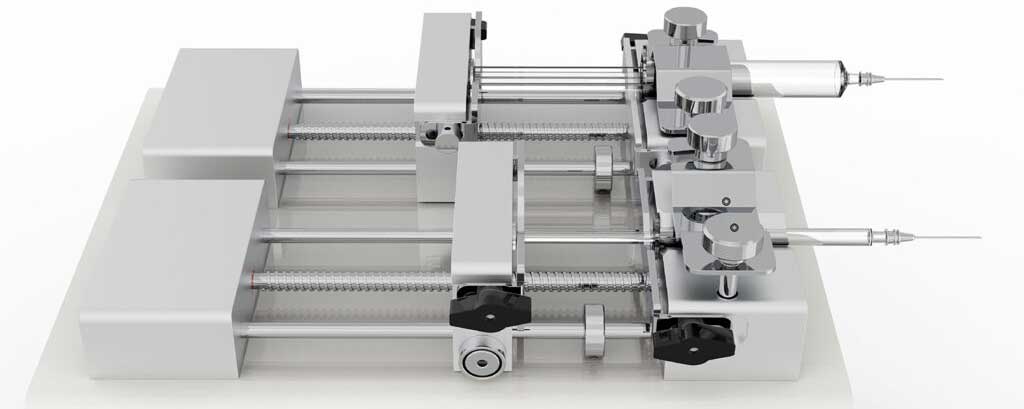

The instrument is equipped with quick installation mode to speed up the change of syringes between cycles. Syringe attachment can also be completed with one hand, eliminating the traditional double-nut operation for faster, more stable and secure installation.
This model has high compatibility with a wide range of syringes on the market in the 0.5 µl ÷ 100 ml range with a single channel thrust of 35 kg.
Simple and intuitive operation thanks to the innovative user interface that allows immediate setting and display of test parameters.
An optional safety cover is available, as is a reserved wireless control port for remote operation (upon request).
The instrument has constant temperature capabilities to support experiments with temperature-sensitive samples.
This syringe pump will eliminate all hidden costs behind the use of traditional infusion pumps, and reduce budget waste while also optimizing laboratory space.
In addition, separate pumps result in flow rate synchronization deviation errors and require time-consuming calibrations.

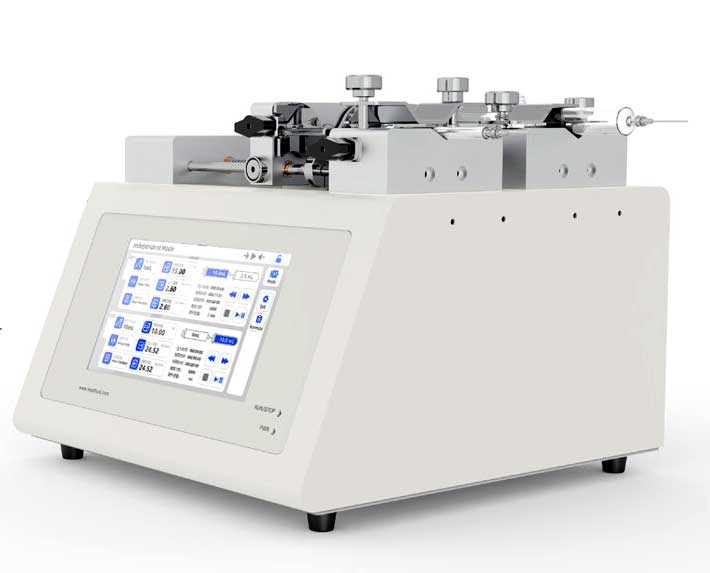

7-inch colour LCD display; simultaneously displays transmitted liquid volume, remaining liquid quantity, flow rate, direction of operation, syringe specifications, etc.
Tecnical specifications
| Work Mode | Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode,programming mode (new) |
| Channels | 2 |
| Stroke of Pump | 110 mm |
| Syringe | 0,5 µl ÷ 100 ml |
| Flow Range | 0,184 nl/min ÷ 83.318 ml/min |
| Display | 7-inch color LCD screen |
| Operation Mode | Touch screen + Common function buttons |
| Accuracy | Error<±0.35%,(>30% of pump stroke) |
| Max Rated Linear Force | > 35KgF |
| Thrust Control | 1%~100% adjustable |
| Advance Per Microstep | >0.156μm/μstep |
| Linear Speed | 1 µm/min ÷ 150 mm/min |
| External Control | External signal control for start stop and status signal output |
| Power Supply | AC 100 / 240 V / 50/60 Hz |
| Wattage | 65 W |
| Shell Material | Carbon steel |
| Working Environment | Temperature 5～40℃, relative humidity＜8 |
| Dimensions | 279×300×251 mm |
| IP Grade | IP31 |
To order
| Code | Description |
| LF/TYS/001/002 | Syringe Pump "Dual Range" |
