Check other options

Block heaters/coolers with shaking MB Series
Thermomixer with cooling 0÷100 °C / 300÷1.500 rpm (without block)

€ 2,400.06
iva esc.

Block heaters/coolers with shaking MB Series

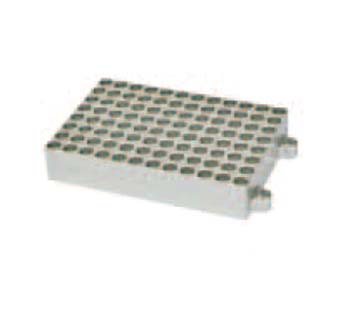

Block 96×0,2 ml PCR microplate

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

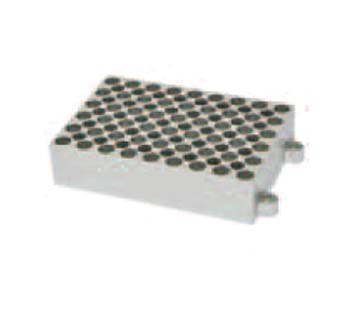

Block 54×0,5 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

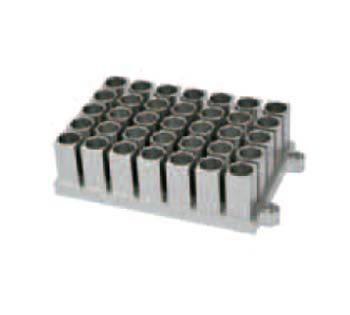

Block 35×1,5 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

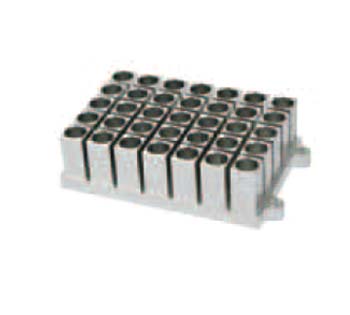

Block 35×2,0 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

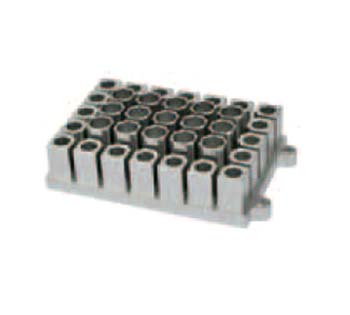

Block 20×0,5 / 15×1,5 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

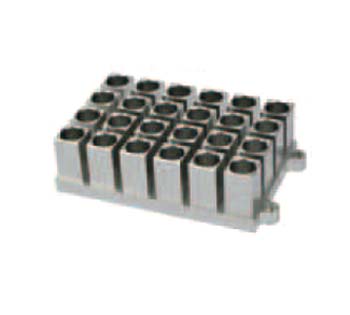

Block 24 tubes Ø 12 mm flat bottom

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

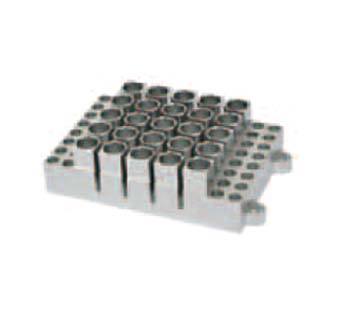

Block 32×0,2 / 25×1,5 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

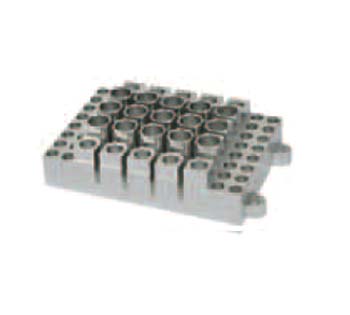

Block 32×0,2 / 10×0,5 ml / 15×1,5 ml microtubes

€ 99.18
iva esc.

Block heaters/coolers with shaking MB Series

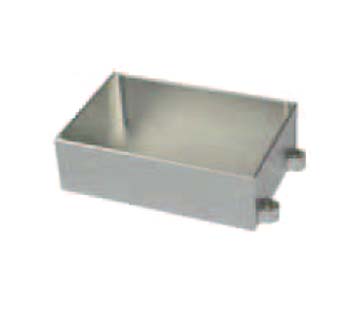

Block "water bath" 103×67×30 mm flat bottom

€ 99.18
iva esc.

Thermo Shaker Block Incubator

With fast mixing speed and integrates heating and cooling

Thermo Shaker Incubator (cooling)

Thermo Shaker Incubator (Cooling) is themo shaker incubator with fast mixing speed and integrates four function mixing, shaking, heating function and Cooling function.

Combined with intelligent operation design, it not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies, but also equipped he function of votexing and heating all kinds of tubes. It can meet the needs of different users.

Features

Perfect radius and excellent dimensional technology blend with adjustable mixing speed
Programmable. Efficient shaking and temperature control
Restore from power off, recover to the pre-status automatically (deleted)
Microprocessor controlled incubator
Good linearity of temperature control
Precise control of the shaking speed
Timing function
Time range is from 0 to 100 hours
Various blocks to exchange, convenient for replacement
Built-in temperature calibration function and short mixing function
DC brushless motor drive, long life and free of maintenance
Multiple safety protection function

Conform to CE safety standards, safe and reliable

Technical specifications

Code	MB/003/002
Speed range	300÷1.500 rpm
Shaking orbit	3 mm (horizontal)
Temp. Max. Decrease	R.T. decreases 20℃
Temp. Setting Range	0÷100 ℃
Temp. Stability	≤±0.3℃
Block Temp. Uniformity	≤±0.3℃
Temp. Display Accuracy	0.1℃
Heating Speed	≤15min (20℃ to 100℃)
Cooling Speed	≤30min (R.T. decrease 20℃) @R. T. 26℃
Time Range	1min ~99h59min or continuous
Voltage	AC 90V ~230V, 50/60Hz
Power	200 W
Dimension (WxDxH)	196 x 270x 170mm
Net Weight	8.8 kgs

Aluminium blocks

Code	Spec	Dia. of hole	Hole bottom shape
MB/003/004	0.2 ml x 96	6.7 mm	Cone bottom
MB/003/005	0.5 ml x 54	8 mm	Cone bottom
MB/003/006	1.5 ml x 35	10.8 mm	Cone bottom
MB/003/007	2.0 ml x 35	10.8 mm	Round bottom
MB/003/008	0.5 ml x 20 1.5ml x 15	8 mm / 10.8mm	Cone bottom
MB/003/009	≤Φ12mm x 24	12 mm	Flat bottom
MB/003/010	0.2 ml x 32 1.5ml x 25	6.1 mm / 10.8mm	Cone bottom
MB/003/011	0.2 ml x 32 0.5 ml x 10 1.5ml x 15	6.1 mm 8 mm 10.8 mm	Cone bottom
MB/003/012	Water Bath	103 x 67 x 30 mm	Flat bottom
MB/003/013	Flat bottom plates	Top size 69 x 107 x 12 mm	Flat plate block
MB/003/014*	5 ml x 24	13.5 mm	Flat bottom
MB/003/015*	15 ml x 12	16.9 mm	Flat bottom
MB/003/016*	50 ml x 6	29.5 mm	Flat bottom
MB/003/019	Cover for non standard blocks*
MB/003/020	Support 96×0,2 ml microtubes
MB/003/021	Support 24×0,5 ml microtubes
MB/003/022	Support 24×1,5/2,0 ml microtubes

* Non-standard height blocks; It is not possible to cover them with the supplied cover.
For cover those blocks it is necessary to buy the accessory lid of upper height cod. MB/003/019
