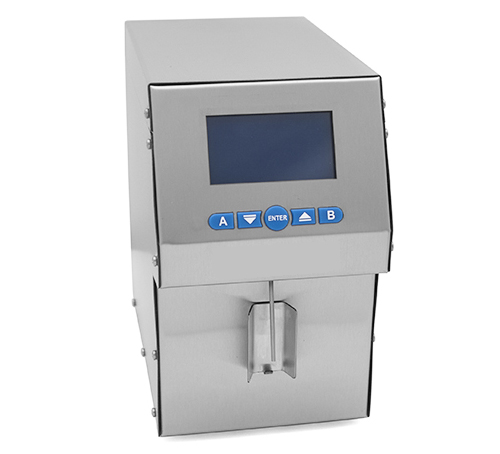

Ultrasonic automatic milk analyzer
Direct ultrasonic measurement of cold milk samples
Ultrasonic automatic milk analyzer with direct measurement of cold milk samples, starting at 5°C.
Automatic instrument equipped with peristaltic pump for decontamination cleaning.
No need of periodical calibration.
The measurement accuracy not dependant on milk's acidity.
High-end ultrasonic technology for analyzing any kind of milk; easily readable results, self calibration without computer.
Features
Available in versions with 60 and 30 seconds measurement time and with integration of pH measurement and other optional parameters in addition to the standard ones.
Measuring parameters
- Fat
- Solids-non-fat (SNF)
- Density
- Protein
- Lactose
- Milk sample temperature
- Added water
- Salts
- Freezing point
- Total solids (optional)
- pH (optional)
- Conductivity (optional)
- Ion meter (optional)
| Parameter | Measure range | Accuracy |
| FAT | 0.01% ÷ 45% | ±0.06% |
| Solids-non-fat (SNF) | 3% ÷ 40% | ±0.15% |
| Density | 1015 kg/m³ ÷ 1160 kg/m³ | ±0.3kg/m³ |
| Protein | 2% ÷ 15% | ±0.15% |
| Lactose | 0.01% ÷ 20% | ±0.2% |
| Added water | 0% ÷ 70% | ±3% |
| Temperature | 5°C ÷ 40 °C | ±1% |
| Freezing point | –0.400°C ÷ –0.700°C | ±0.005% |
| Salts | from 0.4% ÷ 4% | ±0.05% |
| pH (option) | 0÷14 | ±0.05% |
| Conductivity (option) | 2÷14 mS/cm | ±0.05 mS/cm |
To order
| Code | Description |
| LC/00SA/50 | Automatic ultrasonic milk analyzer measuring time 50 s |
| LC/00SA/30 | Automatic ultrasonic milk analyzer measuring time 30 s |
| LC/00SA/PH | Automatic ultrasonic milk analyzer measuring time 50 s with integration of pH measurement, high density samples, conductivity |
Milk analyzer makes quick anlysis of milk and dairy products:
- Cow Milk (25%)
- Sheep milk
- Buffalo milk
- Whey
- Cream (up to 45%)
- Skimmed milk (0,01% fat)
- Concentrated milk (up to 1.160 kg/m³)
- Recovered milk
- Etc.
Environmental conditions
- Ambient air temperature: (10÷ 40°C (optional 43°C)
- Milk temperature: 1÷40°C
- Relative humidity (H.R.): 30÷80%
Electrical parameters
Switching adapter
- Input: 100÷240 V - 1.6 A max 50÷60 Hz
- Output: +12 V 4.17 A min
- Output power: 50÷65 W
Mechanical parameters
- Dimensions (W×D×H): 100×223×216 mm
- Weight: 3 kg
