Vacuum aspiration system BX series
Designed for laboratory waste recovery and separation of liquid and solid
This station is designed for laboratory waste recovery and separation of liquid and solid.
It can be widely used in cell culture, DNA extraction, microplate
waste removal, and any other liquid separation or recovery.
Features
- Vacuum power can be set to different levels to achieve 1ml/s to 15ml/s aspirating speed
- Sensitive level sensor to prevent liquid overflow during operation.
- Waste bottle, tubing and handle are fully autoclavable
- Lid, tubing and handle are easy for disassembling, cleaning and autoclaving
- Wide range of adapters to fit tube, microplate and disk plate for various tasks

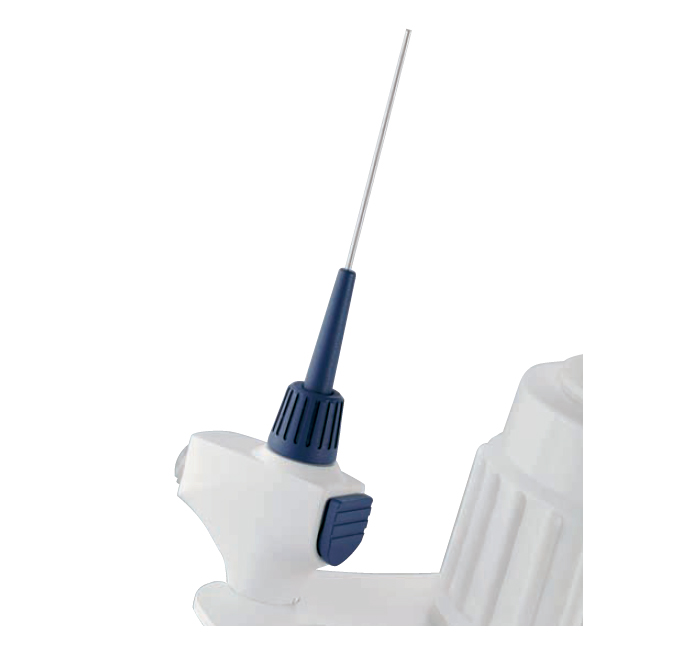

Wide range of adapters fit well with tube, microplate and disk plate for various of tasks, all of which can be fully autoclaved.
Specifications
- Vacuum range: 0÷600 mbar
- Aspirating speed: 1÷15 ml/s
- Autoclave component tube; waste bottle; operation handle
- Dimensions [ W× D× H ]: 180 × 240 × 450 mm
- Weight: 3 kg
- Input voltage: 100-240 VAC, 50/60 Hz
- Bottle Volume: 4 l
