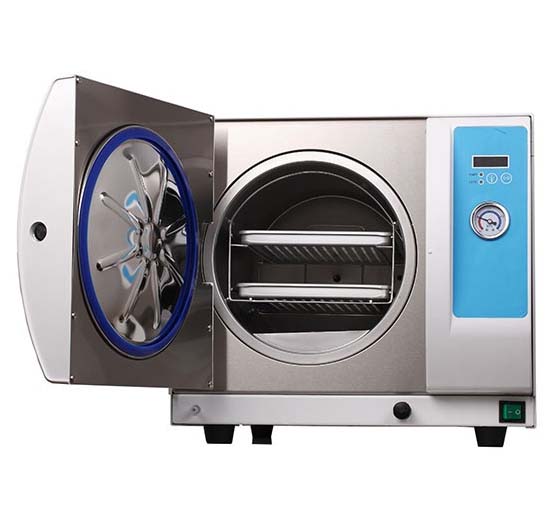

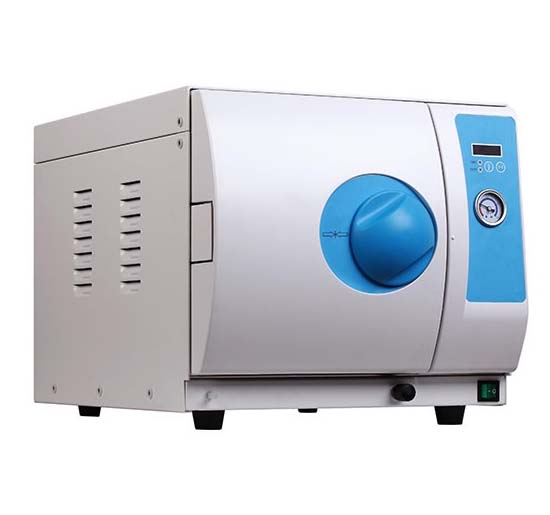

Autoclave 16 l IC-E Series Class N
Two program 121°C and 134 °C included
Semi-automatic “Class N” automatic autoclaves without steam generator.
A pressure safety locking is available which can prevent from opening if chamber is pressurized, with two program 121°C and 134 °C included.
Overview
- It is a semi-automatic “Class N” autoclaves worked without steam generator
- A pressure safety locking is available which can prevent from opening if chamber is pressurized, with two program 121°C and 134 °C can be selected
- It does not have water tank, the water have to been feed inside of the chamber before sterilization
Performance
- Two program 121°C and 134 °C can be selected
- LED displaying window
- Can display the temperature at high precision which can be 0.01°C
- High precision temperature control
- The water has to been feed inside of the chamber
- Pressure gauge show the pressure all the time
- Pressure is released automatically after cycle finished
- Water is drained by manual
Safety and Monitoring
- A pressure safety locking is available which can prevent from opening if chamber is pressurized
- Overheat protection
- Pressure safety valve prevents over pressure in the chamber
Technical specifications
| Order Code |
IC/E/000118 |
| Chamber Dimension |
230x360 mm |
| Chamber Volume |
16 L |
| Number of Trays |
2 |
| Size of Trays |
285x192 mm |
| Voltage, Freq. |
220/110V, 50/60Hz |
| Power |
1000 W |
| Overall Dimension (WxHxD) |
445x400x605 mm |
| Weight |
30 kgs |
Cycles
| Temp. [·C] |
Pressure [Mpa] |
Sterilization time [min.] |
| 134 |
210 |
10 |
| 121 |
110 |
30 |
Standards
- 93/42/EEC Directive on Medical Devices
- 97/23/EEC Directive on Pressure Equipment
- EN 13060 Small Steam Sterilizers
- EN 61326, EN 61000 Electromagnetic Compatibility
- EN 61010-1, UL 61010-1Safety requirements
- EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
