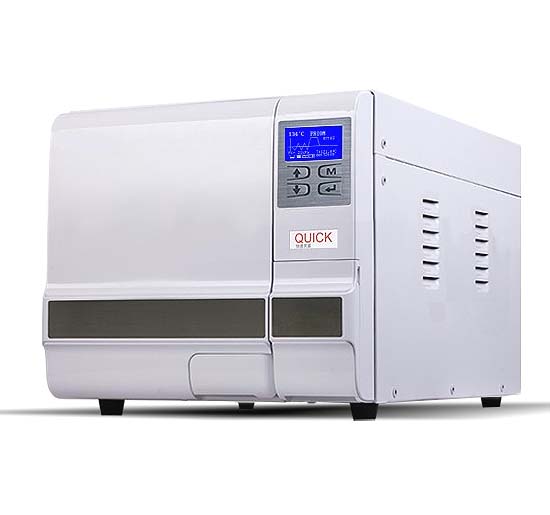

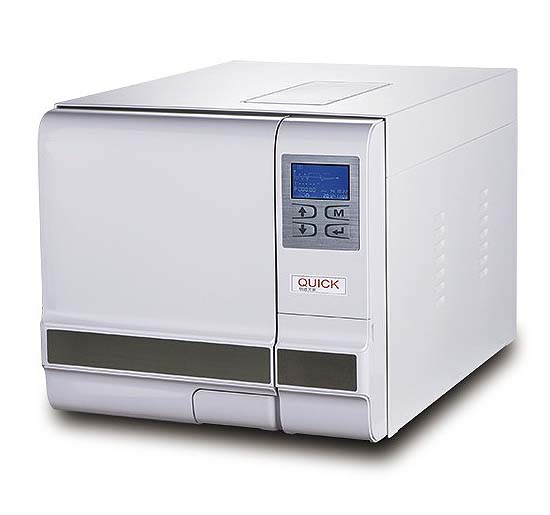

Autoclave IC-D "Quick" Series Class B

With QUICK cycle included

It is the “Class B” autoclave has same shape and size as 8 L IC-D, but with QUICK cycle included.

The QUICK cycle take approx. completed time 10 to 17 minutes for unwrapped instruments according to different weight of loading.

It is a solution for emergency sterilization using, also an idea for ophthalmic clinic.

Excellent Performance

Full automatic table top autoclave with pre-set programs
Complies with European standard EN13060
In built independent rapid steam generator ensures quick sterilization cycles
Rapid post sterilization vacuum drying

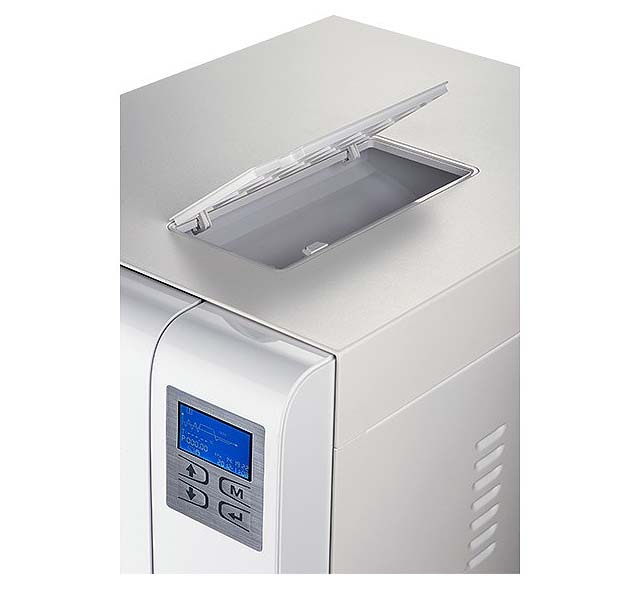

With one flash water tank and used one water tank

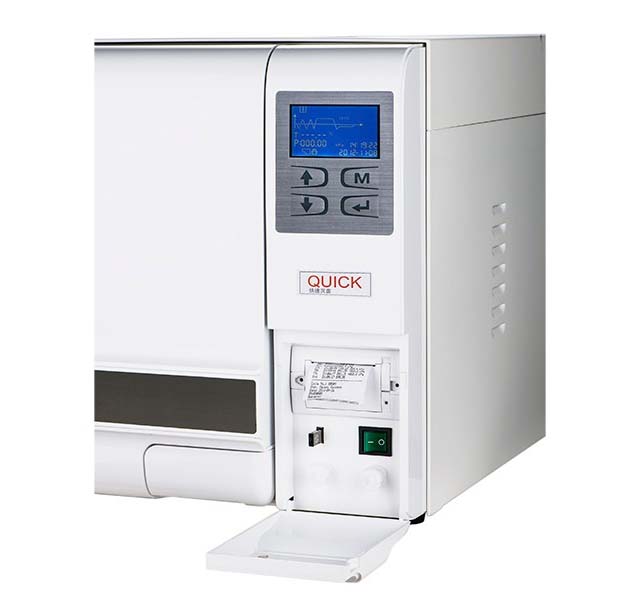

LCD screen displaying time, temperature and pressure, process alert and instrument conditions
User friendly interface
Self-initialization when work in different altitude
Multilanguage menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian

Safety and Monitoring

Double safety protection system prevents the cycle from starting if the door is not correctly locked
This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber
Pressure safety valve prevents over pressure in the chamber and steam generator
The power is automatically cut if a short circuit or electrical fault occurs
Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator
Water level main switch in the main tank controlling the min and max water level
Automatic warning for maintenance

Documentation

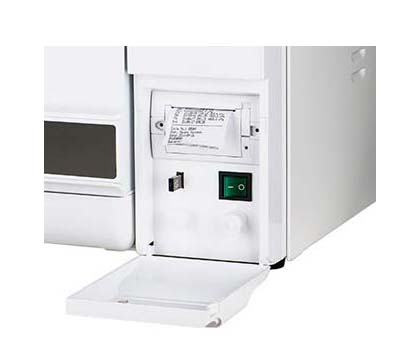

Printer: an internal printer is optional for all IC-D autoclaves
USB port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically
Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time

Technical specifications

Cycles

Standards

93/42/EEC Directive on Medical Devices
97/23/EEC Directive on Pressure Equipment
EN 13060 Small Steam Sterilizers
EN 61326, EN 61000 Electromagnetic Compatibility
EN 61010-1, UL 61010-1Safety requirements
EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
