Autoclaves IC-D "Green" Series Class B
Digital benchtop steam sterilizers with Class B pre & post vacuum type
IC-D line autoclaves, Green series.
Identical models to those of the standard IC-D line, but with green structure
Class B digital autoclaves available in 4 different capacities with pre & post vacuum functions.
Equipped with electronic door safety lock.an integrated printer is available as an optional accessory.models of excellent quality, robust and accurate with simple and fast use.
Overview
- Benchtop steam sterilizers with Class B pre & post vacuum type, complies with the European standard EN13060
- These autoclaves require minimal bench space making it an idea sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement
Excellent Performance
- Full automatic table top autoclave with pre-set programs
- Complies with European standard EN13060
- Working very quietly
- In built independent rapid steam generator ensures quick sterilization cycles
- Rapid post sterilization vacuum drying
- With one flash water tank and used one water tank
- LCD screen displaying time, temperature and pressure, process alert and instrument conditions
- User friendly interface
- Self-initialization when work in different altitude
- Multilanguage menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian
Safety and Monitoring
- Double safety protection system prevents the cycle from starting if the door is not correctly locked
- This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber
- Pressure safety valve prevents over pressure in the chamber and steam generator
- The power is automatically cut if a short circuit or electrical fault occurs
- Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator
- Water level main switch in the main tank controlling the min and max water level
- Automatic warning for maintenance
Documentation
- Printer (option): an internal printer is optional for all autoclaves
- USB port : it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically
- Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time
Technical specifications
| Code |
IC/D/GRE208 |
IC/D/GRE212 |
IC/D/GRE218 |
IC/D/GRE223 |
| Model Number |
STE-8-D |
STE-12-D |
STE-18-D |
STE-23-D |
| Chamber Dimension |
Ø170x320 mm |
Ø200x360 mm |
Ø247x350 mm |
Ø247x450 mm |
| Chamber Volume |
8 L |
12 L |
18 L |
23 L |

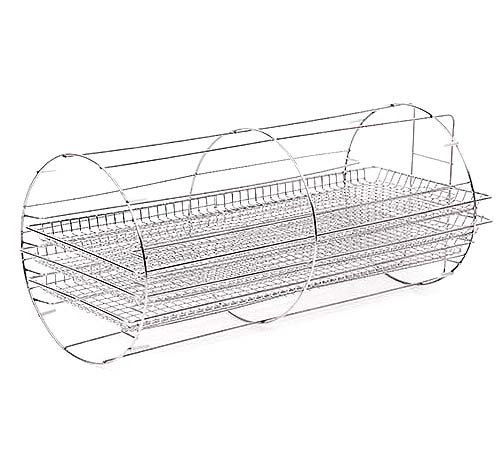

| Number of Trays |
2/ Max. 3 |
2/ Max. 3 |
3/ Max. 4 |
3/ Max. 4 |
| Material of Trays |
Aluminium |
Stainless Steel |
Aluminium |
Aluminium |
| Size of Trays |
130x265 mm |
156x295 mm |
192x285 mm |
192x380 mm |
| Voltage, Freq. |
220/110V, 50/60Hz |
220/110V, 50/60Hz |
220/110v, 50/60Hz |
220/110v, 50/60Hz |
| Power |
2000 w |
2000 w |
2000 w |
2200 w |
| Overall Dimension (WxHxD) |
420x370x525 mm |
420x370x595 mm |
490x455x600 mm |
490x455x690 mm |
| Weight |
37 kgs |
40 kgs |
47 kgs |
53 kgs |
Cycles
| Program |
Temp. [·C] |
Pressure [Mpa] |
Sterilization time [min.] |
| SOLID |
134 |
210 |
4 |
| |
121 |
110 |
20 |
| LIQUID |
134 |
210 |
10 |
| |
121 |
110 |
30 |
| WRAPPED |
134 |
210 |
10 |
| |
121 |
110 |
30 |
| TEXTILE |
134 |
210 |
10 |
| |
121 |
110 |
30 |
| PRION |
134 |
210 |
18 |
| DRYING |
- |
- |
- |
| B&D TEST |
134 |
210 |
3.5 |
| HELIX TEST |
134 |
210 |
3.5 |
| VACUUM TEST |
- |
- |
- |
Standards
- 93/42/EEC Directive on Medical Devices
- 97/23/EEC Directive on Pressure Equipment
- EN 13060 Small Steam Sterilizers
- EN 61326, EN 61000 Electromagnetic Compatibility
- EN 61010-1, UL 61010-1Safety requirements
- EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
