Color Spectrophotometer d/8

With 400÷700nm, high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy

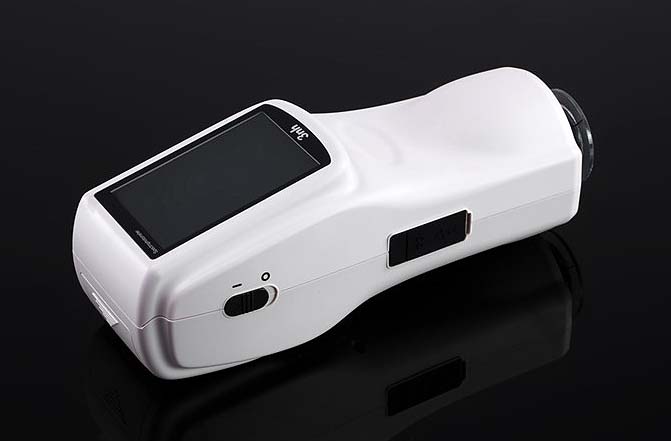

TN/0NS810 portable spectrophotometer uses d/8 structure and comply with CIE No.15, GB/T 3978.

With 400÷700nm, TN/0NS810 features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy.

 It can save 1000 Standards, 15000 Samples and you also can input your own LAB or XYZ value into the instrument.

With SQC8 software, you can do better color control management.

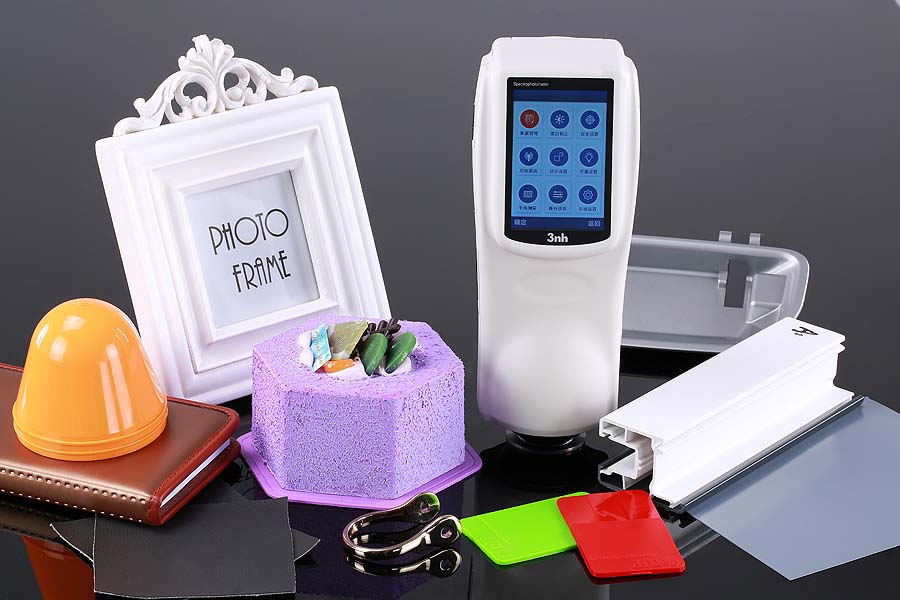

Plus, it is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

Product Features

  • Display complete reflectance rate and input LAB value manually
  • NS810:D/8 structure (diffuse illumination, 8° viewing )
  • 3.5 inch large capacitive touch screen, fully functional touch control
  • 2º/10º degree observe, multiple lights, many color systems
  • The repeatability ΔE*ab is within 0.04, errors is less than 0.2
  • Large capacity storage, more than 15000 data
  • PC software with powerful extension functions
  • 15° oblique angle screen, in line with the human eye observation
  • Oversized integrating sphere, more effective homogenization ray of lights
  • High hardware configuration with a number of innovative technologies

Applications

This colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories.

It can measure reflectance spectrum and other color index precisely.

TN/0NS810 portable spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management.

This colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.

Technical specifications

Code

TN/0NS810

Illumination/observation system

d/8 (diffused illumination, 8-degree viewing angle)
Conforms to CIE No.15, GB/T 3978.

Integrating sphere Size

Φ58mm

Light Source

Combined LED sources

Sensor

Silicon photodiode array

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~200%

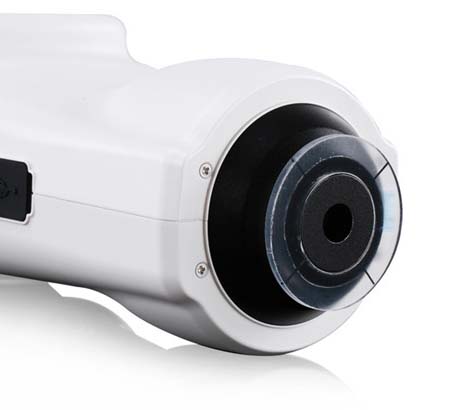

Measuring Aperture

Φ8mm

Color Space

CIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI

Color difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),
CIE2000ΔE*00,ΔE(h)

Other Chromaticity Data

Whiteness - WI(ASTM E313,CIE/ISO,AATCC,Hunter),
Yellowness-YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2°/10°

Illuminant

D65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,
F6,F7,F8,F9,F10,F11,F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 2800 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 15000 Samples

Operating Temperature

0~40℃(32~104°F)

Storage temperature

-20~50℃(-4~122°F)

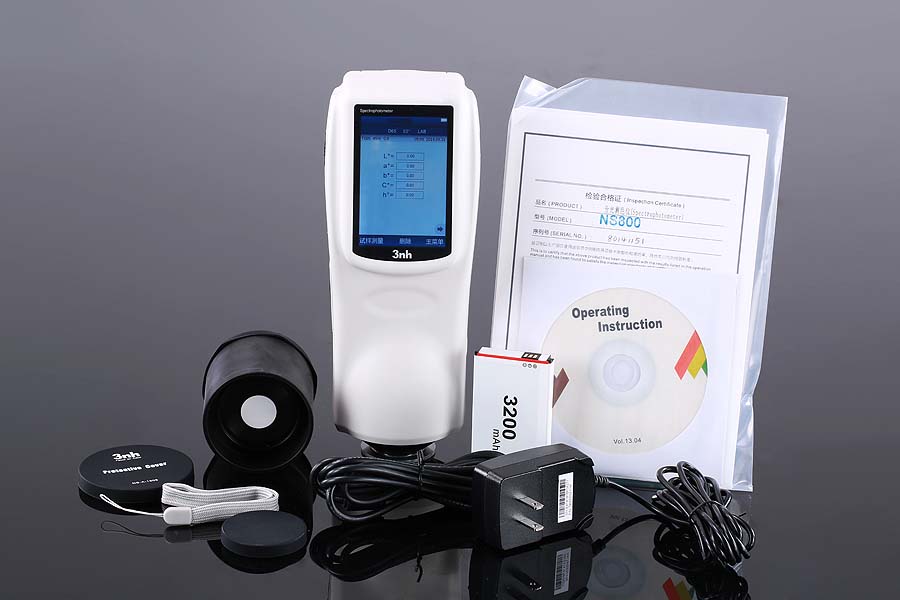

Standard Accessory

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Universal Test Components, Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.
