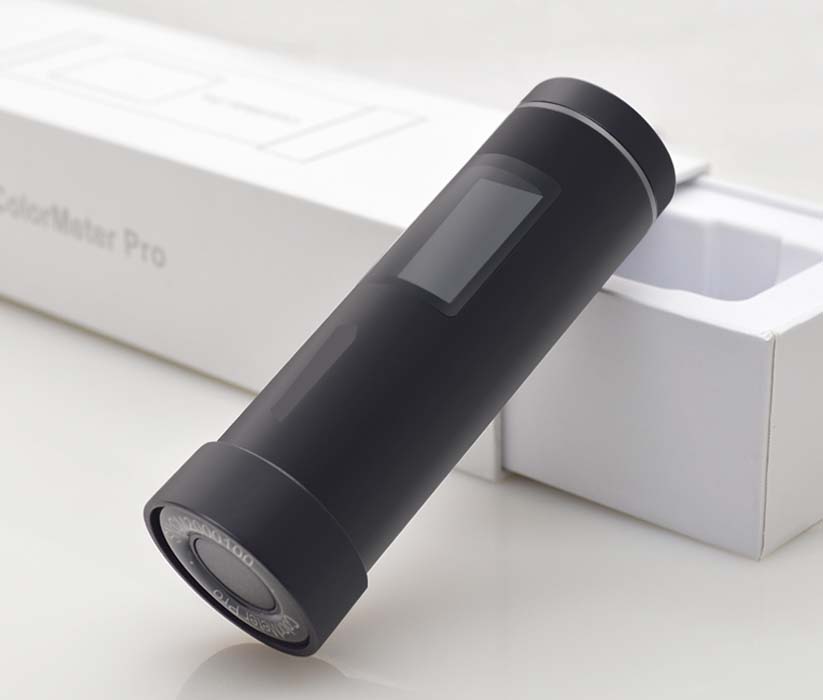

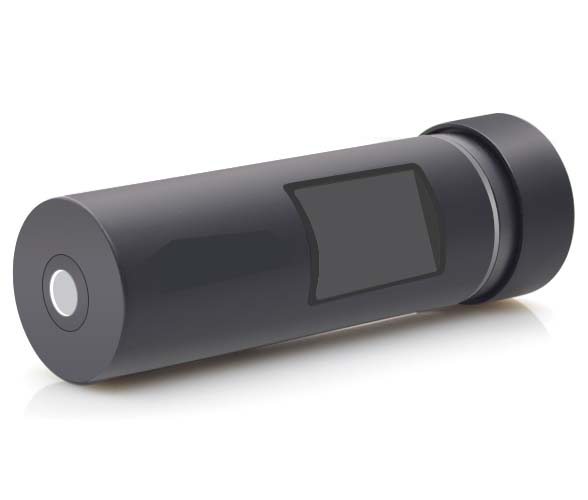

Portable spectrocolorimeter

Colour measuring instrument with Bluetooth connection

Colorimeter and a spectrophotometer.

  • ColorMeter Pro can measure the material surface to get L*a*b,L*Ch,RGB Hex and other color value

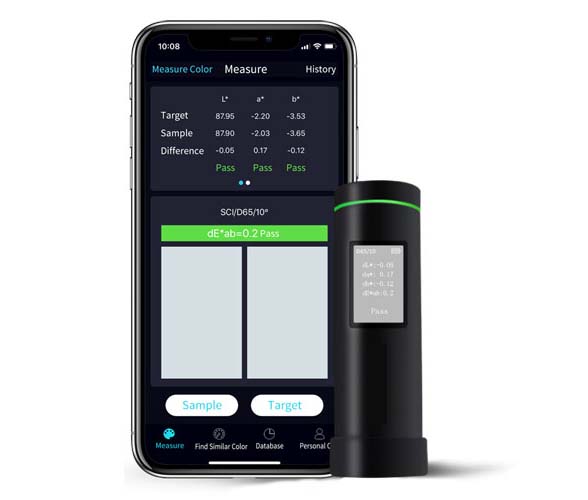

  • Pass or fail judgment can be seen from instrument screen directly
  • ColorMeter Pro can measure whiteness index,yellowness index,color strength color fastness,opacity and other 20 kinds of parameters with 26 kinds of illuminants

Artificial Intelligence for Accurately Measure Color.

  • AI-based color search engine for accurately measure and search color
  • Color can be collected anywhere and anytime
  • ColorMeter Pro is with good inter-instrument agreement for consistent color number searching result in same database with different instruments

Portable and Massive Color Card Database

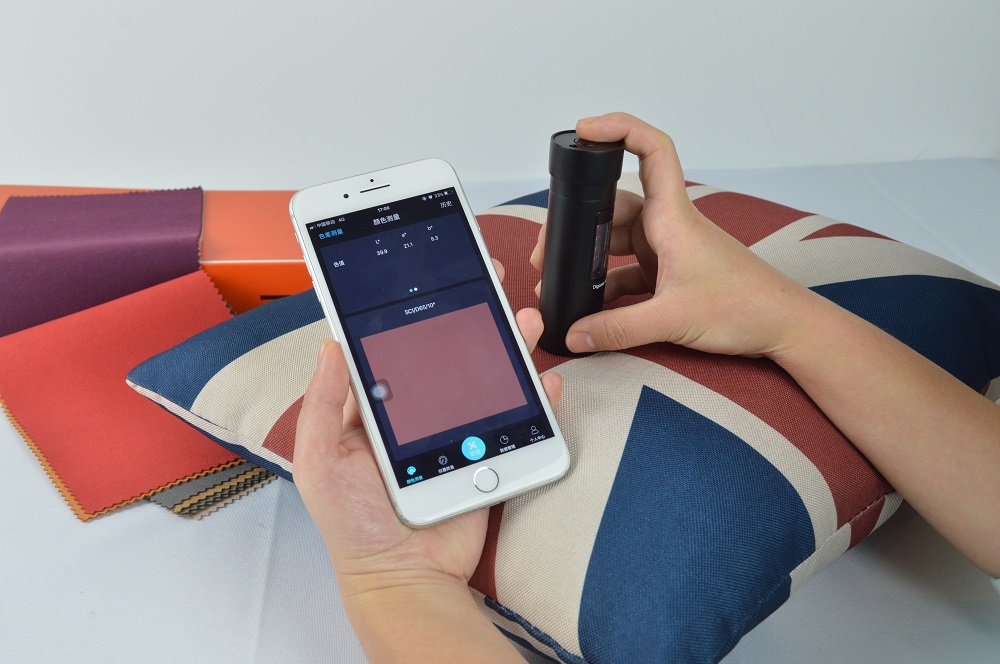

  • Bluetooth to connect with mobile phone APP to create database to upload the color shades of printing,paint,textile color cards
  • No need to carry big and heavy color card, user can find color card database from Colormeter Pro APP and find the closest similar color easier and faster

Simple Operation

  • Auto instrument black and white calibration for easier and correct color test
  • 1.14 inches IPS instrument screen to show color and color difference value
  • Long battery life,continuous test 10,000 times for single charge
  • Exquisite and compact instrument body for easily carrying

Technical specifications

Dati tecnici

CodeCM/PRO/SP
Illumination and Viewing SystemD/8, SCI (specular component included)
Color Spaces and IndicesReflectance,CIE-Lab,CIE-LCh,Hunter Lab,CIE-Luv,XYZ,Yxy,RGB,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00)
Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),Yellowness Index
(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness Index(My,dM),Staining Fastness,Color Fastness,Tint(ASTM
E313-00),Color Density CMYK(A,T,E,M),Metamerism Index Milm,Munsell,Opacity,Color Strength
Light SourceLED (Full Wavelength Balanced LED Light Source)
Measure Aperture8 mm
Wavelength Interval10 nm
RepeatabilityΔE≤0.1 (when a white tile is measured 30 times at 5-second intervals after calibration)
Measurement Time1 s
Observer2°, 10°
IlluminantsA,B,C,D50,D55,D65,D75,
F1,F2,F3,F4,F5,F6,F7,F8,F9,
F10,F11,F12CWF,U30,DLF,
NBF,TL83,TL84,U35
InterfaceUSB /  Bluetooth
Display ScreenIPS Full Color Screen (135*240,1.14 inches)
Battery4.2V / 760mAh,Rechargeable,10,000 continuous tests
LanguageEnglish and Chinese
CalibrationAuto
Software SupportAndroid,iOS,Windows
Weight90 g
DimensionsØ 31×102 mm
