Code
|

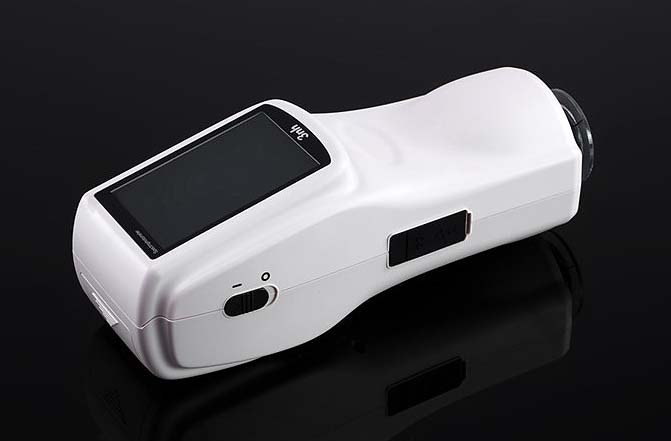

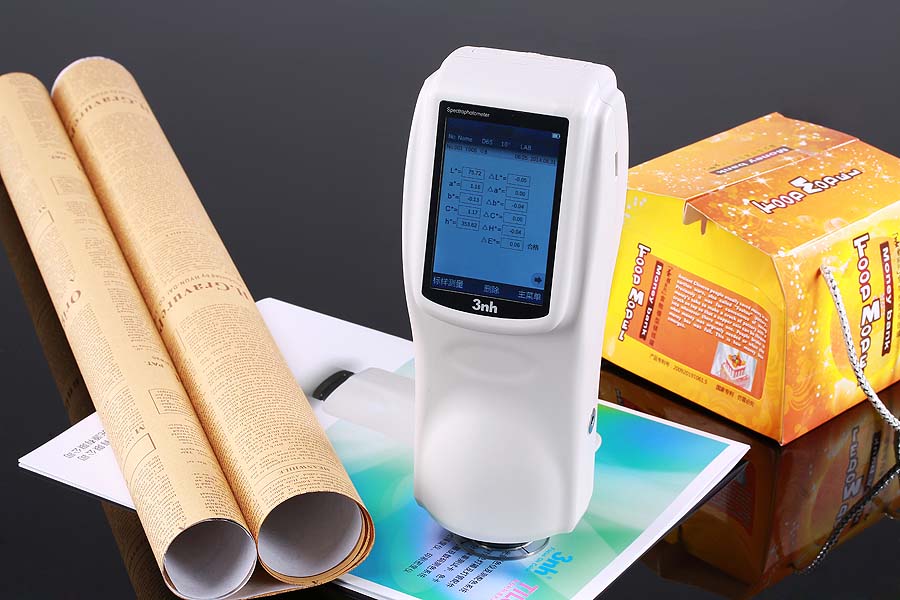

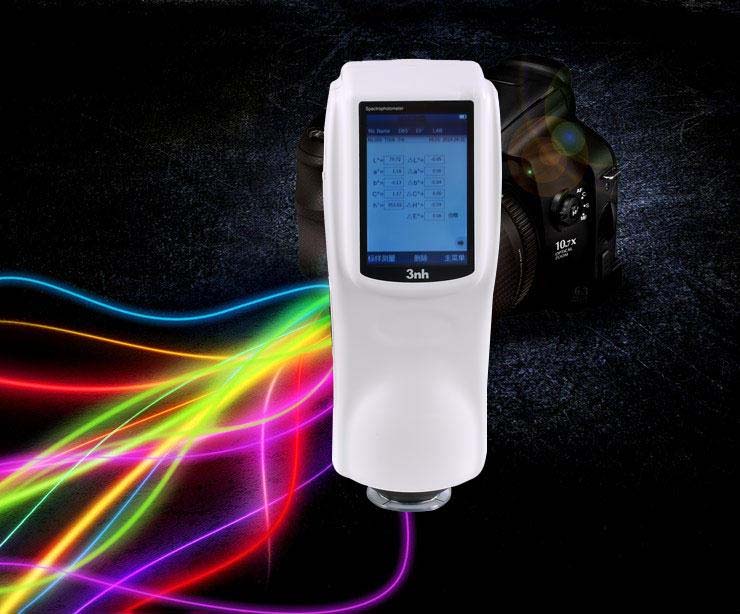

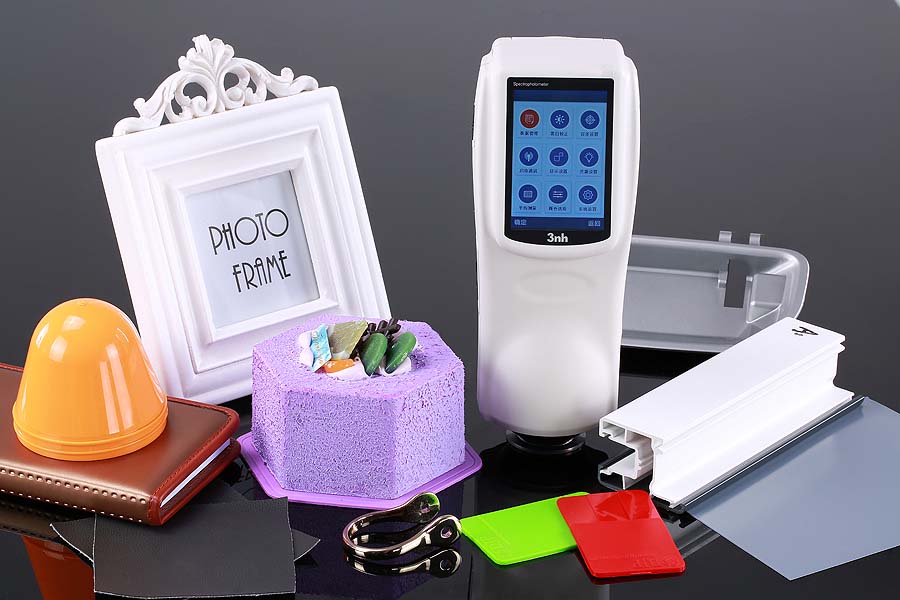

TN/0NS820 Small Aperture Handheld Spectrophotometer
|
|
Illumination/observation system
|
d/8 (diffused illumination, 8-degree viewing angle)
Conforms to CIE No.15, GB/T 3978.
|
|
Integrating sphere Size
|
Φ58mm
|
|
Light Source
|
Combined LED sources
|
|
Sensor
|
Silicon photodiode array
|
|
Wavelength range
|
400~700nm
|
|
Wavelength pitch
|
10nm
|
|
Reflectance range
|
0~200%
|
|
Measuring Aperture
|
Φ4mm
|
|
Color Space
|
CIE LAB, XYZ, Yxy, LCh, CIE LUV，LAB&WI&YI
|
|
Color difference Formula
|
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*cmc
(l:c),CIE2000ΔE*00，ΔE(h)
|
|
Other Chromaticity Data
|
Whiteness - WI(ASTM E313，CIE/ISO,AATCC,Hunter)，Yellowness-YI(ASTM D1925，ASTM 313),
TI(ASTM E313，CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness, Color Strength, Opacity
|
|
Observer
|
2°/10°
|
|
Illuminant
|
D65,D50,A,C,D55,D75,F1,F2,F3,
F4,F5,F6,F7,F8,F9,F10,F11,F12
|
|
Display Data
|
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
|
|
Measurement Time
|
1.5s
|
|
Repeatability
|
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
|
|
Inter Instrument Agreement
|
Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
|
|
Dimension
|
L*W*H=90*77*230mm
|
|
Weight
|
600g
|
|
Battery
|
Li-ion battery. 2800 times within 8 hours.
|
|
Lamp Life
|
5 years, more than 1.6 million measurements
|
|
Display Screen
|
TFT 3.5inch, Capacitive Touch Screen
|
|
Interface
|
USB/RS-232
|
|
Data Memory
|
1000 Standards, 15000 Samples
|
|
Operating Temperature
|
0~40℃（32~104°F）
|
|
Storage temperature
|
-20~50℃（-4~122°F）
|
|

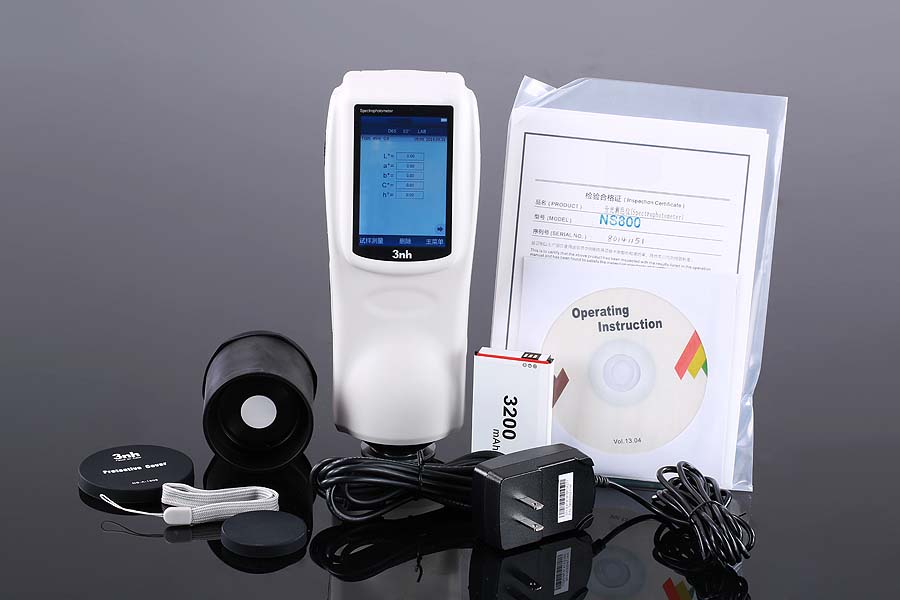

Standard Accessory
|
Power Adapter, Li-ion Battery, Operating Instruction, SQC8 software, White and Black Calibration Cavity, Protective Cover and Wrist Strap
|
|
Optional Accessory
|
Universal Test Components, Micro Printer, Powder Test Box
|
|
Notes
|
The specifications are subject to change without notice.
|
