Portable mini colorimeter with connection to App via Bluetooth
Provides color measurement and comparison function with pocket size
Pocket-sized mini colorimeter with Bluetooth connection via App, ideal for accurate measurements in the field in all areas where quick direct or comparison color measurement is needed.
- Supplied complete with App to install on cell phone with various color measurement functions
- Ideal for quality color measurement and comparison protocols of high accuracy
- Pocket size, easy to carry, ideal for field applications by users who need quick and accurate color measurements
- Instant data processing and sending capabilities; real-time data of the measurement taken can be provided to a customer
This portable colorimeter of the “intelligent” series is designed to provide users with an economical tool for measuring and comparing the color of materials in industries where this parameter is crucial.

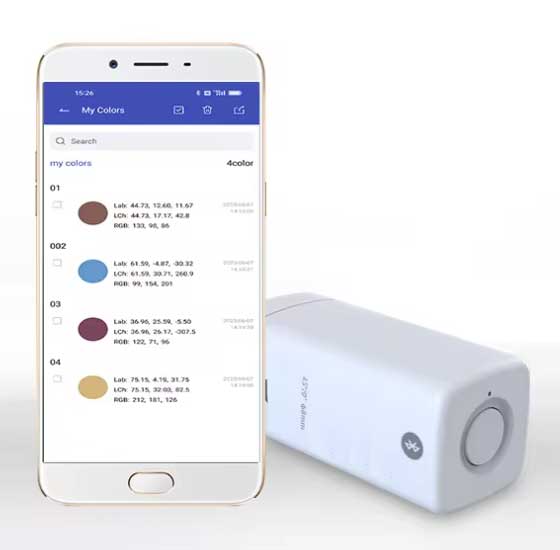

The instrument is equipped with Bluetooth connection and can be configured with a powerful App; after connecting to the App via Bluetooth, the colorimeter can make quick color measurements, color comparisons on the mobile interface quickly and accurately.
It also has some built-in electronic tables of standard colors that allow instant matching and comparison.
Immediate sharing of results with colleagues, clients and managers is possible.
A tool with simple and intuitive use, perfect for measuring and managing product color and for quality control of color differences in printing on various media.
Applications
- Direct color measurement
- Comparison of colors

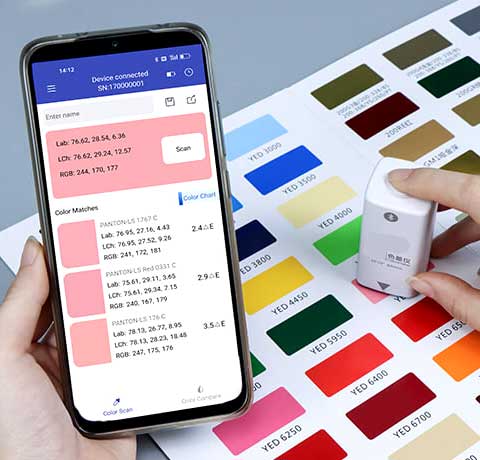

- Comparison between a measured color and reference colorimetric tables

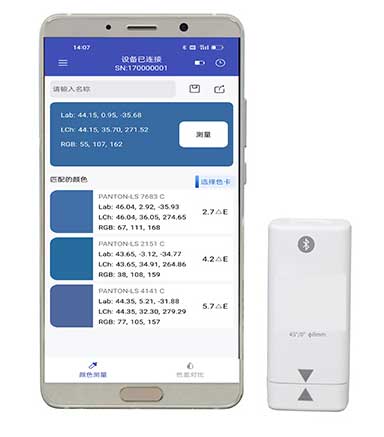

In addition to direct color measurement, the App allows several modes of operation; in the color comparison interface, it is possible to select the standard color from the reference colorimetric tables or enter color data such as laboratory values to identify a color and then use it for comparison.

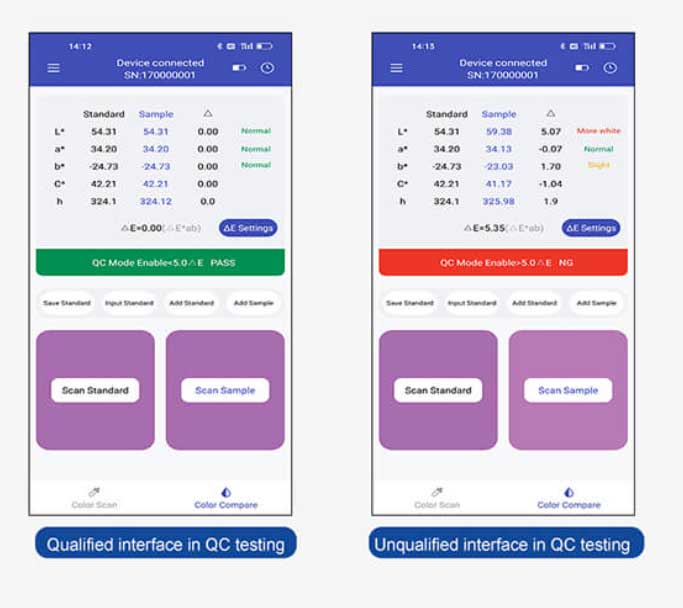

A QC test function can be activated to perform batch detection and set a difference threshold from colorimetric coordinates to determine acceptable limits of dissonance from the sample.
Four built-in electronic color folders for quick management of comparison measurements.
The colorimeter can match the three closest color codes with more than 90% matching accuracy.
Large storage space facilitates measurement; a large amount of colorimetric measurements can be stored and measured anytime, anywhere.
Supports multichannel color sharing. The colorimeter can import and export color data via QQ, WeChat, e-mail and other social media.
Multiple color spaces and color difference formulas. The color difference meter has seven color spaces such as LabRGBCMYK and seven color difference formulas to choose from, which meet the color measurement needs of various industries.
Technical specifications
| Illumination geometry | 45/0 (45°annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 8 mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | 1 s |
| Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1) |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03
(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) |
| Dimensions | 31,7×31,7×70,4 mm |
| Weight | 50 g |
| Power supply | Rechargeable lithium battery 3.7V@600mAh,can continuously measure 10,000 times under full power |
| Operating temperature | 0~45℃, 0~85%RH (no condensation) |
| Data transmission | USB (Type-C) |
| Code | Description |
| LHS/000/170 | Portable colorimeter with connection to App via Bluetooth |
