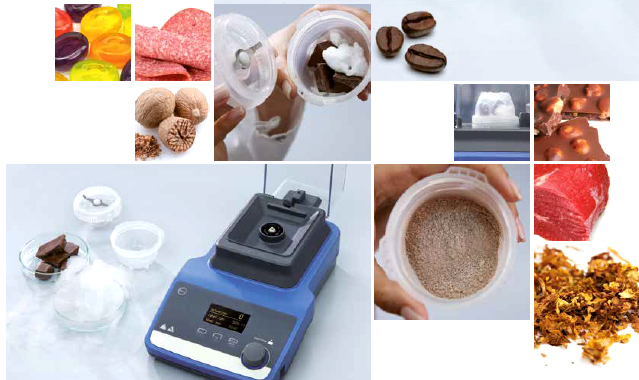

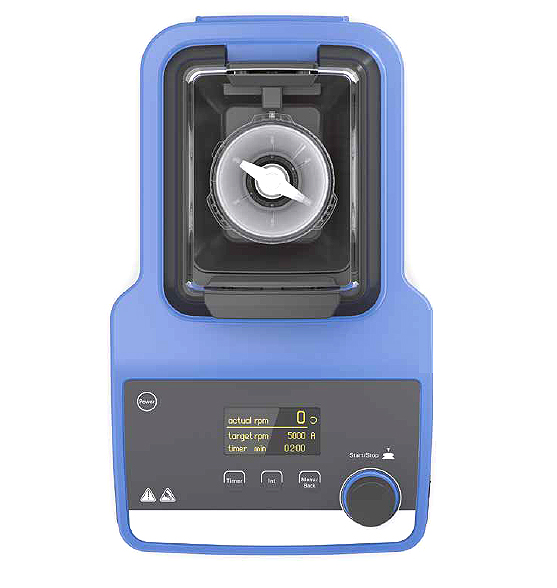

Digital tube mill control capacity 40 ml

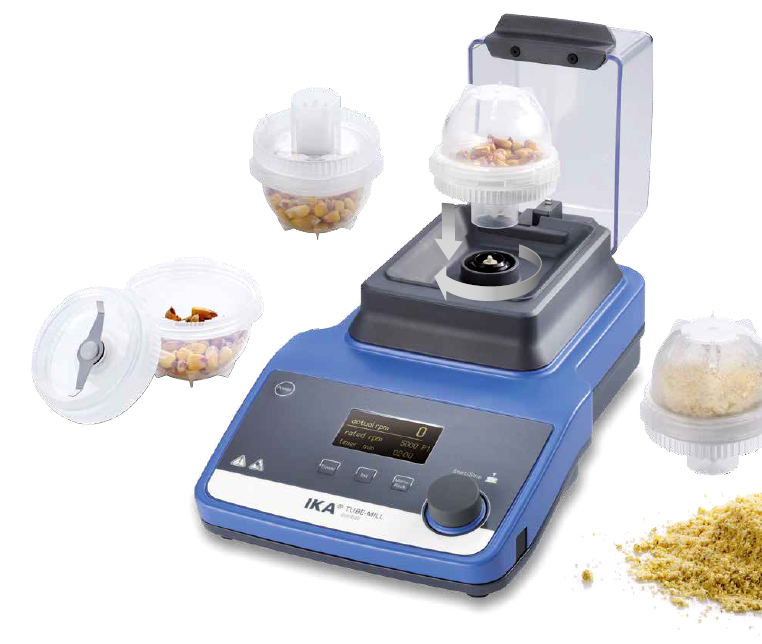

Batch mill with disposable and multi-use grinding chamber

Tube Mill control.

Batch mill with disposable and multi-use grinding chamber.

Eliminates possibility of cross-contamination and the effort of cleaning.

The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time.

The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials.

It is especially suitable for grinding seeds, such as corn and wheat.

During development of the mill, particular emphasis was placed on security.

The mill will only start when the hood is closed.

When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start.

During operation, the grinding chamber cannot be opened.

The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.

Clearly arranged, multilingual OLED-display
Timer, adjustable from 5 s to 3 min
USB interface for control and documentation of all the parameters
Interval operation available
Infinitely variable speed from 5000 to 25000 rpm
Various operating modes
Adjustable safety speed
Adjustable safety time
Programmable and storable test conditions
Error Code Display
Reproducible test results
Easy operation with touch keypad
Dust proof sealed housing
Quiet operation

Technical Data

Process type	batch
Operating principle	cutting/impact
Motor rating input	100 W
Motor rating output	80 W
Speed range	5000 - 25000 rpm
Speed deviation	2 ±%
Circumferential speed max.	65 m/s
Useable volume max.	40 ml
Feed hardness max.	5 Mohs
Feed grain size max.	10 mm
Power-ON time	3 min
Mill feed can be cooled in milling chamber with dry ice	yes
Dimensions (W x H x D)	180 x 170 x 300 mm
Weight	2.7 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 30
USB interface	yes
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	100 W

Accessories

Code	Description	Qty

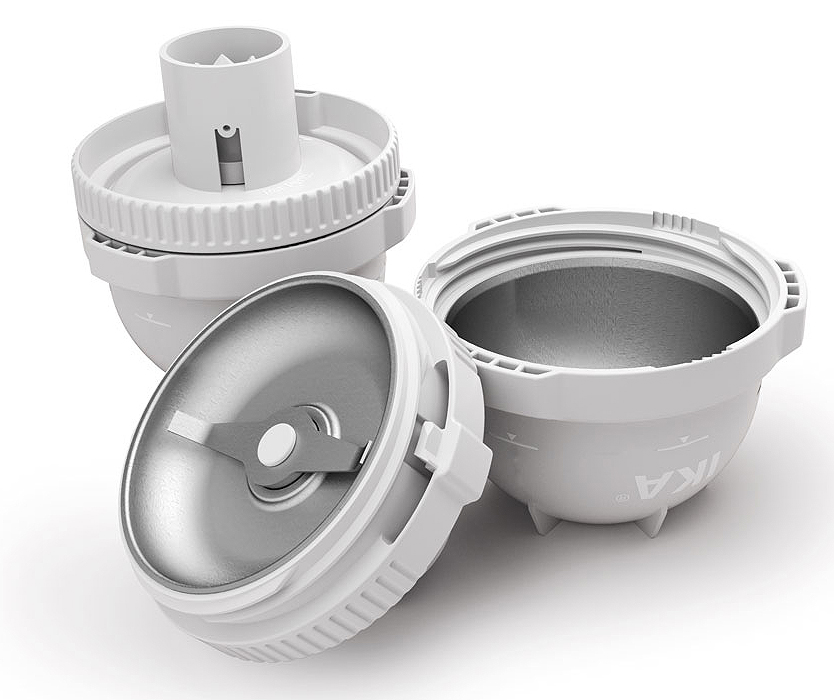

IK/2000/3165	Multi-use Milling Tube MMT 40.1 The Multi-use Milling Tube MMT40.1 with a maximum volume of 40 ml can be used and cleaned in a dishwasher multiple times. The package includes a rich set of spare parts so that wearing parts can be replaced if necessary. Therefore it is possible to carry out a number of experiments with the grinding chamber depending on the nature of the sample. Delivery: 1 x MMT 40, 25 x sealing, 5 x beater, 5 x coupling	1

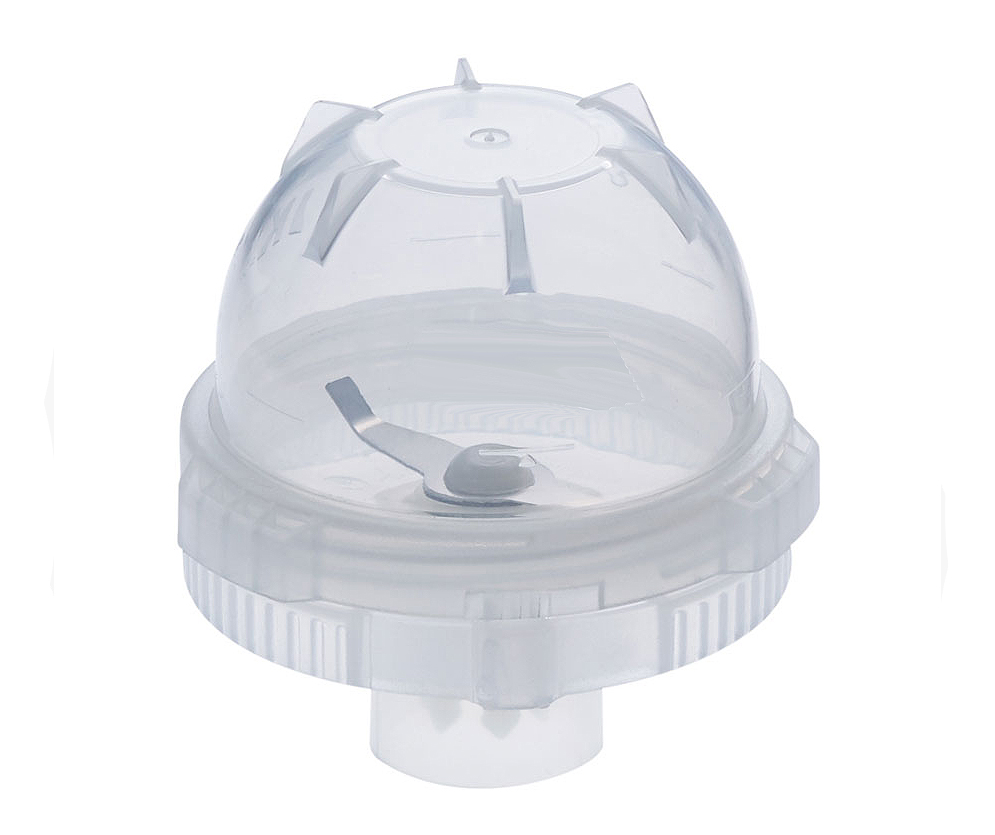

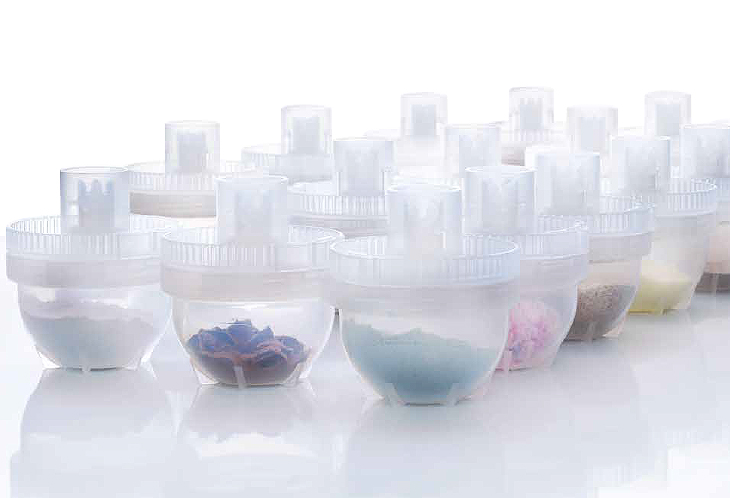

IK/0442/5000	Disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time. Useful volume: 40 ml Quantity: 10 pieces/pack Material grinding chamber: PP	10
IK/2000/1173	The disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time Useful volume: 40 ml Quantity: 100 pieces/pack Material grinding chamber: PP	100

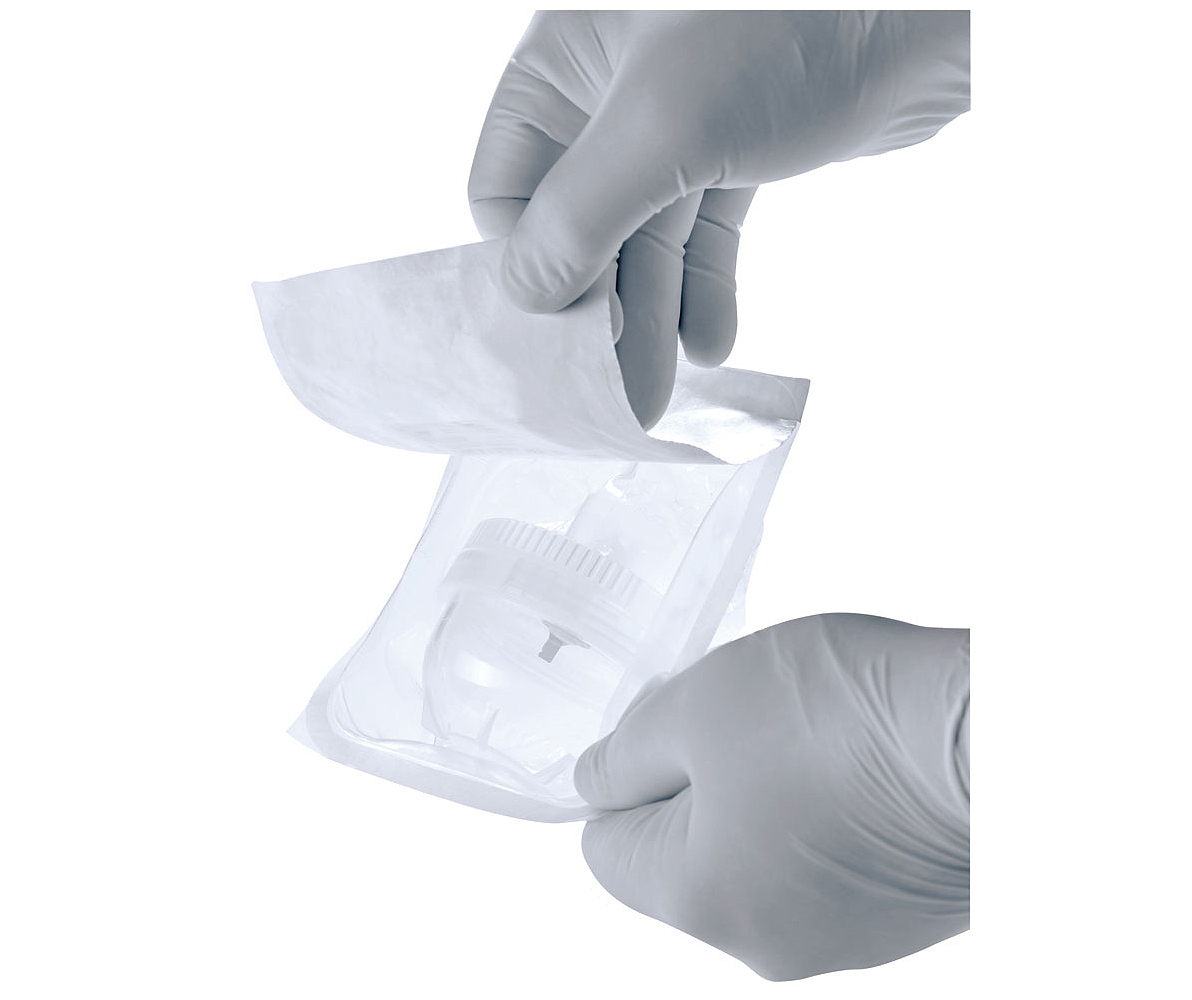

IK/2000/1984	The sterile disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time Useful volume: 40 ml Quantity: 10 pieces/pack Material grinding chamber: PP	10

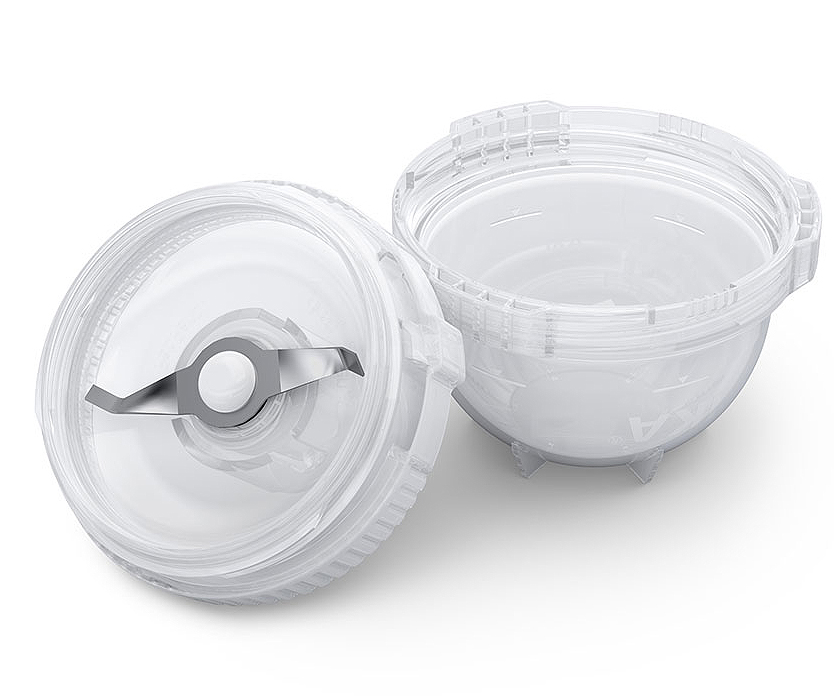

IK/2001/7838	A new grinding/milling chamber extends the application range of the IKA TubeMill control. Its stainless steel beater is bended in a 45° angle. Advantages: Especially for mixing of fine powders Its bended beater creates a more effective flow in the chamber which leads to an even better grinding result Recommended mixing speed 10.000 rpm Useful volume: 40 ml Quantity: 10 pieces/pack Material grinding chamber: PP	10
IK/2001/1531	A new grinding/milling chamber extends the application range of the IKA TubeMill control. Its stainless steel beater is bended in a 45° angle. Advantages: Especially for mixing of fine powders Its bended beater creates a more effective flow in the chamber which leads to an even better grinding result Recommended mixing speed 10.000 rpm Useful volume: 40 ml Quantity: 100 pieces/pack Material grinding chamber: PP	100

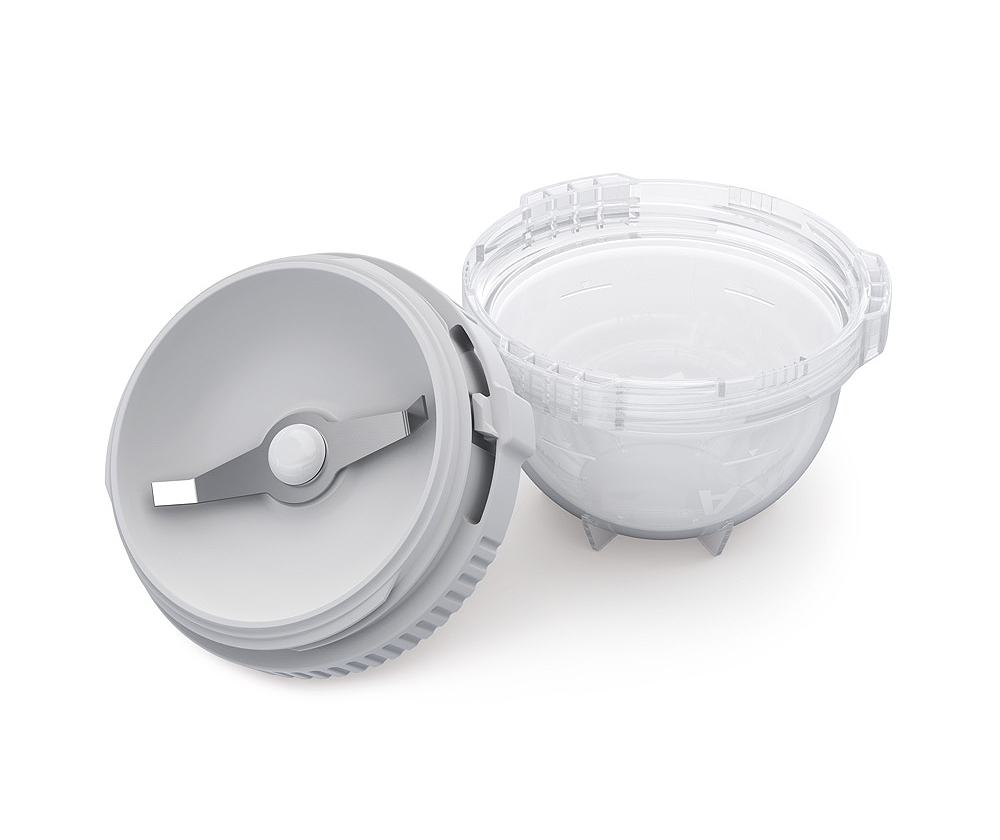

IK/2001/5380	Disposable grinding chamber with titanium beater Volume: 40 ml 10 pc.	10

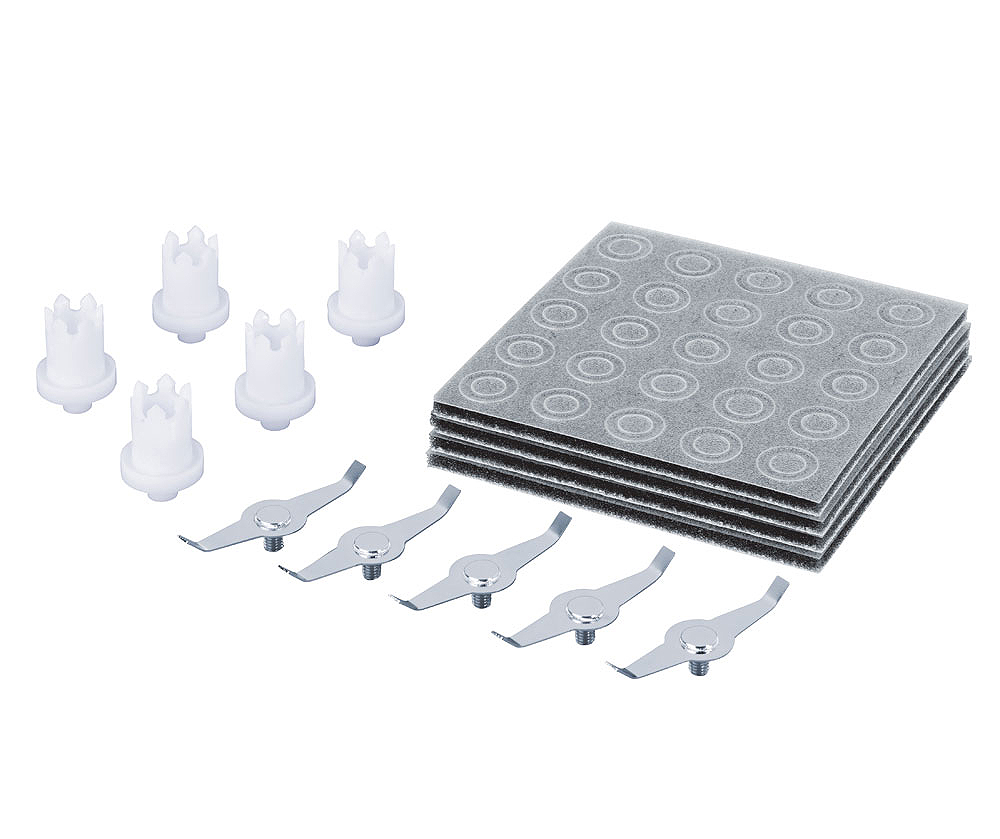

IK/2000/3378	Abrasion set A-MMT 40.100 Delivery: 100 x sealing, 10 x beater, 10 x coupling	Set

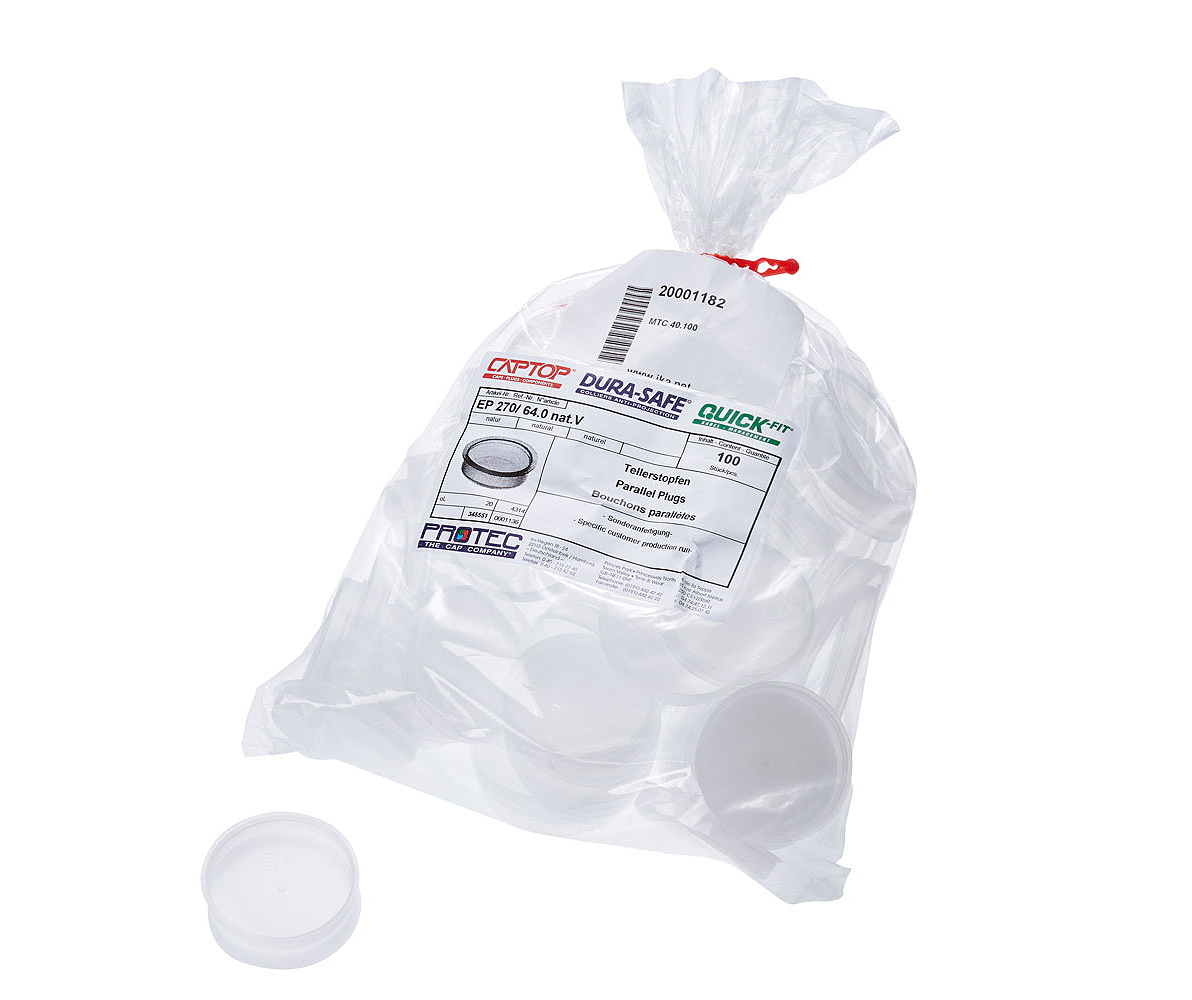

IK/2000/1182	Cover 100 pieces	100
