Digital tube mill control capacity 40 ml

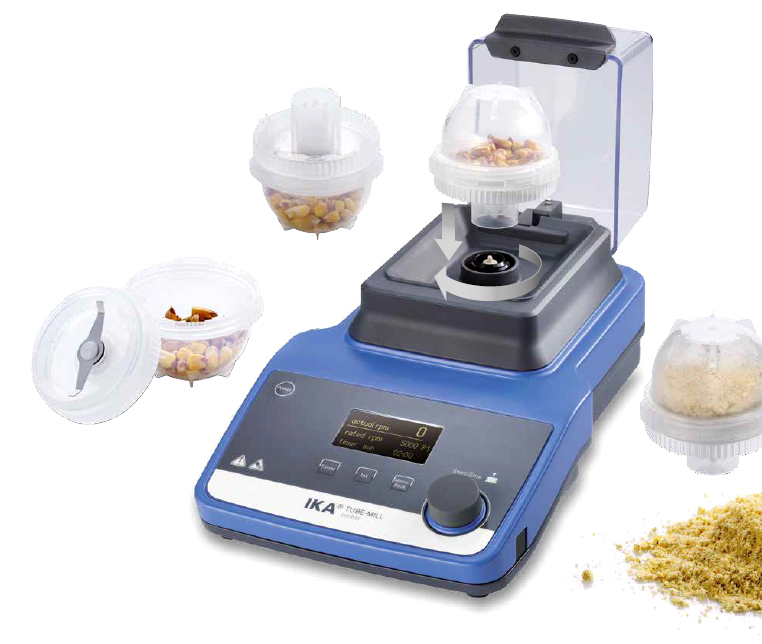

Batch mill with disposable and multi-use grinding chamber
Tube Mill control.
Batch mill with disposable and multi-use grinding chamber.
Eliminates possibility of cross-contamination and the effort of cleaning.
The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time.
The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials.
It is especially suitable for grinding seeds, such as corn and wheat.
During development of the mill, particular emphasis was placed on security.
The mill will only start when the hood is closed.
When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start.
During operation, the grinding chamber cannot be opened.
The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.

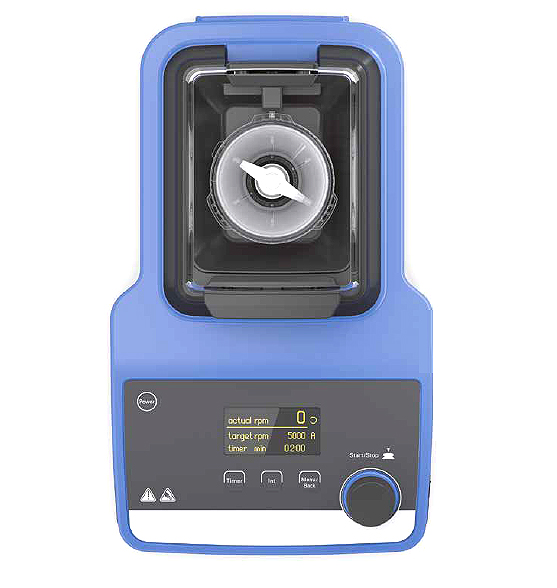

- Clearly arranged, multilingual OLED-display
- Timer, adjustable from 5 s to 3 min
- USB interface for control and documentation of all the parameters
- Interval operation available
- Infinitely variable speed from 5000 to 25000 rpm
- Various operating modes
- Adjustable safety speed
- Adjustable safety time
- Programmable and storable test conditions
- Error Code Display
- Reproducible test results
- Easy operation with touch keypad
- Dust proof sealed housing
- Quiet operation
| Process type |
batch |
| Operating principle |
cutting/impact |
| Motor rating input |
100 W |
| Motor rating output |
80 W |
| Speed range |
5000 - 25000 rpm |
| Speed deviation |
2 ±% |
| Circumferential speed max. |
65 m/s |
| Useable volume max. |
40 ml |
| Feed hardness max. |
5 Mohs |
| Feed grain size max. |
10 mm |
| Power-ON time |
3 min |

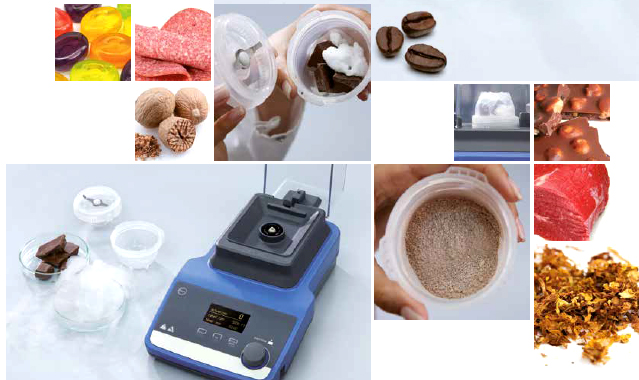

| Mill feed can be cooled in milling chamber with dry ice |
yes |
| Dimensions (W x H x D) |
180 x 170 x 300 mm |
| Weight |
2.7 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 30 |
| USB interface |
yes |
| Voltage |
220 - 240 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
100 W |
Accessories
| Code |
Description |
Qty |
| IK/2000/3165 |
Multi-use Milling Tube MMT 40.1
The Multi-use Milling Tube MMT40.1 with a maximum volume of 40 ml can be used and cleaned in a dishwasher multiple times. The package includes a rich set of spare parts so that wearing parts can be replaced if necessary. Therefore it is possible to carry out a number of experiments with the grinding chamber depending on the nature of the sample.
Delivery: 1 x MMT 40, 25 x sealing, 5 x beater, 5 x coupling |
1 |
| IK/0442/5000 |

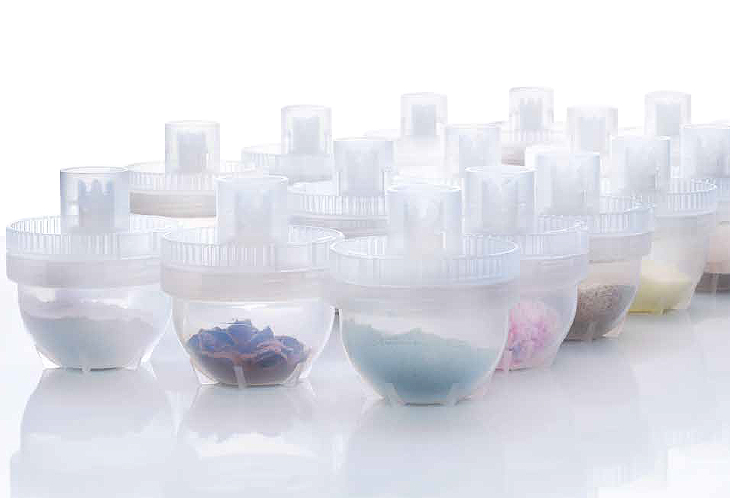

Disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time.
Useful volume: 40 ml
Quantity: 10 pieces/pack
Material grinding chamber: PP |
10 |
| IK/2000/1173 |
The disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time
Useful volume: 40 ml
Quantity: 100 pieces/pack
Material grinding chamber: PP |
100 |
| IK/2000/1984 |
The sterile disposable grinding chamber with a stainless steel beater reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 (manganese or apatite: 5 Mohs). The chamber is made of transparent plastic so grinding tests can be observed at any time
Useful volume: 40 ml
Quantity: 10 pieces/pack
Material grinding chamber: PP |
10 |
| IK/2001/7838 |
A new grinding/milling chamber extends the application range of the IKA TubeMill control.
Its stainless steel beater is bended in a 45° angle.
Advantages:
- Especially for mixing of fine powders
- Its bended beater creates a more effective flow in the chamber which leads to an even better grinding result
- Recommended mixing speed 10.000 rpm
Useful volume: 40 ml
Quantity: 10 pieces/pack
Material grinding chamber: PP |
10 |
| IK/2001/1531 |
A new grinding/milling chamber extends the application range of the IKA TubeMill control.
Its stainless steel beater is bended in a 45° angle.
Advantages:
- Especially for mixing of fine powders
- Its bended beater creates a more effective flow in the chamber which leads to an even better grinding result
- Recommended mixing speed 10.000 rpm
Useful volume: 40 ml
Quantity: 100 pieces/pack
Material grinding chamber: PP |
100 |
| IK/2001/5380 |
Disposable grinding chamber with titanium beater
Volume: 40 ml
10 pc. |
10 |
| IK/2000/3378 |
Abrasion set A-MMT 40.100
Delivery: 100 x sealing, 10 x beater, 10 x coupling |
Set |
| IK/2000/1182 |
Cover
100 pieces |
100 |
