Disc rotators JL Series
Analog model range 20÷80 rpm full configuration

€ 790.00
iva esc.

Disc rotator

Analog model in the complete clamps configuration

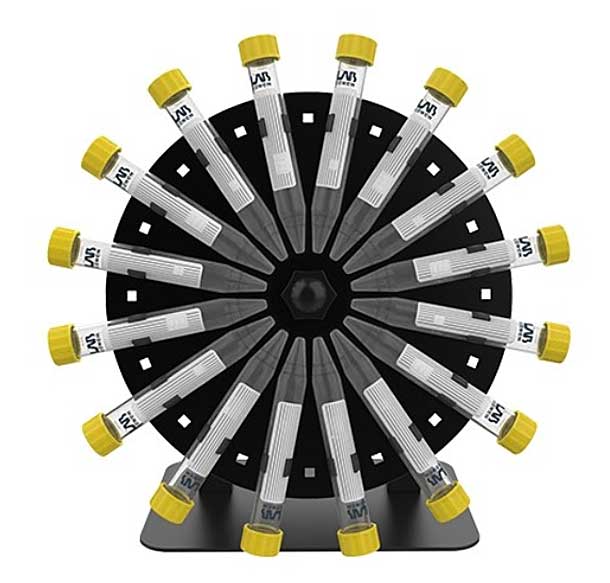

Analog turntable stirrer ideal for rotary mixing of a wide range of test tubes of different diameters.

Wide selection of clamps provided to accommodate tubes in the 1.5÷50 ml range
Rotary speed adjustment with knob
Ideal model for accurate mixing of biological samples in different types of tubes used in a wide range of applications such as immunoprecipitations, prevention of blood clotting in hematology, for diagnostic protocols etc. etc.

Technical specifications

Model	Analog with continue control knob
Motor	Brush motor
Motion type	Rotating on plate
Speed range	20÷80 rpm

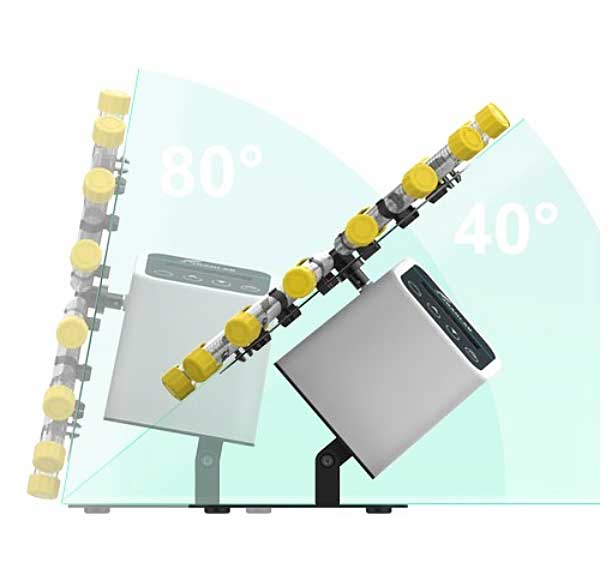

Angle of inclination	40÷80°
	Load capacity Full configuration of clamp sets		8 x 50 ml centrifuge tubes 6 x 15 ml centrifuge tubes 24 x1,5/2 ml microcentrifuge tubes 6 x 10 ml blood collection tubes 24 x 1.5/2ml blood collection tubes
Timer	NO
Power supply	AC 100-220V, 50/60Hz
Power	25 W
Equipment	Complete with configuration clamps, power supply and user manual
Operating conditions	5÷40°C / 80% U.R.
Dimensions	230x180x265 mm

To order

Code	Description
JL/RMO/080	Disk rotator - Analog
