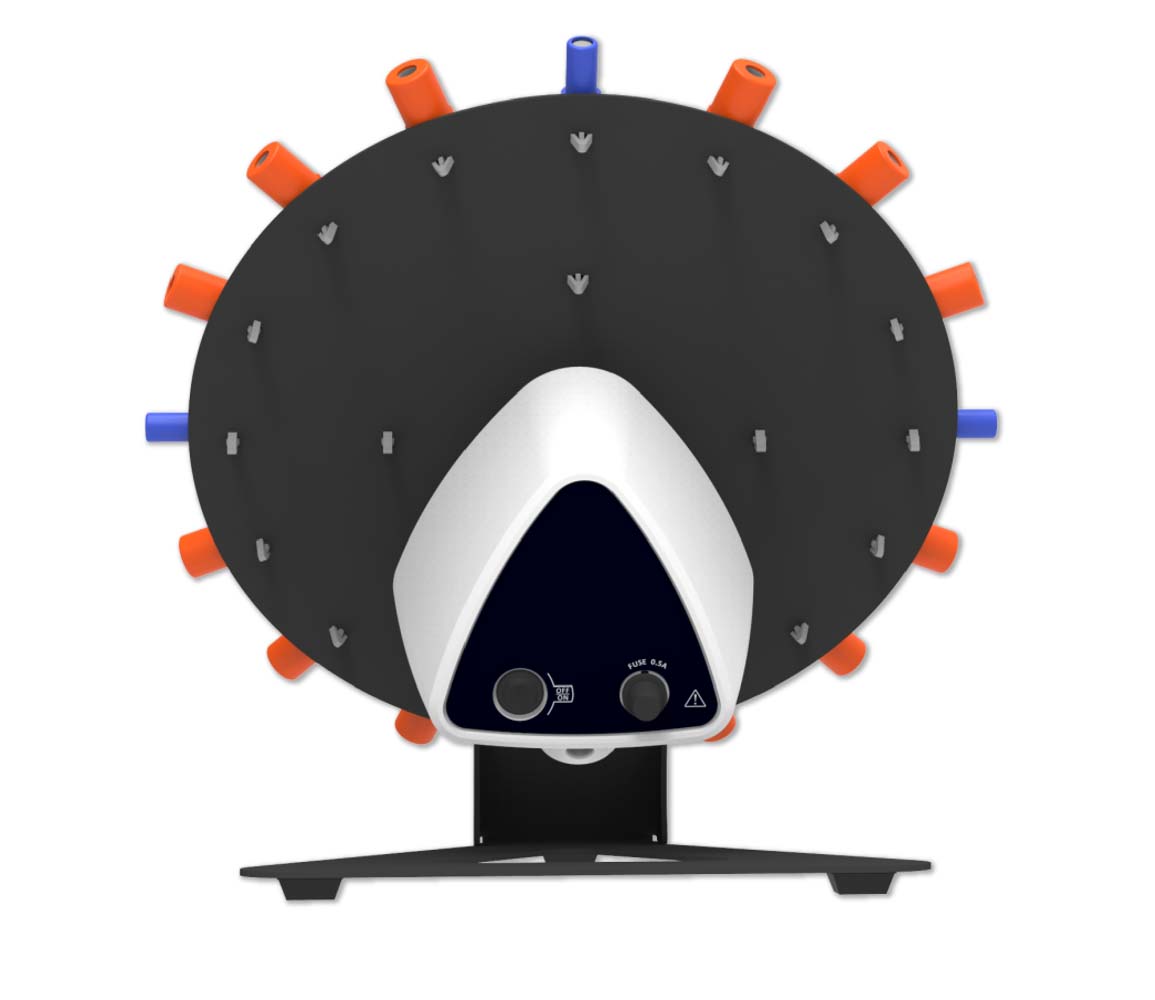

Disc rotator fixed speed 30 rpm

Blood tube rotator, fixed speed of 30 rpm

Fixed speed (30 rpm) analog blood tube disc rotator.

Features

  • AC synchronous motor for noiseless operation.
  • Accommodate upto 4 ESR Tubes & 12 Blood collection tubes
  • Circular rotating action gives gentle but effective mixing
  • Fix speed of 30 RPM with an accuracy of +/-2 RPM
  • Continuous / infinite mode of operation
  • Fix disc plate angle of 38 degrees
  • Robust construction with strong metal from design
  • Maximum operational weight capacity of 1.5kgs
  • Compact saves bench space design
  • Protection class of IP 21
  • Easy to remove and install disc plates for replacement and
    cleaning
  Robust construction with strong metal from design
  AC synchronous motor for noiseless operation.
  Fix speed of 30 RPM with an accuracy of +/-2 RPM
  Rubber feet for stable operation

Technical specifications

Code NT/DR0/016
Capacity 16 Tubes (12 Blood Collection Tubes + 4 ESR Tubes)
Motor Type AC Synchronous
Variable Speed Fix Speed of 30 RPM
Run Time Continuous / Infinite
Speed Accuracy +/-2 RPM
Angle of Disc Plate Fix angle of 38°
Noise Level Noiseless operation
Weight (Capacity) 1.5 kg
Dimension (W x D x H) 278 x 252 x 183 mm
Protection class IP 21
