Heater/Mixer with one fixed block 24×2,0 ml

Programmable ramps allow for automatic execution of mixing and heating tasks

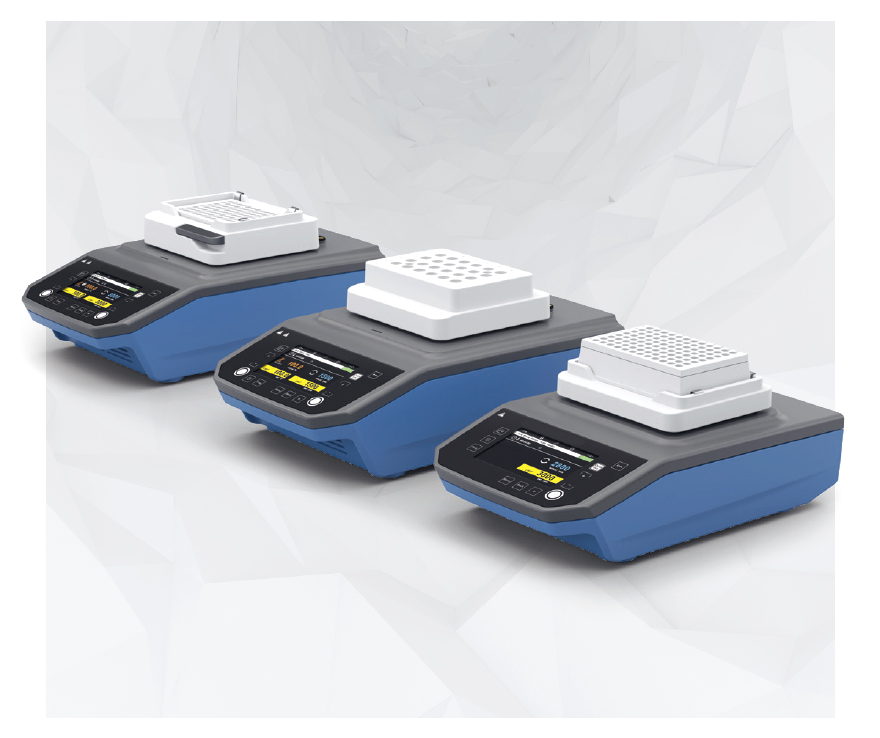

This heater/mixer is part of a new and powerful product family of thermoshakers available.

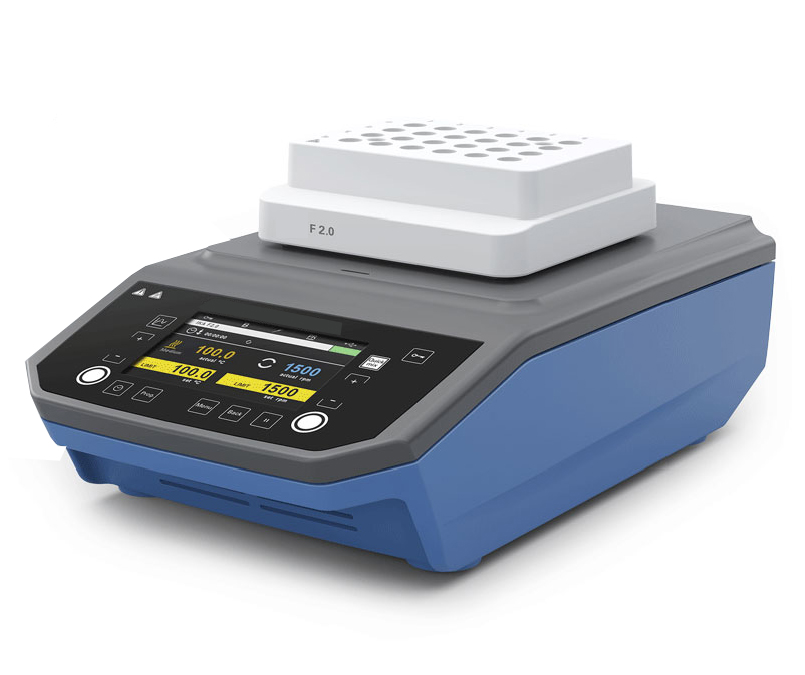

This instrument mixes and heats with a fixed insert for 24 x 2,0 ml tubes.

Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications.

No cross-contamination and an optimal mixing result.

In addition, it comes with numerous user-friendly features:

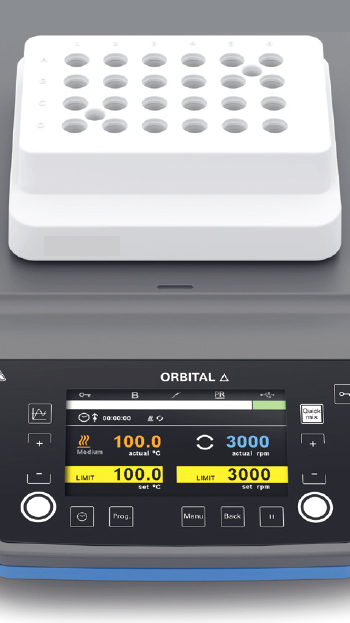

Large and clear display with a convenient menu structure allows for intuitive operation
Speeds of up to 1,500 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
Two different speed modes for gentle heating of the samples
Programmable ramps allow for automatic execution of mixing and heating tasks
Smart speed adjustment according to insert, attachment and filling volume
Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness

Technical specifications

Code	IK/1000/6258
Type of movement	orbital
Shaking stroke	3 mm
Maximun load	0.3 kg
Permissible ON time	100 %
Speed min (adjustable)	300 rpm
Speed range	0 - 1500 rpm
Speed display	TFT
Speed deviation	30 ±rpm
Speed control	10 RPM Steps
Timer	yes
Timer display	TFT
Time setting min.	1 s
Time setting max.	6000 min
Operating mode	timer, continuous and program operation
Heating temperature range	room temp. +4° - 100 °C
Heat output	100 W
Heat control	TFT
Set temperature resolution	1 ±°C
Temperature control accuracy	0.5 ±°C
Temperature stability	0.5 °C
Temperature homogenity	0.5 (@ 20°C ... 45°C); 1.5 ±°C
Heating rate	11 °C/min
Temperature display	yes
Number of reaction vessels	24x 2,0 ml
Dimensions (W x H x D)	216 x 158 x 351 mm
Weight	9.2 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
USB interface	yes
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	240 W
Power input max.	240 W
