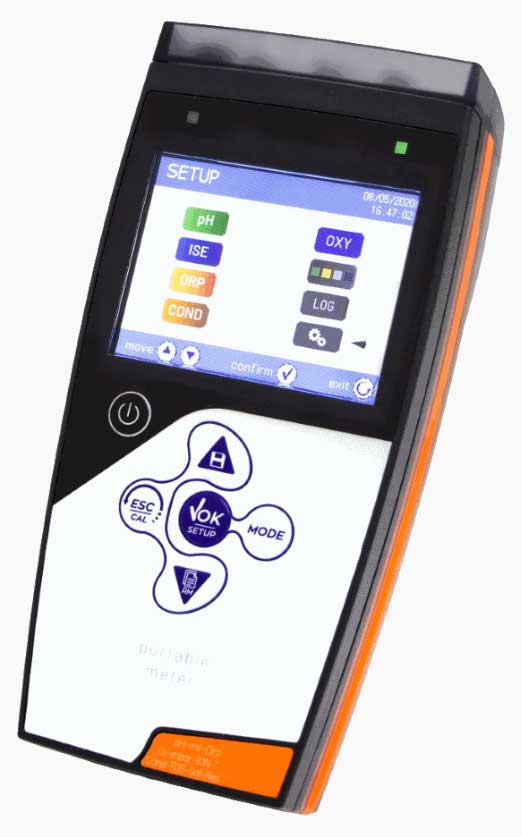

Portable multi-parameter instrument pH+OXY

Complete configuration with pH electrode and polarographic oxygen sensor

Professional portable multiparameter meter with triple power supply (battery, PC, mains) with backlit colour graphic display for excellent data display in all light conditions, thanks also to the possibility of automatically and manually adjusting display contrast and illumination.

  • Measurement of pH, mV, ORP, ISE, Conductivity, TDS, Salinity, Resistivity, Dissolved Oxygen and Temperature
  • On-line help in setup and calibration allows for simple and immediate use of the device
  • Simultaneous display of multiple parameters, operator's choice
  • Automatic pH calibration with US and NIST buffers up to 5 points and 5 user-defined points
  • Automatic ORP calibration 1 point
  • Automatic conductivity calibration up to 4 points and 1 user defined point
  • Adjustable reference temperature and selectable cell constant
  • Automatic O2 calibration up to two points (0% - 100%)
  • Indication of calibrated points with icons
  • AQA functions: date and time, calibration data display and calibration deadline setting
  • Manual and automatic data logger with possibility of data download to PC via micro USB
  • Free downloadable Data Link software
  • Measurement stability indicator and possibility to select 3 stability levels
  • All operations are constantly monitored and signalled to the operator via the coloured LED above the display and self-diagnostic messages

Measuring range

  • pH: -2,000…20,000 (0,001 pH)
  • mV: –2000…+2000 (0,1 mV)
  • ISE: 0.001…19999 ppm
  • Cond: 0,0 µS …1000 mS (0,1 µS - automatic)
  • Resistivity: 1 Ohm …10 MOhm
  • Salinity: 0,1 ppm ... 100 ppt
  • TDS: 0,1 mg/l…500,0 g/l
  • DO: 0,0…50 mg/l (0,01 / 0,1 mg/l)
  • Saturazion: 0,0…400 % (0,1 / 1 %)
  • Barometric pressure: 0…1100 mbar (1 mbar)
  • Temperature:-30…130,0 °C (0,1 °C)

Per ordinare

CodeDescription

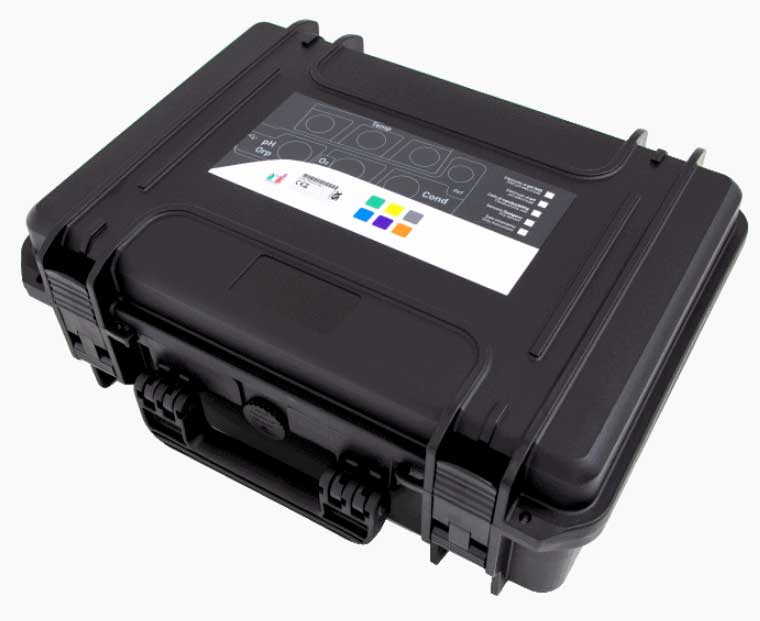

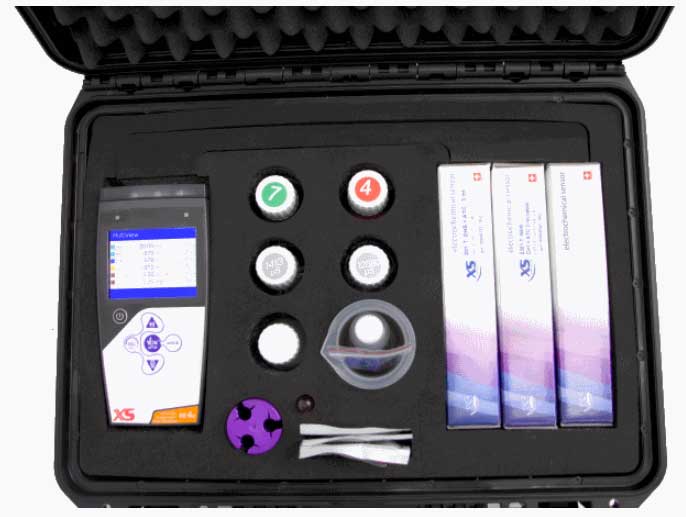

XS/5011/0922 Portable multi-parameter instrument - Configuration with pH electrode and polarographic oxygen sensor, both with built-in temperature sensor and 3 m fixed cable in hard case
