Portable multi-parameter instrument pH+OXY+COND

Complete configuration with pH electrode, conductivity cell and polarographic oxygen sensor

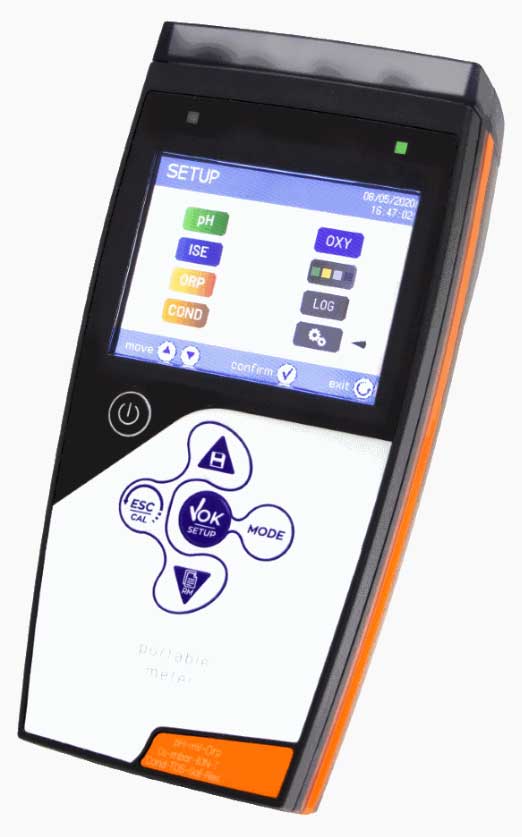

Professional portable multiparameter meter with triple power supply (battery, PC, mains) with backlit colour graphic display for excellent data display in all light conditions, thanks also to the possibility of automatically and manually adjusting display contrast and illumination.

  • Measures pH, mV, ORP, ISE, Conductivity, TDS, Salinity, Resistivity, Dissolved Oxygen and Temperature.
  • On-line help in setup and calibration allows easy and immediate use of the device.
  • Simultaneous display of several parameters at the operator's choice.
  • Automatic pH calibration with US and NIST buffers up to 5 points and user-defined 5 points.
  • Automatic ORP 1-point calibration.
  • Automatic conductivity calibration up to 4 points and 1 user-defined point.
  • Adjustable reference temperature and selectable cell constant.
  • Automatic O2 calibration up to two points (0% - 100%).
  • Indication of calibrated points with icons.

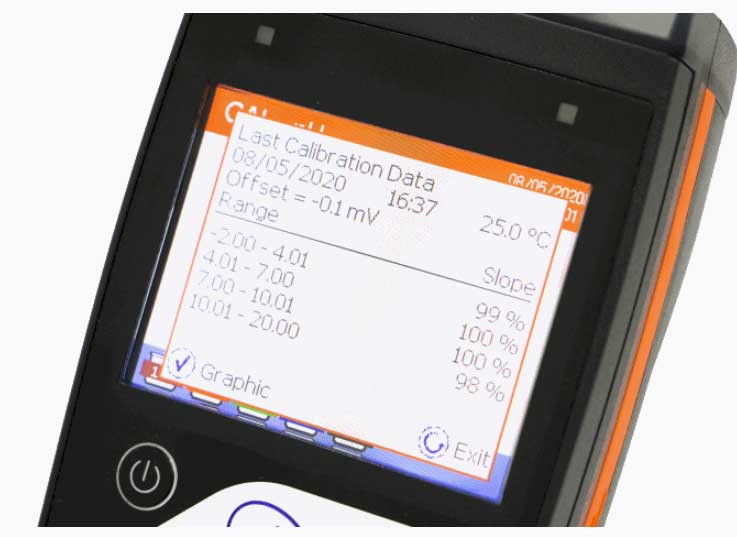

  • AQA functions: Date and time, calibration data display and calibration deadline setting.
  • Manual and automatic data logger with possibility of data download to PC via micro USB.
  • Data Link software can be downloaded free of charge
  • Measurement stability indicator and possibility of selecting 3 stability levels.
  • All operations are constantly monitored and signalled to the operator via the coloured LED above the display and self-diagnostic messages.

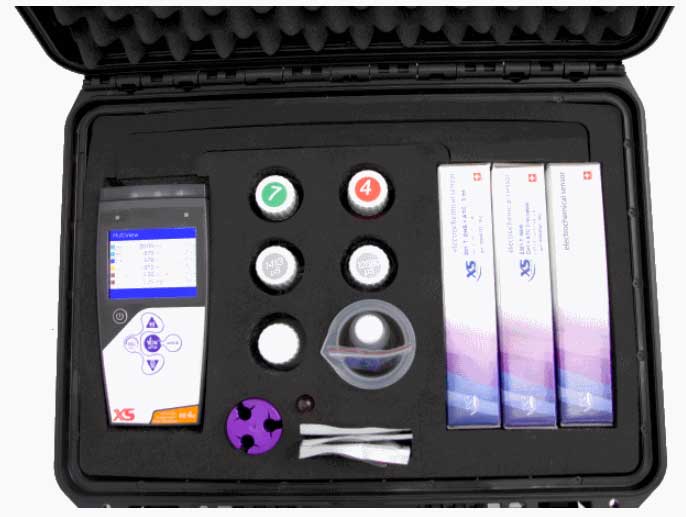

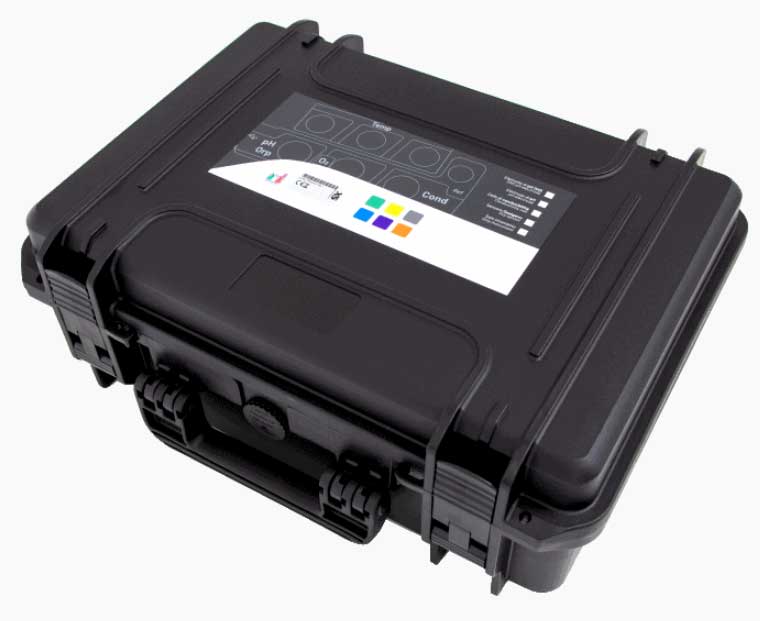

With standard electrode, conductivity cell and polarographic oxygen sensor, built-in temperature sensor and 3 m fixed cable, in hard case.


Measuring Range

  • pH: -2,000…20,000 (0,001 pH)
  • mV: –2000…+2000 (0,1 mV)
  • ISE: 0.001…19999 ppm
  • Cond: 0,0 µS …1000 mS (0,1 µS - automatic)
  • Resistivity: 1 Ohm …10 MOhm
  • Salinity: 0,1 ppm ... 100 ppt
  • TDS: 0,1 mg/l…500,0 g/l
  • DO: 0,0…50 mg/l (0,01 / 0,1 mg/l)
  • Saturazion: 0,0…400 % (0,1 / 1 %)
  • Barometric pressure: 0…1100 mbar (1 mbar)
  • Temperature:-30…130,0 °C (0,1 °C)

To order

CodeDescription
XS/5011/0912 Portable multi-parameter instrument - Configuration with pH electrode, conductivity cell and polarographic oxygen sensor, both with built-in temperature sensor and 3 m fixed cable in hard case

Technical specifications

  • Cond accuracy ± 1% f.s.
  • Accuracy DO 1.5 % f.s.
  • ISE accuracy 0.5 % f.s. / 1 % f.s.
  • Accuracy pH ±0.002 pH
  • Barometric pressure accuracy ±0.5 %.
  • Resistivity accuracy ±1 % f.s.
  • Salinity accuracy ±1 % f.s.
  • O2 saturation accuracy ±10 %.
  • TDS accuracy ±1 % f.s.
  • Temperature accuracy ±0.2 °C
  • Power supply 4 x AA 1.5 V alkaline batteries
  • Temperature calibration Yes
  • GLP calibration Yes
  • Temperature coefficient 0.00 ... 10,00 % / °C
  • DHS compatibility Yes
  • Automatic pressure compensation Yes
  • Salinity compensation Yes
  • Temperature compensation 0.0...100.0 °C
  • Ultra-pure water compensation Yes
  • Micro USB PC communication
  • Automatic brightness control Yes
  • Cell constant 0.1 / 1 / 10
  • Measurement stability criteria Low - Med - High (pH)
  • Description With electrode, cell and polarographic oxygen sensor, built-in temperature sensor and 3 m fixed cable, in hard case
  • Dimensions (W x D x H) 185 x 85 x 45 mm
  • High-definition, backlit TFT colour display
  • TDS factor 0.40 ... 1.00
  • Warranty 3 years
  • GLP Yes
  • Electrode status indication Yes
  • Inputs 3 pairs BNC - RCA - Banana 4 mm Ref
  • Languages selectable Eng - Ita - Deu - Esp - Fra - Cze
  • Memory 10,000 data
  • CE Standards
  • Parameters pH, mV, ORP, ISE, Conductivity, TDS, Salinity, Resistivity, Dissolved Oxygen, Temperature.
  • Password Yes, 4 numeric characters
  • Weight 0.45 kg
  • Calibration points Cond 1...4 automatic values / 1 custom value
  • Calibration points ION 2...5
  • Calibration points ORP 1
  • Calibration points pH 1...5 automatic values - 5 custom values
  • Cond measuring range 0.01 µS .... 1000 mS
  • Measuring range ISE 0.001 ppm ... 199999 ppm mg/l
  • Measuring range mV ORP -2000 ... +2000 mV
  • Measuring range Dissolved oxygen 0.00 ... 50.0 mg / l
  • Measuring range pH -2.00 ... +20.00 pH
  • Measuring range Barometric pressure 300 ... 1100 mbar
  • Measuring range Resistivity 1.00 Ohm*cm ... 10.00 MOhm*cm
  • Measuring range Salinity 0.01 ppt ... 100 ppt
  • Measuring range Dissolved O2 saturation 0.0 ... 400 %
  • Measuring range TDS 0.1 mg/l ... 500 g/l
  • Measuring range Temperature -30 ... +130,0 °C
  • Calibration report Yes
  • Cond resolution 0.01 / 0.1 / 1 µS/cm (automatic scale) µS/cm - mS/cm
  • DO resolution 0.01 mg/l
  • ORP resolution 0.1 / 1 mV
  • pH resolution 0.1 / 0.01 / 0.001 pH
  • Barometric pressure resolution 1 mbar
  • O2 saturation resolution 0.1 %.
  • Temperature resolution 0.1 °C
  • Alarm thresholds pH Si
  • Recognised buffers Cond 84 µS - 147 µS - 1413 µS - 12.88 mS - 111.8 mS
  • Recognised buffers pH USA - NIST - DIN 19266
  • Reference temperature +15 ... +30 °C
  • Calibration expiry timer with alarm Yes
  • Cell type 2 rings
  • Unit of measurement ION mg/l - g/l - mol/l
