Sample concentrator 1 block
Simultaneous action of gaseous flow and sample heating
The sample concentrator is used to concentrate samples in tubes of various sizes by taking advantage of the passage of a gaseous flow (nitrogen or air) over the surfaces of liquid samples in tubes of different sizes placed inside a thermoblock.
A flexible and versatile high-performance instrument that is a viable alternative to more traditional and time-consuming methods of solvent removal from solutions.
The instrument consists of a height-adjustable head that houses a series of needles into which air or gas flows, and the arrangement of which allows its use by adjusting its position according to the heating blocks used.
Fast and efficient, a simple connection to an air or gas line is all that is needed to operate the instrument.
Fields of application
- Molecular biology, to remove ethanol residues from delicate DNA and RNA samples
- Sample preparations for identification assays or in combinatorial chemistry
- Drug substance screening
- Hormone analysis
- Concentration of samples in liquid phase
- Sample analysis by total spectrometer
Characteristics
- Simultaneous action of gas or air flow through the needles and heating of the block resulting in accelerated evaporation of the liquid solvent with sample concentration
- The height of the needle plate can be adjusted
- Instrument can work under hood in case of concentration protocols with toxic solvents
- Built-in overheating protection function with automatic detection of noncompliance, immediate instrument shutdown and alarm signal
- LED display to show temperature and test time
| Code | MB/200/01N |
| Temperature range | R.T.+5℃ ~150℃ |
| Number of blocks | 1 |

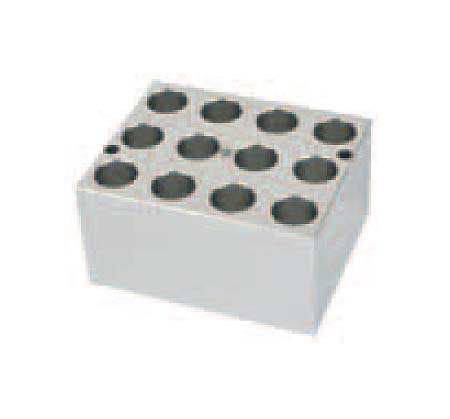

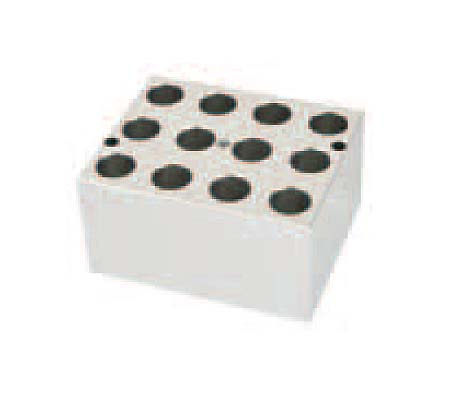

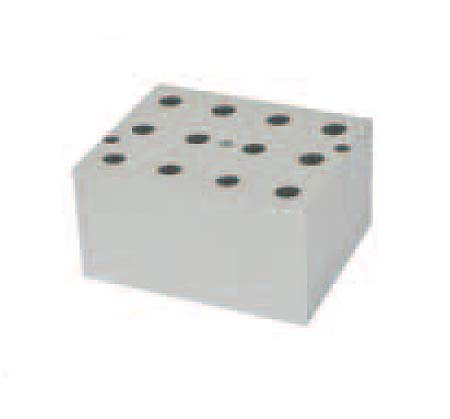

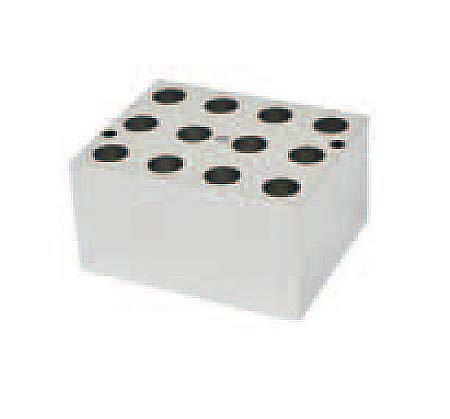

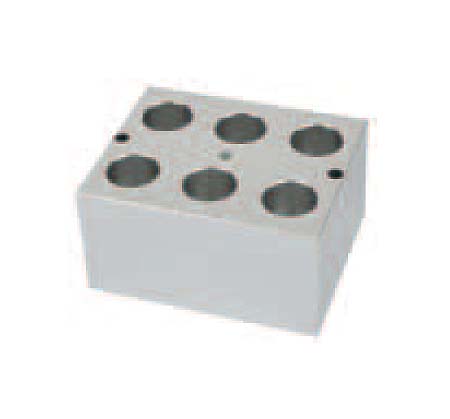

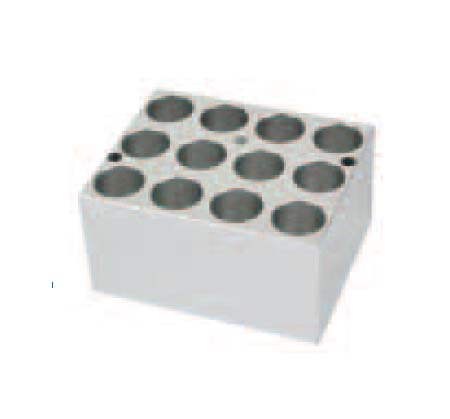

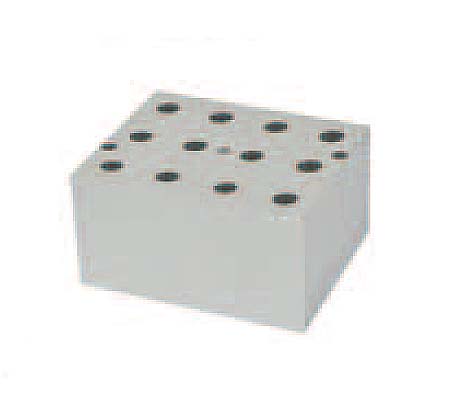

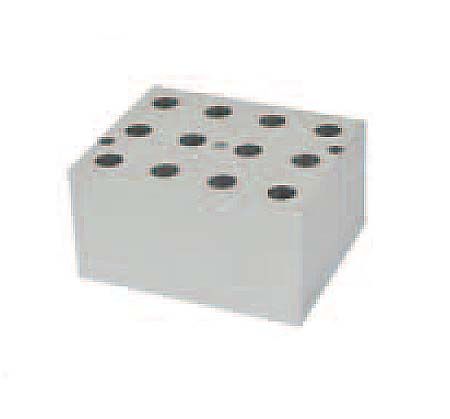

Configuration with interchangeable blocks (to be purchased separately)
Wide range of interchangeable blocks to meet any loading requirements of the most popular test tubes and microtubes of various sizes on the market
| Code | Holes # | Tubes diameter
Ø (mm) |
| MB/0DT/01A | 12 | 6 |
| MB/0DT/02A | 12 | 7 |
| MB/0DT/03A | 12 | 10 |
| MB/0DT/04A | 12 | 12 |
| MB/0DT/05A | 12 | 13 |
| MB/0DT/006 | 12 | 15 |
| MB/0DT/007 | 12 | 16 |
| MB/0DT/008 | 12 | 19 |
| MB/0DT/009 | 6 | 20 |
| MB/0DT/010 | 6 | 26 |
| MB/0DT/011 | 4 | 28 |
| MB/0DT/012 | 2 | 40 |
| MB/0DT/13A | 12 | 0,5 ml |
| MB/0DT/14A | 12 | 1,5 ml |
| MB/0DT/15A | 12 | 2,0 ml |
| MB/0DT/16A | 12 | 0,2 ml |
Gas flow regulating valve (optional)
| Code | Description |
| MB/NDK/0GV | Gas flow control valve |
