Concentrator visible blocks

Model with interchangeable blocks that allow the visibility of the sample

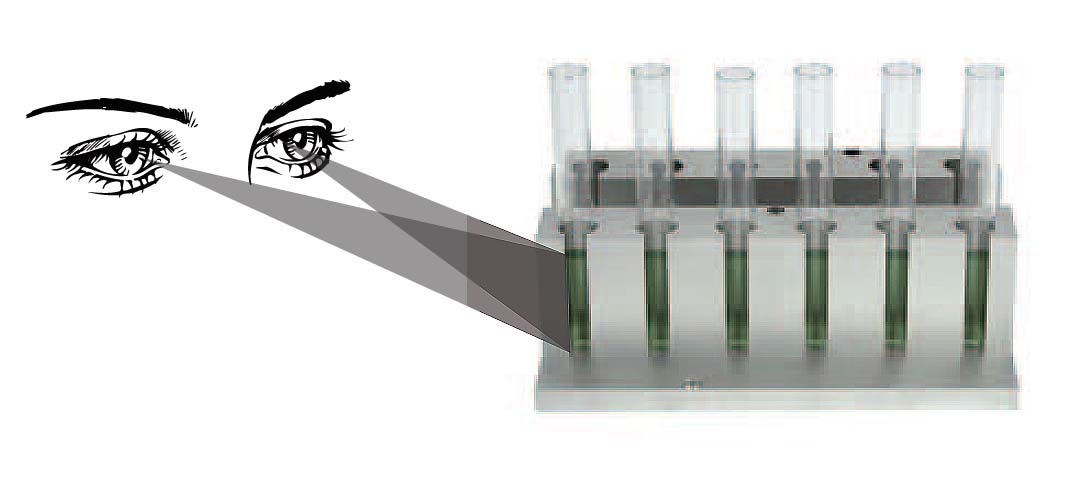

Concentrator configured with special interchangeable blocks for displaying sample status in tubes.

Nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation).

Working principle: the nitrogen into the heated surface of the sample and make the solvent  evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keep the sample purer.

Nitrogen concentrator instrument can concentrated dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument.

Features

  • Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration
  • The position of gas needle in air cavity can be adjusted to suit for different types of tubes
  • The height of the air cavity can be adjusted. The length of a standard gas needle is 150mm
  • Gas needle is controlled independently. Separately blow of each needle and flow regulating of each needle are available to avoid gas waste
  • The entire equipment can be put into ventilation cabinet when the concentration sample in toxic solvents
  • Built in overheat protection, automatic fault detection and fault beep alarm devices
  • LED display immediate temperature and diminishing time
  • Operation is simple and convenient
  • Standard configured air cavity and adjustable bracket

Technical specifications

Code MB/011/006
Temp. Control Range R.T.+5℃ ~150℃
Temp. Stability@40~100℃ ≤±0.5℃
Temp. Stability@100~150℃ ≤±1℃
Block Temp. Uniformity@100℃ ≤±0.5℃
Block Temp. Uniformity@150℃ ≤±1 ℃
Temp. Display Accuracy  0.1℃
Heating Speed ≤30 min (40℃ to 150℃)
Time Range  1 min ~99 h 59 min or continuous
Needle Plate Max. Lift Stroke 285 mm
Gas-in Joint Outer Diameter Ø 7 mm
Nitrogen Pressure ≤0.1 MPa
Nitrogen Flow Rate 0 ~10 L/min
 Needle Length 150mm
Sample Capacity 1 standard visible block
Voltage AC 220 V / AC 110 V, 50/60 Hz
Power 200 W
Dimension (WxDxH) 200 x 230 x 525mm
Net Weight
5,1 kg

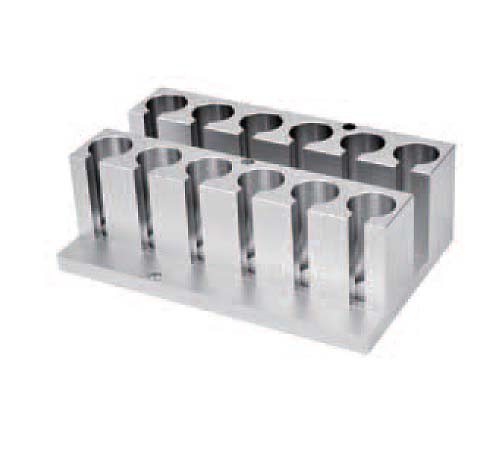

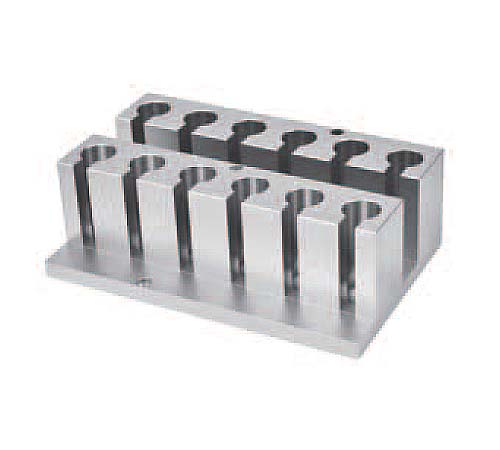

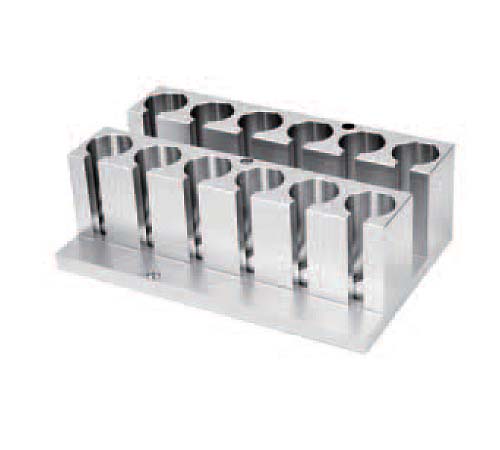

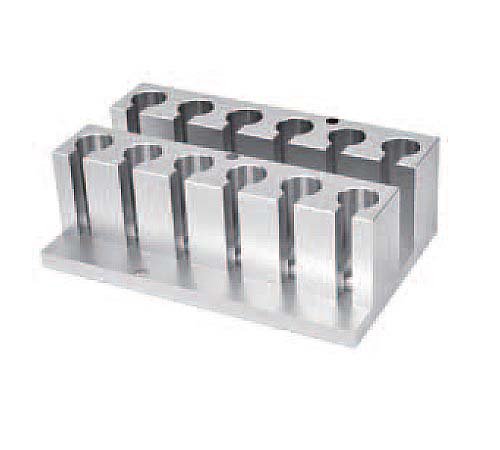

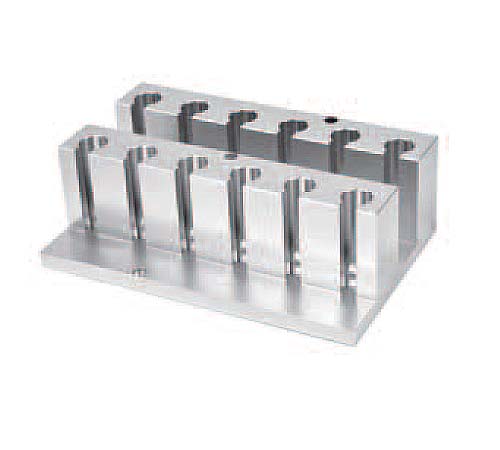

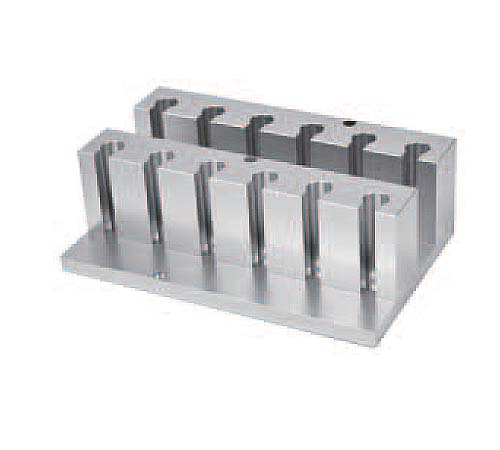

Optional visible interchangeable blocks

Code Holes #  Tube diameter  Ø (mm)
MB/011/026 12 10
MB/011/027 12 12
MB/011/028 12 13
MB/011/029 12 15
MB/011/030 12 16
MB/011/031 12 19
MB/011/032 12 20
