Sampling Pumps (PTFE/PP)

For taking and dispensing samples under difficult conditions

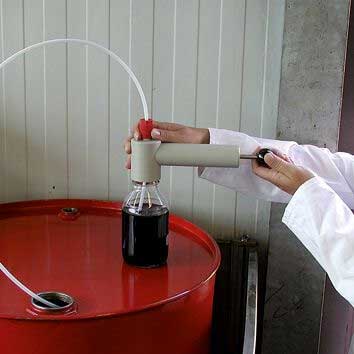

Made of PP/PTFE ideal for small manual sampling.

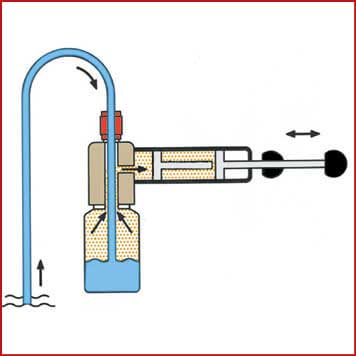

Pulling the ball handle produces a vacuum in the sampling bottle with sample suction.

Can be configured with glass or plastic bottles equipped with GL 45 threads.

This device offers universal chemical resistance since the sample is in contact with the PTFE tube only.

  • Compact construction and size
  • Can be used anywhere: portable and requires no electrical or pneumatic power supply
  • Extreme maneuverability
  • Rapid, low-risk pumping of ultrapure liquids
  • Requires no cleaning: only the PTFE tube comes into contact with the product
  • Stroke volume 50 ml
  • For tubes with an O.D. diameter of 6 mm
  • PTFE tubing supplied with a length of 2 m
  • Temperature range -10°C to +90°C

Ideal for sampling liquids from sources not easily accessible; also suitable for liquids of high viscosity, such as oils.


To order

CodeDescription
BH/A11/924Mini manual vacuum pump (PTFE/PP) volume range 100÷2000 ml
