Ultrasonic processors SN Series with anti-noise box
Sonicator 450 W range volume 10÷300 ml complete configuration

€ 7,228.83
iva esc.

Ultrasonic processors SN Series with anti-noise box
Probe Ø 10 mm range volume 5÷250 ml

€ 772.38
iva esc.

Ultrasonic processors SN Series with anti-noise box
Probe Ø 16 mm range volume 20÷500 ml

€ 834.48
iva esc.

Sonicator 450 W / 10÷300 ml

Complete configuration with anti-noise box, probe Ø 13 mm, software, temperature probe

Ultrasonic Processor Model FS/000450/N

Supplied

Ultrasonic disintegrator FS/000450/N

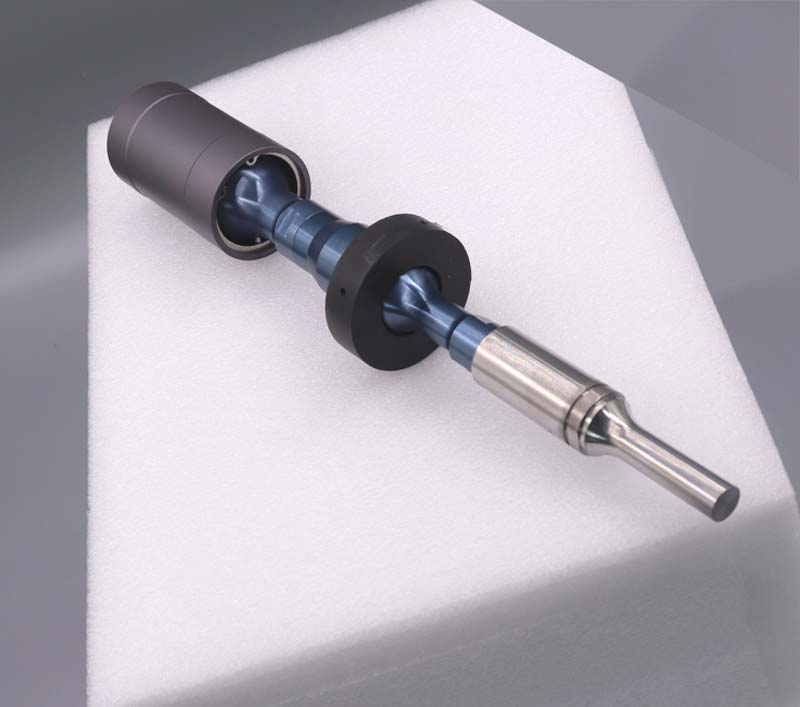

Probe Ø 13 mm (range volume 10÷300 ml)*
Noise insulation box
Lift table
Temperature probe
Software

* Also available Ø 10 (5÷ 250 ml) and Ø 16 mm (20 ÷500 ml) optional probes

Major Functions

Auto-tuning for convenience of use and optimal processing efficiency
99h total working time controller, 1s – 99h, count-down time display
Working time can be displayed as aggregate number
On/off impulse timer: make sure to deal with temperature sensitive sample. On and off can be set from 1s to 99min
Automatic amplitude compensation to make the amplitude not changed following the carring
All the function can be displayed in the large LCD screen , operation easy, Fully microprocessor controlled and completely programmable
Configuration : temperature probe , temperature display and protection when the temperature is over limition

Common applications

Mixing, blending, emulsifying, and processing solutions
Reducing particle size of suspensions
Dispersing suspensions
Disrupting cells
Catalyzing chemical reaction

Technical parameters

Model: FS/000450/N
Output Power: 450 W
Net weight: 4.5 Kg
Frequency: 20 KHz
Timer: LED 1s – 99 hours adjustable
Power adjustable: 0%--100%
Impulse : number closed loop, open loop: set: 1s-99 min
Piezoelectric frequency energy converter: CV33, Lead zirconate titanate (PZT) pyroelectric ceramics
Converter dimensions: Diameter: 63 mm Length:165 mm Weight: 650 g Length of cable: 150 cm
Standard probe: titanium alloy material TI-6AL-4V
Diameter(probe): 13 mm (can also choose 3/6/8/10/12 mm)
Processing volume: 10 ÷300 ml with the standard probe included
Total length:139 mm weight: 370 g
Temperture sensor:0--300°C
Power Supply:220V 50Hz
Free accessofies: ABS Plastic soundproof box / A stainless steel lifting platform included
