pH/mV/°C Meter
Portable pH/mV meter designed to be accurate, reliable and easy to use
HN/008314 - Analog pH/mV/°C Meter with HN/01217D Electrode
The HN/008314 is a portable pH/mV meter designed to be accurate, reliable and easy to use.
The HN/008314 uses the HN/01217D pre-amplified pH electrode with built-in internal temperature sensor.
Save on calibration solutions when you bundle!
- Automatic Temperature Compensation (ATC)
- Two-point Calibration
- Compact, heavy-duty, and waterproof protected casing
Details
Manual calibration is performed at one or two points by adjusting the trimmers on the front panel.
Capable of measuring pH/mV and °C, this meter are great for field work, providing one meter for multiple uses.
This instrument is ideal for applications that require a custom calibration point.
Manual calibration can be extremely useful in order to achieve better accuracy.
This meter can also be used for ORP measurements with the optional probes below: HN/03618D or HN/04619D
pH
pH Range |
0.00 to 14.00 pH |
pH Resolution |
0.01 pH |
pH Accuracy |
±0.01 pH |
pH Calibration |
manual, two-point, via trimmers |
pH Temperature Compensation |
automatic, 0 to 70°C (32 to 158 °F) |
pH Input impedence |
1012 Ohm |
mV
mV Range |
±1999 mV |
mV Resolution |
1 mV |
mV Accuracy |
±1 mV |
Meter Temperature
Temperature Range |
0.0 to 100.0°C |
Temperature Resolution |
0.1°C |
Temperature Accuracy |
±0.4°C |
General Meter
pH Electrode |
HN/01217D PEI body, preamplified pH electrode with internal temperature sensor, DIN connector and 1 m cable (included) |
Slope/Offset Calibration |
from 80 to 110%/±1 pH |
Battery Type / Life |
9V / approximately 100 hours of continuous use |
Environment |
0 to 50°C (32 to 122°F); RH max 100% |
Dimensions |
145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) |
Weight |
230 g (8.1 oz.) |
Ordering Information |

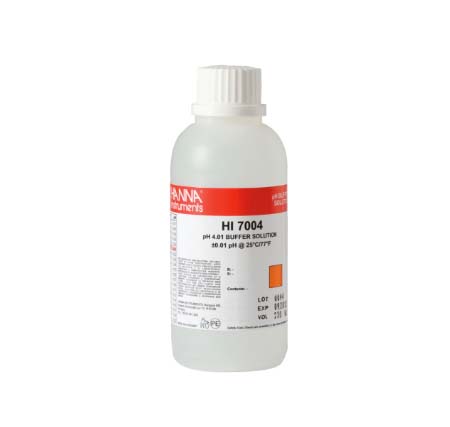

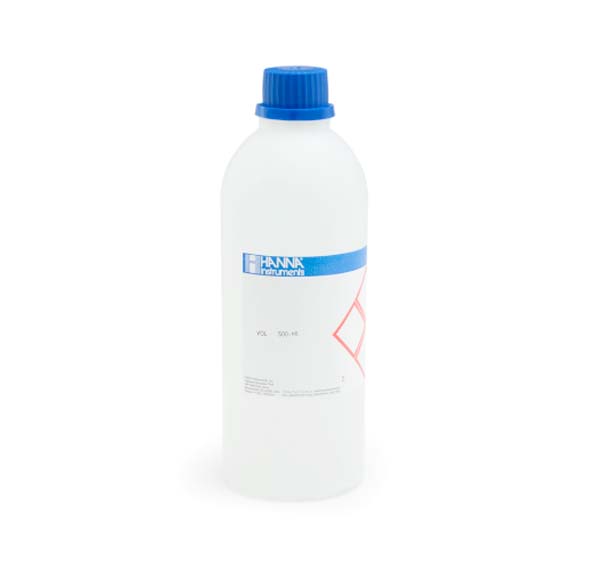

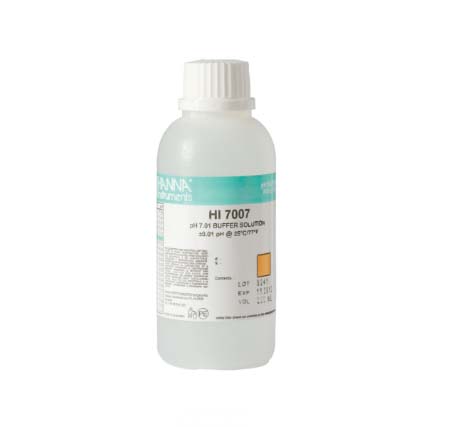

HN/008314 is supplied with HN/01217D pH electrode, HN/070004 pH 4.01 buffer solution sachet, HN/070007 pH 7.01 buffer solution sachet, HN/0700601 electrode cleaning solution sachets (2), calibration screwdriver, battery, protective case and instructions. |
