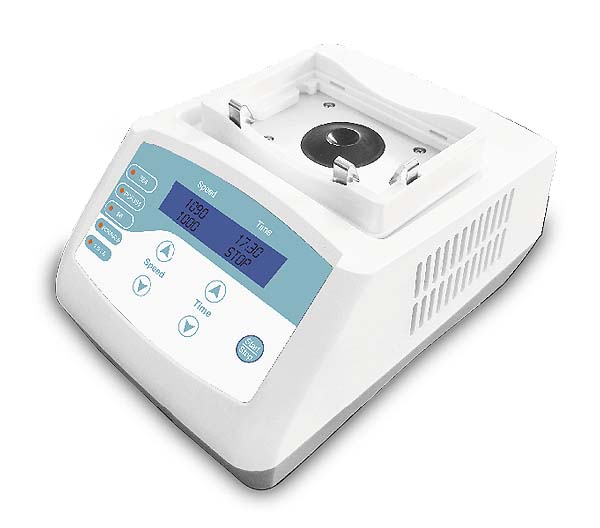

Mixer 300÷3.000 rpm
Vortex/mixer with interchangeable blocks
This model is a compact mixer with a high efficiency, multiple functions.
It integrates design principle of mixing and shaking with intelligent operation and can be applied to a variety of mixing and vortex shaking operation.
It not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies ,but also equips the function of votexing all kinds of tubes.
Unique design principle, which combines mixing and shaking with intelligent operation make the operation simpler, safe, and convenient.
The excellent radius and dimensional technology blend in with adjustable mixing speed ensure fast and perfect experiment.
Applications
- Preparation of PCR reaction system
- Precipitation suspension ( such as bacteria, DNA, cell culture precipitation)
- Incubation ( ELISA enzyme immunoassay analyzer
- Protein staining quantitative ( such as Bradford, Lowry, BCA)
- Report gene assays ( such asβ-galactosidase, luciferase analysis
- Premixed reaction system
- Mixing various kind of tubes
Load capacity of blocks
- PCR plates (skirted, semi skirted,unskirted)
- 384 hole PCR plate
- 96- and 384- deepwell plates
- MTP miceroplate,ELISA plate
- 0.2 ml PCR tubes and PCR strip
- 0.5 ml Micro-test tube
- 1.5 ml Micro-test tube
- 2.0 ml Micro-test tube
Technical specification
| Code |
MB/010/015 |
| Speed range |
300÷3.000 rpm |
| Shaking orbit |
Ø 3 mm |
| Timer |
1s ~99h59min or continuous / touch vortex |
| Working noise |
<50 dB |
| Voltage |
AC 100 ~230V, 50/60Hz |
| Power |
45 W |
| Dimensions |
196×270×170 mm |
| Net weight |
7,7 kg |
Three tube-stands - Configurated
Remarks: 384 - well PCR plates,microplates, deep well plates
can be directly put into the stand without stand support.
The three tube stands are included in the equipment of the mixer.
| Code |
Description |
| MB/010/015 |
96x0.2ml tube stand.
Applied to 0.2ml PCR tubes, PCR strips and 96-well PCR plates(semi-skirted and unskirted ) |
| MB/010/016 |
24x0.5ml Tube stand |
| MB/010/017 |
24x1.5/2.0ml Tube stand |
