Multiple vortex mixer
Digital multi tube vortexer with microprocessor & brushless motor
Multiple Vortex shaker, digital model with wide range of interchangeable holders to accommodate different volume ranges of test tubes.
Instrument features.
- Model with control panel and digital display, with continuous adjustment of stirring frequency and display of test parameters (timer and rpm)
- Microprocessor control for accurate rpm selection independent of load capacity
- Simple and compact design for a stable and safe instrument
- LED display on control panel with simple and intuitive operation
- Quiet operation even at high speed
- Wide orbital stirring orbit; allows a range of stirring from mild to vigorous for any protocol requiring multiple and simultaneous stirring of many samples

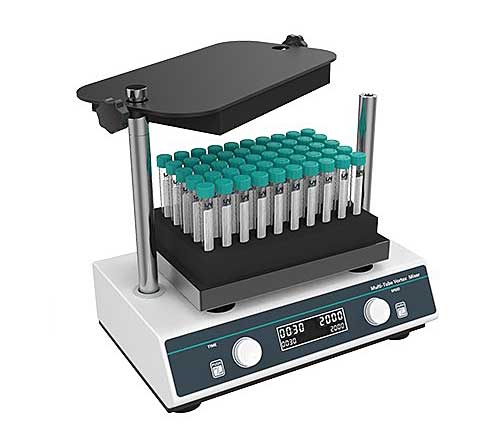

- Configured with reversible holders that can accommodate a wide range of tubes of different capacities and shapes up to a maximum of 50 samples at a time for standard tubes and 72 samples for microtubes
- Supports are made of non-rigid "EVA Foam" material to allow the insertion of test tubes of varying diameters
- Equipped with feet that determine great stability by attenuating vibration on the workbench
- The control panel has two speed and test time adjustment knobs displayed on two independent digital LED displays
Large capacity: this instrument allows simultaneous processing of a high number of samples increasing laboratory productivity compared to simple vortex
Two modes of operation: "touch mode" allows you to operate the vibration by simply pressing the start button and stop it by releasing it. The second mode is in continuous mode and involves light pressure to adjust the speed with the knob for both time and speed. After selecting the two test parameters you start the instrument with the start button and it works automatically for the programmed time.
The "brushless" induction motor is virtually unlimited life, brushless, wear-free and maintenance-free. Powerful, quiet, with great torque power and a stable start, it responds to a microprocessor control ensuring high accuracy of speed setting.
Acceleration is gradual, allowing the instrument to build up to its full speed without stressing the load, preventing splashing and tipping.

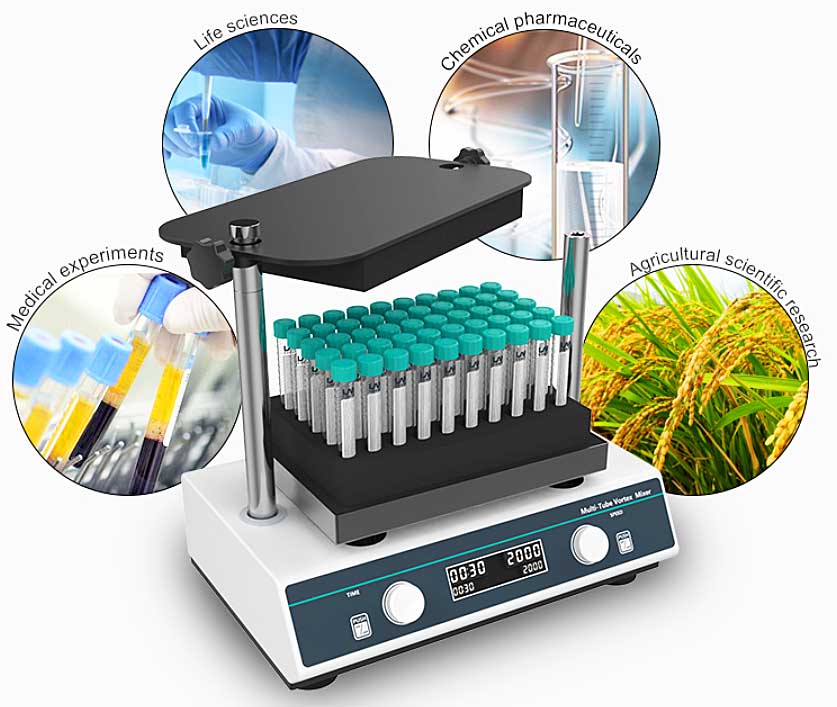

The use of the instrument is virtually unlimited, for all protocols requiring vigorous mixing of samples with the advantage of high throughput and simultaneous work of dozens of tubes. In the life sciences, chemical and pharmaceutical fields, agriculture and scientific research in general, this instrument will meet any experimental need.
Technical specifications
| Model | Digital |
| Speed range | 500÷3.000 rpm |
| Amplitude | 4 mm |
| Timer | 1 min / 24 h |
| Max load capacity | 4,5 kg |
| Power | 100 W |
| Dimensions | 420×280×335 mm |
To order
| Code | Description |
| JL/0VM/800 | Multiple vortex agitator
|
Supports provided
| Code | Description |
| JL/0VM/801 | Test tube holder Ø 9÷10 mm / 50 holes |
| JL/0VM/802 | Test tube holder Ø 11÷13 mm / 50 holes |
| JL/0VM/803 | Test tube holder 1,5/2 ml / 72 holes |
| JL/0VM/804 | Test tube holder Ø 18÷21 mm / 50 holes |
| JL/0VM/805 | Test tube holder Ø 24÷27 mm / 15 holes |
| JL/0VM/806 | Test tube holder Ø 28÷32 mm / 15 holes |
