Multiple vortex mixer

Digital multi tube vortexer with microprocessor & brushless motor

Heavy duty vortex mixer with large capacity for high throughput laboratory

Features

Brushless DC motor for quiet operation and maintenance free long operation
Microprocessor controlled unit with digital display
Adjustable speed ranging from 300÷2.500 rpm with increment of 1 rpm and accuracy of +/- 5 rpm with option of electing clockwise (CW) and counterclockwise (CCW) motion
Long timer setting from 1 to 999 mins & infinite mode
Programmable "pulse" with selection of variable time 30÷99 seconds
Power overload feature in wich if the equipment consumes more power than its capacity. it automatically shuts down
Supplied with all four foam base attachments

	Microprocessor controlled unit with digital display.
	Brushless DC motor for quiet operation and maintenance free long operation.
	Digital display
	Programmable Pulse with selection of variable time 30-99 seconds.

Attachments included

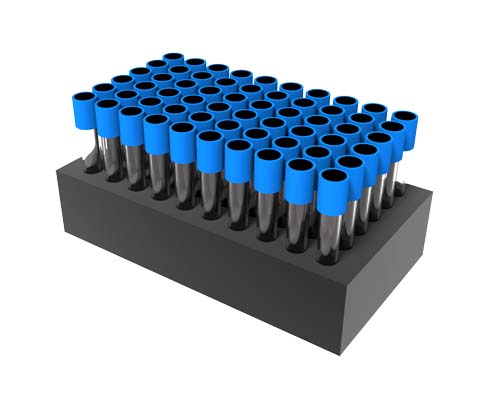

	7 ml tube foam to accommodate 60 tubes

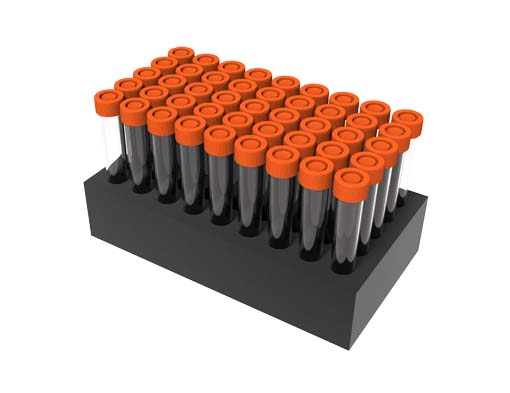

	15 ml tube foam to accommodate 45 tubes

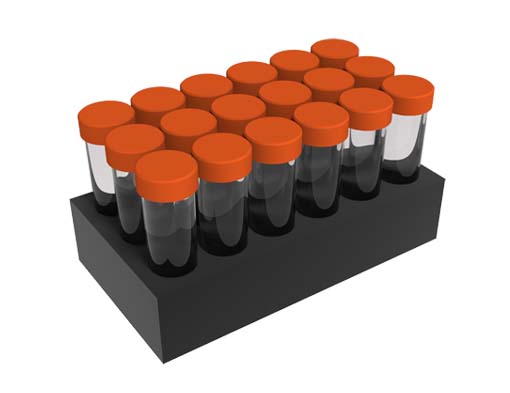

	50 ml tube foam to accommodate 18 tubes

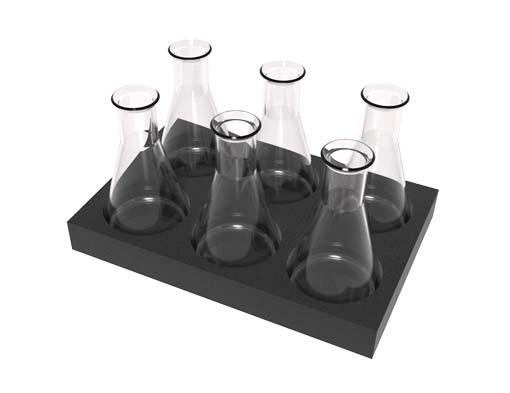

	250 ml flask foam to accommodate 6 flasks

Technical specifications

Code	NT/SWI/XMV
Digital display	YES
Variable speed	300÷2.500 rpm
Motor type	BLDC
Run time	1÷999 mins & infinite
Motion type	Clockwise (CV) and Counterclockwise (CCW) motion
"Pulse" mode	Programmable pulse with selection of variable time 30÷99 seconds
Weight	18 kg
Input voltage	24 V
Power consumption	75 W
Protection class	IP 21
