Vacuum aspiration system

Complete configuration of a wide range of accessories

Complete aspiration system with integrated vacuum pump, ideal for protocols requiring separation and filtration of culture fluids and cell tissues after culture protocols in biochemical sciences, for extraction and separation of waste fluids from cell cultures and aspiration of any other fluid system in the laboratory with maximum simplicity and speed.

Equipped with non-contact liquid level sensor that can electronically control the fluid level in the collection bottle with flow interruption in case of overflow.

The suction flow rate and vacuum level are therefore adjustable from the highly accurate touch screen panel to ensure sensitive and reproducible operation.

This compact and economical instrument is configured with numerous accessories and is ideal for a wide range of routine laboratory applications.

  • Compact design
  • Integrated vacuum pump
  • Adjustable vacuum degree
  • Safe and accurate suction
  • Non-contact sensor for liquid level monitoring

Technical specifications

DisplayTouch screen
Flow range14 ml/sec
Vacuum range-30 mbar ÷ -750 mbar
Integrated pumpPiston oil free
Dimensions150x150x250 mm
Weight2,5 kg
Power supply230 V / 50 Hz

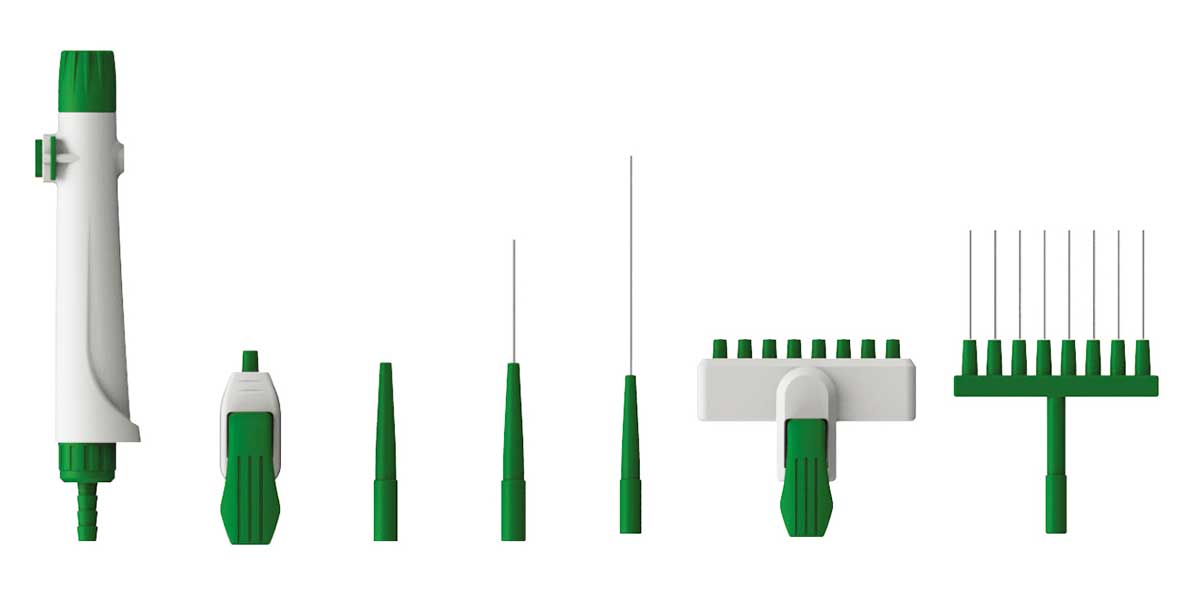

Supplied accessories.

CodeDescription
TP/0801/1700-11L glass bottle
TP/0801/1700-20.5L glass bottle
TP/0801/1700-3Single channel stainless steel fine tip (40mm)
TP/0801/1700-4Single channel stainless steel fine tip (80mm)
TP/0801/1700-5Single channel adapter
TP/0801/1700-6Eight channel adapter for  200μl pipette tips
TP/0801/1700-7Eight channel stainless steel fine tip
TP/0801/1700-8Handheld vaccum controller
TP/0801/1700-9Hydrophobic filter

To order

CodeDescription
TP/0801/1700Vacuum aspiration system complete configuration of all accessories
