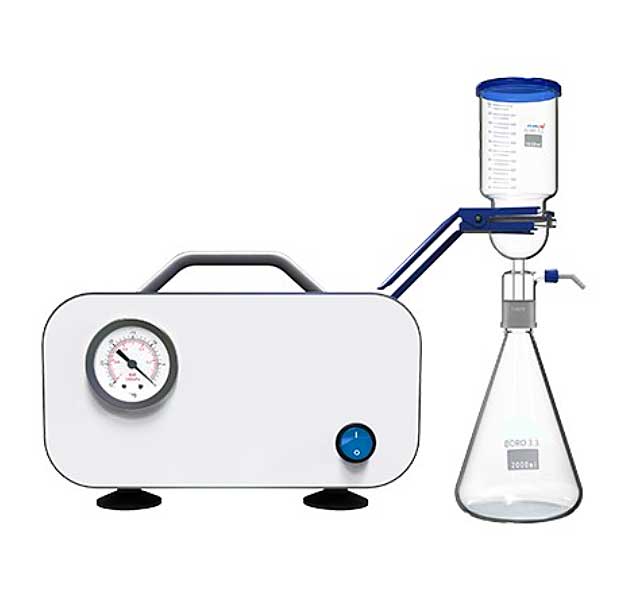

Vacuum pump 15 l/min / 0.080 Mpa

Negative pressure model with built-in pressure gauge

“Oil-free” laboratory diaphragm pump ideal for all applications requiring vacuum generation.

Model with backlit ignition
Built-in overheating and short-circuit protection devices
Built-in pressure gauge for real-time display of vacuum status with high accuracy
Fixed flow rate model
Compact and space-saving on the workbench
Negative pressure instrument

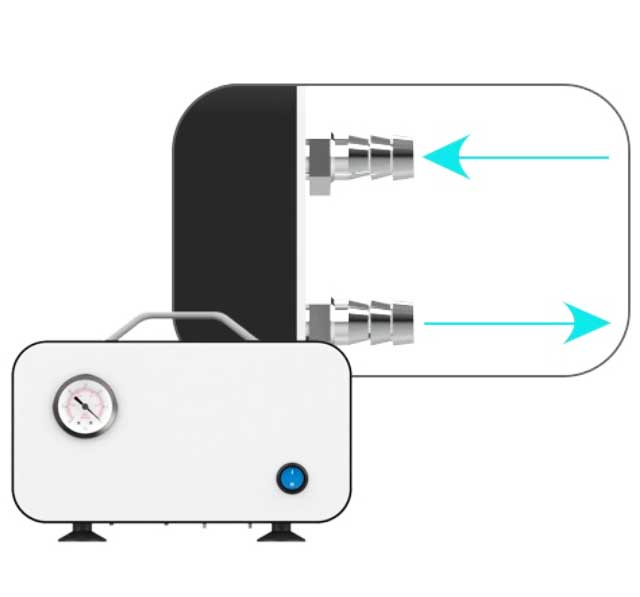

Standard delivery and suction connections

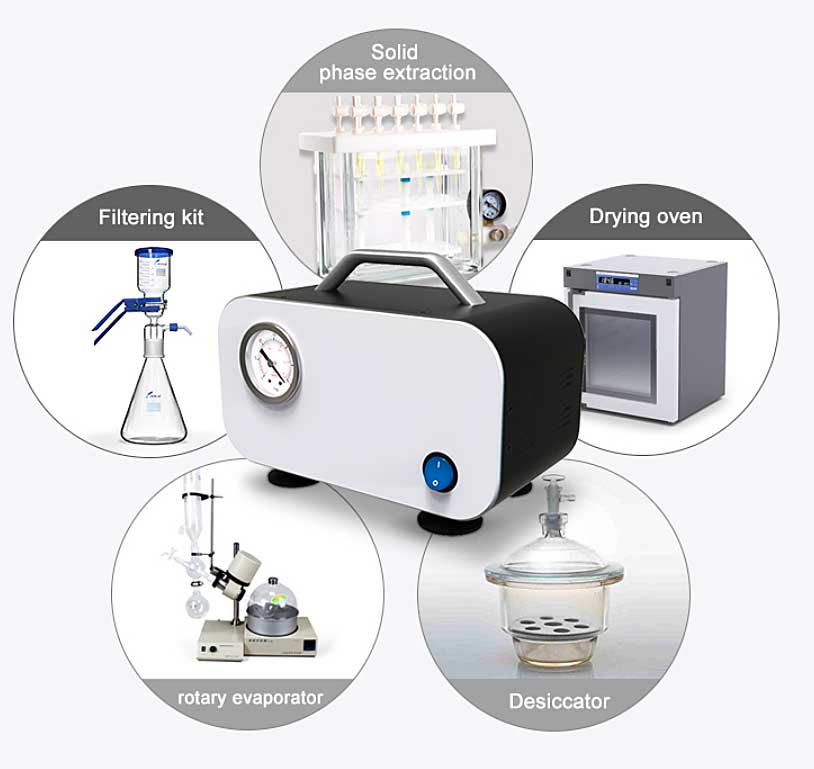

Ideal for a wide range of applications from connection with vacuum filter systems, to solid phase extraction with SPE columns, to connection with dryers and rotary evaporators

Dati tecnici

Model	Negative pressure
Flow rate	15 l/min (fixed)
Ultimate vacuum	0,080 Mpa
Noise level	<45 Db
Motor power	30 W
Materiale diaphragm and valves	NBR
Overload protection	YES
Over temperature protection	YES
Short circuit protection	YES
Dimensions	192×100×135 mm
Weight	1,58 kg

To order

Code	Description
JL/022/921	Laboratory vacuum pump 15 l/min / 0,080 Mpa
